Name: Front Seats
Rating: 5.0 (1 reviews)

View All

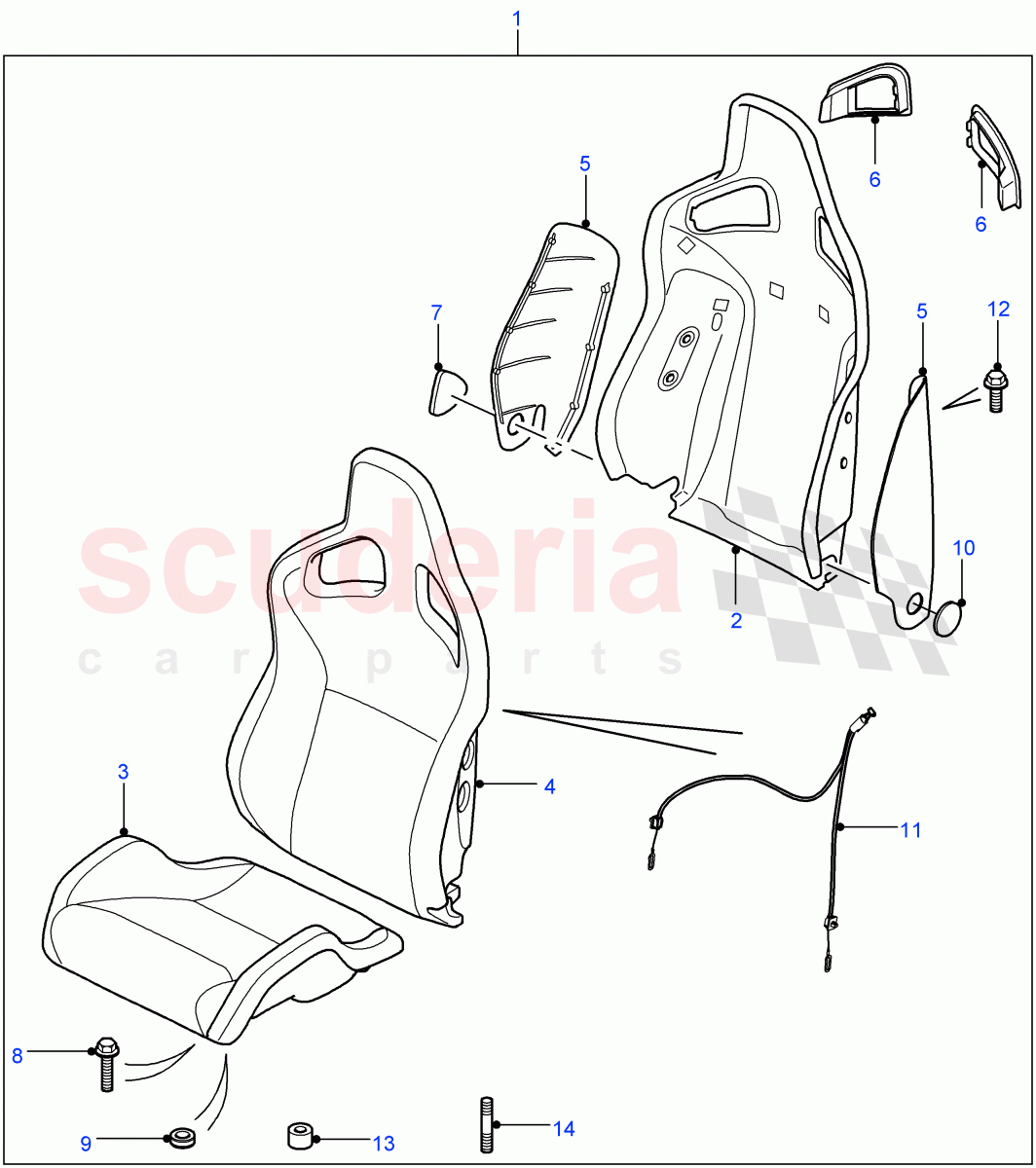

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR010116	PANEL - SEAT BACK	$646.63	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010115	CUSHION - SEAT	$3,857.72	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010121	HANDWHEEL - RECLINING MECHANISM	$39.56	To Order

Photo	Part No	Description	Price (each)	Stock
	FS108405	SCREW	$1.21	To Order

Photo	Part No	Description	Price (each)	Stock
	HYF500090	WASHER	$0.43	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012461	COVER - SEAT ADJUSTER	$12.12	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012462	CABLE - SEAT BACK LATCH RELEASE	$75.37	To Order
	LR012463	CABLE - SEAT BACK LATCH RELEASE	$75.37	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012474	SCREW	$5.44	To Order

Photo	Part No	Description	Price (each)	Stock
	LR009826	SPACER	$9.09	To Order

Photo	Part No	Description	Price (each)	Stock
	TE108065L	STUD	$4.73	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	LR009165	SEAT	LR009165 SEAT RH, Recaro	$9,582.40	1
1	LR009166	SEAT	LR009166 SEAT LH, Recaro	$9,126.11	1
2	LR010116	PANEL - SEAT BACK	LR010116 PANEL - SEAT BACK Seat Back	$646.63	2
3	LR010115	CUSHION - SEAT	LR010115 CUSHION - SEAT	$3,857.72	1
4	LR010113	COVER AND PAD - FRONT SEAT BACK	LR010113 COVER AND PAD - FRONT SEAT BACK LH	$3,347.61	1
4	LR010114	COVER AND PAD - FRONT SEAT BACK	LR010114 COVER AND PAD - FRONT SEAT BACK RH	$3,347.61	1
5	LR010117	COVER - STRIKER	LR010117 COVER - STRIKER LH	$101.68	1
5	LR010118	COVER - STRIKER	LR010118 COVER - STRIKER RH	$101.68	1
6	LR010119	COVER	LR010119 COVER RH, Belt Guide	$56.61	1
6	LR010120	COVER	LR010120 COVER LH, Belt Guide	$56.61	1
7	LR010121	HANDWHEEL - RECLINING MECHANISM	LR010121 HANDWHEEL - RECLINING MECHANISM	$39.56	1
8	FS108405	SCREW	FS108405 SCREW M8 x 40	$1.21	4
9	HYF500090	WASHER	HYF500090 WASHER M8	$0.43	8
10	LR012461	COVER - SEAT ADJUSTER	LR012461 COVER - SEAT ADJUSTER Handwheel-front seat squab manual recline mechanism	$12.12	1
11	LR012462	CABLE - SEAT BACK LATCH RELEASE	LR012462 CABLE - SEAT BACK LATCH RELEASE RH	$75.37	1
11	LR012463	CABLE - SEAT BACK LATCH RELEASE	LR012463 CABLE - SEAT BACK LATCH RELEASE LH	$75.37	1
12	LR012474	SCREW	LR012474 SCREW	$5.44	14
13	LR009826	SPACER	LR009826 SPACER	$9.09	4
14	TE108065L	STUD	TE108065L STUD	$4.73	2

Front Seats

Land Rover Defender (2007-2016)
