Name: Air Vents, Louvres And Ducts (Internal Components, 1st Row)
Rating: 4.9 (1 reviews)

View All

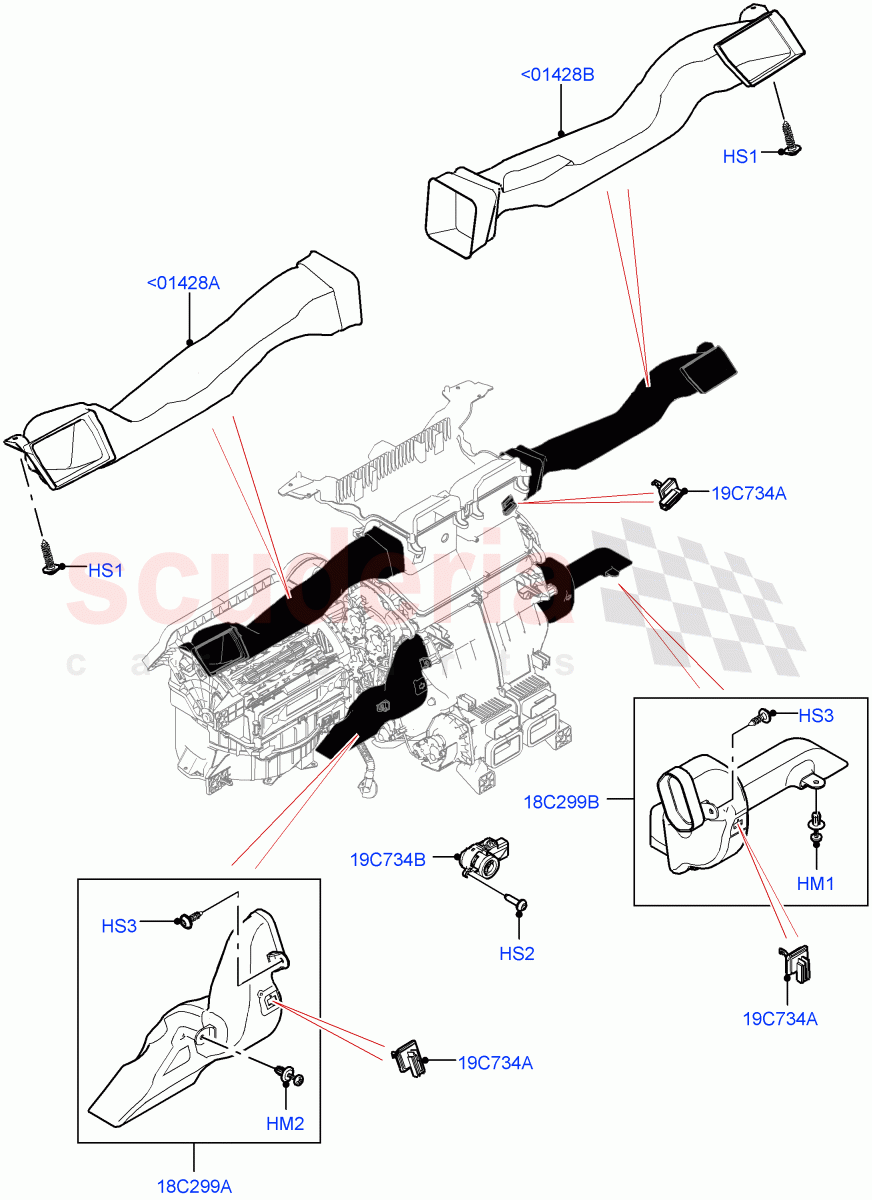

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR131781	PIN - RETAINING	$1.42	To Order

Photo	Part No	Description	Price (each)	Stock
	LR133505	PIN - RETAINING	$0.96	To Order

Photo	Part No	Description	Price (each)	Stock
	LR007312	SCREW 4.2 X 19	$0.74	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR101428	SCREW	$1.69	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYP500770	SCREW	$0.62	To Order

Photo	Part No	Description	Price (each)	Stock
	LR132273	DUCT - AIR VENT	$63.09	To Order

Photo	Part No	Description	Price (each)	Stock
	LR132271	DUCT - AIR VENT	$65.43	To Order

Photo	Part No	Description	Price (each)	Stock
	LR041044	SENSOR - HEATER TEMPERATURE CONTROL	$19.34	To Order

Photo	Part No	Description	Price (each)	Stock
	LR062233	SENSOR - HEATER TEMPERATURE CONTROL	$83.04	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<01428A	LR132273	DUCT - AIR VENT	LR132273 DUCT - AIR VENT LH Upper	$63.09	1
<01428B	LR132271	DUCT - AIR VENT	LR132271 DUCT - AIR VENT RH Upper	$65.43	1
HM1	LR131781	PIN - RETAINING	LR131781 PIN - RETAINING 6.25 x 1.6/6MM	$1.42	1
HM2	LR133505	PIN - RETAINING	LR133505 PIN - RETAINING 5.0 x 3.8/6 mm	$0.96	1
HS1	LR007312	SCREW 4.2 X 19 IN STOCK	LR007312 SCREW 4.2 X 19 4.2 X 19MM IN STOCK	$0.74	2
HS2	LR101428	SCREW IN STOCK	LR101428 SCREW 4 X 16MM IN STOCK	$1.69	2
HS3	RYP500770	SCREW	RYP500770 SCREW 5 X 16MM, Torx	$0.62	2
18C299A	LR035924	DUCT - HEATER OUTLET	LR035924 DUCT - HEATER OUTLET RHD / LH Lower	$42.49	1
18C299A	LR139517	DUCT - HEATER OUTLET	LR139517 DUCT - HEATER OUTLET LHD / LH Lower	$43.02	1
18C299B	LR035925	DUCT - HEATER OUTLET	LR035925 DUCT - HEATER OUTLET RHD / RH Lower	$42.73	1
18C299B	LR139519	DUCT - HEATER OUTLET	LR139519 DUCT - HEATER OUTLET LHD / RH Lower	$35.69	1
19C734A	LR041044	SENSOR - HEATER TEMPERATURE CONTROL	LR041044 SENSOR - HEATER TEMPERATURE CONTROL Attached To Air Ducts	$19.34	4
19C734B	LR062233	SENSOR - HEATER TEMPERATURE CONTROL	LR062233 SENSOR - HEATER TEMPERATURE CONTROL Located In Instrument Panel	$83.04	1

Air Vents, Louvres And Ducts (Internal Components, 1St Row)

Land Rover Defender (2020+) [3.0 I6 Turbo Petrol AJ20P6]
