Air Conditioning System (3.0L AJ20P6 Petrol High, RHD, With Air Conditioning - Front/Rear, 2.0L I4 High DOHC AJ200 Petrol, With Front Comfort Air Con (IHKA), 2.0L I4 DSL HIGH DOHC AJ200, 3.0L AJ20D6 Diesel High) of Land Rover Land Rover Defender (2020+) [3.0 I6 Turbo Petrol AJ20P6]

View All

Land Rover Defender (2020+) [3.0 I6 Turbo Petrol AJ20P6] - Air Conditioning System (3.0L AJ20P6 Petrol High, RHD, With Air Conditioning - Front/Rear, 2.0L I4...

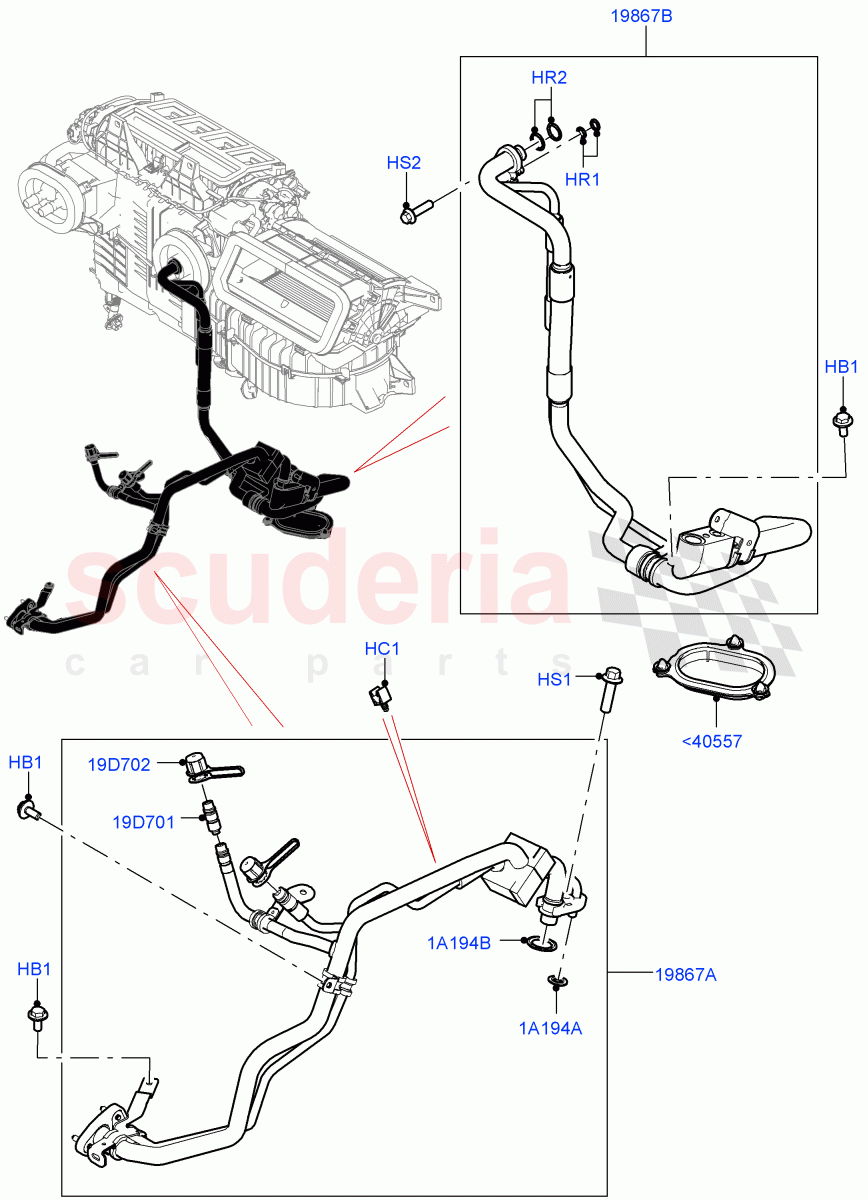

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYG500800	BOLT	$0.52	To Order

Photo	Part No	Description	Price (each)	Stock
	LR051520	CLIP - SINGLE	$3.50	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044466	O-RING	$4.33	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044465	O-RING	$2.92	To Order

Photo	Part No	Description	Price (each)	Stock
	FS108306	SCREW	$0.46	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106256	SCREW	$0.42	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036405	SEAL - RUBBER	$21.11	To Order

Photo	Part No	Description	Price (each)	Stock
	LR131160	TUBE- A/C EVAPORATOR INLET & OUTLET	$415.05	To Order
	LR131163	TUBE- A/C EVAPORATOR INLET & OUTLET	$384.06	To Order
	LR159468	TUBE- A/C EVAPORATOR INLET & OUTLET	$450.33	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR131155	TUBE- A/C EVAPORATOR INLET & OUTLET	$384.30	To Order

Photo	Part No	Description	Price (each)	Stock
	JUS500030	VALVE	$15.41	To Order
	LR131164	VALVE - AIR CONDITIONING	$51.17	To Order
	LR131165	VALVE - AIR CONDITIONING	$53.35	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR133087	CAP - VALVE	$27.16	To Order
	LR133088	CAP - VALVE	$23.83	To Order
	LR133089	CAP - VALVE	$25.12	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR124621	WASHER - SEALING	$15.67	To Order

Photo	Part No	Description	Price (each)	Stock
	LR122305	WASHER - SEALING	$14.52	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<40557	LR036405	SEAL - RUBBER	LR036405 SEAL - RUBBER	$21.11	1
HB1	RYG500800	BOLT	RYG500800 BOLT Hexagonal Head, M6 X 16MM	$0.52	5
HC1	LR051520	CLIP - SINGLE	LR051520 CLIP - SINGLE	$3.50	1
HR1	LR044466	O-RING	LR044466 O-RING 7.65 X 1.78	$4.33	2
HR2	LR044465	O-RING	LR044465 O-RING 14 X 1.78	$2.92	2
HS1	FS108306	SCREW	FS108306 SCREW M8 x 30MM	$0.46	1
HS2	FS106256	SCREW	FS106256 SCREW M6 x 25MM	$0.42	1
1A194A	LR124621	WASHER - SEALING	LR124621 WASHER - SEALING 3/8"	$15.67	1
1A194B	LR122305	WASHER - SEALING	LR122305 WASHER - SEALING 19.05 MM	$14.52	1
19D701	JUS500030	VALVE	JUS500030 VALVE Air Conditioning Refrigerant-R134A / High Pressure Charge Port, Low Pressure Port	$15.41	2
19D701	LR131164	VALVE - AIR CONDITIONING	LR131164 VALVE - AIR CONDITIONING Air Con Refrigerant-HF01234YF / High Pressure Charge Port / To: N2999999	$51.17	1
19D701	LR131165	VALVE - AIR CONDITIONING	LR131165 VALVE - AIR CONDITIONING Air Con Refrigerant-HF01234YF / Low Pressure Port / To: N2999999	$53.35	1
19D701	LR131164	VALVE - AIR CONDITIONING	LR131164 VALVE - AIR CONDITIONING A/C HF01234YF w/o Intrnl HT Exchng / High Pressure Charge Port / From: P2000001	$51.17	1
19D701	LR131165	VALVE - AIR CONDITIONING	LR131165 VALVE - AIR CONDITIONING A/C HF01234YF w/Intrnl Heat Exchng / Low Pressure Port / From: P2000001	$53.35	1
19D702	LR133087	CAP - VALVE	LR133087 CAP - VALVE Air Conditioning Refrigerant-R134A / High Pressure Charge Port, Low Pressure Port	$27.16	2
19D702	LR133088	CAP - VALVE	LR133088 CAP - VALVE Air Con Refrigerant-HF01234YF / High Pressure Charge Port / To: N2999999	$23.83	1
19D702	LR133089	CAP - VALVE	LR133089 CAP - VALVE Air Con Refrigerant-HF01234YF / Low Pressure Port / To: N2999999	$25.12	1
19D702	LR133088	CAP - VALVE	LR133088 CAP - VALVE A/C HF01234YF w/o Intrnl HT Exchng / High Pressure Charge Port / From: P2000001	$23.83	1
19D702	LR133089	CAP - VALVE	LR133089 CAP - VALVE A/C HF01234YF w/Intrnl Heat Exchng / Low Pressure Port / From: P2000001	$25.12	1
19867A	LR131160	TUBE- A/C EVAPORATOR INLET & OUTLET	LR131160 TUBE- A/C EVAPORATOR INLET & OUTLET Air Conditioning Refrigerant-R134A / To Compressor, To Condenser / To: M2058997	$415.05	1
19867A	LR131163	TUBE- A/C EVAPORATOR INLET & OUTLET	LR131163 TUBE- A/C EVAPORATOR INLET & OUTLET Air Con Refrigerant-HF01234YF / To Compressor, To Condenser / To: M2058997	$384.06	1
19867A	LR159468	TUBE- A/C EVAPORATOR INLET & OUTLET	LR159468 TUBE- A/C EVAPORATOR INLET & OUTLET Air Conditioning Refrigerant-R134A / To Compressor, To Condenser / From: M2058998	$450.33	1
19867A	LR159466	TUBE- A/C EVAPORATOR INLET & OUTLET	LR159466 TUBE- A/C EVAPORATOR INLET & OUTLET Air Con Refrigerant-HF01234YF / To Compressor, To Condenser / From: M2058998 / To: N2999999	$415.05	1
19867A	LR159466	TUBE- A/C EVAPORATOR INLET & OUTLET	LR159466 TUBE- A/C EVAPORATOR INLET & OUTLET A/C HF01234YF w/o Intrnl HT Exchng / To Compressor, To Condenser / From: P2000001	$415.05	1
19867B	LR131155	TUBE- A/C EVAPORATOR INLET & OUTLET	LR131155 TUBE- A/C EVAPORATOR INLET & OUTLET To HVAC Unit	$384.30	1

Air Conditioning System (3.0L Aj20P6 Petrol High, Rhd, With Air Conditioning - Front/Rear, 2.0L I4...
