Air Conditioning System (Under Floor) (3.0L Aj20D6 Diesel High, Short Wheelbase, 3 Zone Air...

Land Rover Defender (2020+) [3.0 I6 Turbo Petrol AJ20P6]

Find Your Part

Land Rover Defender (2020+) [3.0 I6 Turbo Petrol AJ20P6] - Air Conditioning System (Under Floor) (3.0L AJ20D6 Diesel High, Short Wheelbase, 3 Zone Air...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYG500800 BOLT $0.52 To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.46 IN STOCK
Photo Part No Description Price (each) Stock
LR038544 NUT $2.10 To Order
Photo Part No Description Price (each) Stock
LR044466 O-RING $4.33 To Order
Photo Part No Description Price (each) Stock
LR044465 O-RING $2.93 To Order
Photo Part No Description Price (each) Stock
LR038548 BRACKET - A/C PIPE $21.18 To Order
Photo Part No Description Price (each) Stock
LR131138 TUBE - AUXILIARY HEATER SUPPLY $201.08 To Order
Photo Part No Description Price (each) Stock
LR131125 TUBE - AUXILIARY HEATER SUPPLY $209.19 To Order
Photo Part No Description Price (each) Stock
LR131128 TUBE - AUXILIARY HEATER SUPPLY $209.19 To Order
View All

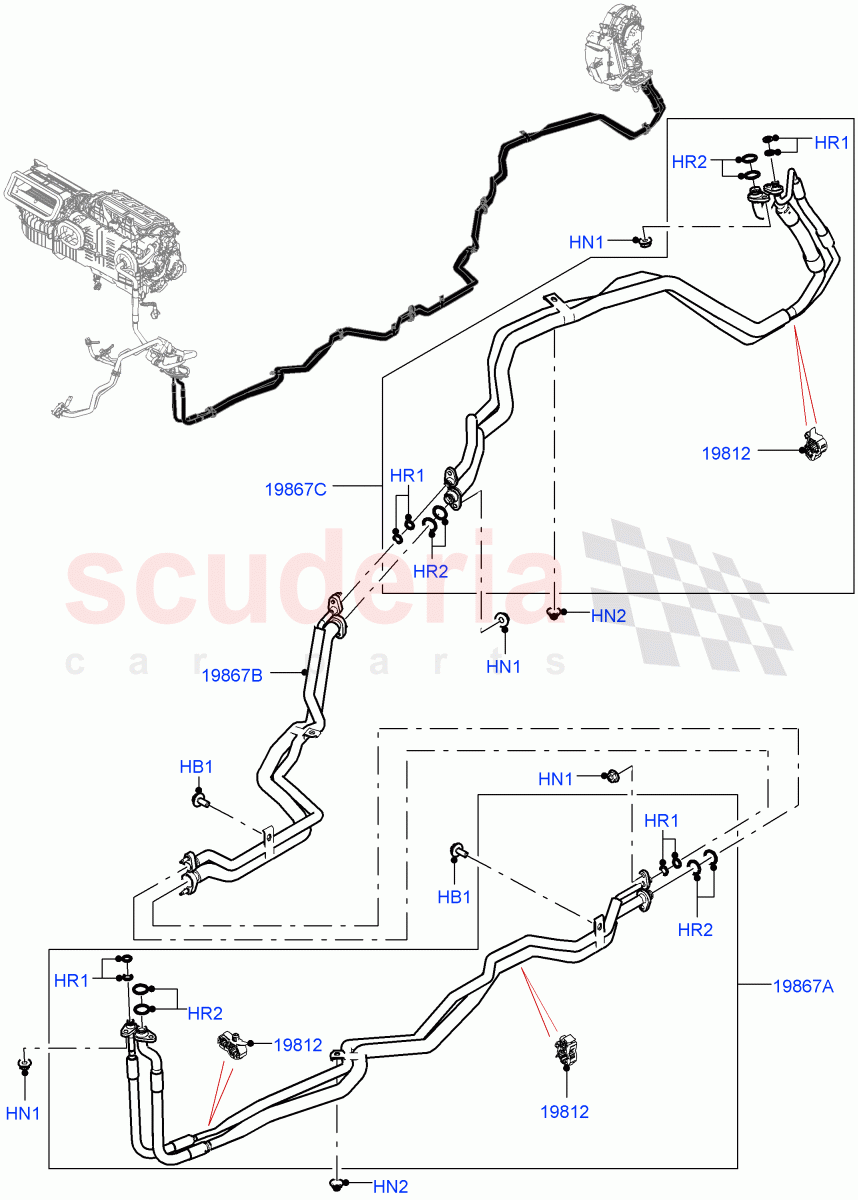

Air Conditioning System (Under Floor) (3.0L AJ20D6 Diesel High, Short Wheelbase, 3 Zone Air Conditioning + Chiller, 2.0L I4 High DOHC AJ200 Petrol, 3.0L AJ20P6 Petrol High, Standard Wheelbase, 5.0 Petrol AJ133 DOHC CDA, 2.0L I4 DSL HIGH DOHC AJ200) of Land Rover Land Rover Defender (2020+) [3.0 I6 Turbo Petrol AJ20P6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 RYG500800
BOLT
Hexagonal Head, M6 X 16MM 		$0.52 3
HN1 FN106046
NUT - HEX.
Hexagonal Head, M6
IN STOCK 		$1.46 8
HN2 LR038544
NUT
6 X 1.6MM 		$2.10 2
HR1 LR044466
O-RING
7.65 X 1.78 		$4.33 8
HR2 LR044465
O-RING
14 X 1.78 		$2.93 8
19812 LR038548
BRACKET - A/C PIPE 		$21.18 3
19867A LR131138
TUBE - AUXILIARY HEATER SUPPLY
Front 		$201.08 1
19867B LR131125
TUBE - AUXILIARY HEATER SUPPLY
Middle 		$209.19 1
19867C LR131128
TUBE - AUXILIARY HEATER SUPPLY
Rear 		$209.19 1
