Air Conditioning System (2.0L Aj200P Hi Phev, Lhd)

Land Rover Defender (2020+) [3.0 I6 Turbo Petrol AJ20P6]

Find Your Part

Land Rover Defender (2020+) [3.0 I6 Turbo Petrol AJ20P6] - Air Conditioning System (2.0L AJ200P Hi PHEV, LHD)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYG500800 BOLT $0.52 To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.46 IN STOCK
Photo Part No Description Price (each) Stock
LR044465 O-RING $2.92 To Order
Photo Part No Description Price (each) Stock
LR044466 O-RING $4.33 To Order
Photo Part No Description Price (each) Stock
FS106256 SCREW $0.42 To Order
Photo Part No Description Price (each) Stock
LR038548 BRACKET - A/C PIPE $21.15 To Order
Photo Part No Description Price (each) Stock
LR133558 VALVE - SHUT-OFF $223.19 To Order
Photo Part No Description Price (each) Stock
LR036404 SEAL - RUBBER $22.35 To Order
Photo Part No Description Price (each) Stock
LR101280 SENSOR - REFRIGERANT PRESSURE $120.82 To Order
Photo Part No Description Price (each) Stock
LR131132 TUBE - AUXILIARY HEATER SUPPLY $201.78 To Order
Photo Part No Description Price (each) Stock
LR131176 TUBE- A/C EVAPORATOR INLET & OUTLET $450.47 To Order
LR131178 TUBE- A/C EVAPORATOR INLET & OUTLET $450.47 To Order
LR159452 TUBE- A/C EVAPORATOR INLET & OUTLET $415.18 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR131164 VALVE - AIR CONDITIONING $51.19 To Order
LR131165 VALVE - AIR CONDITIONING $53.36 To Order
JUS500030 VALVE $15.41 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR133088 CAP - VALVE $23.84 To Order
LR133089 CAP - VALVE $25.13 To Order
LR133087 CAP - VALVE $27.17 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR122305 WASHER - SEALING $14.52 To Order
Photo Part No Description Price (each) Stock
LR124621 WASHER - SEALING $15.68 To Order
View All

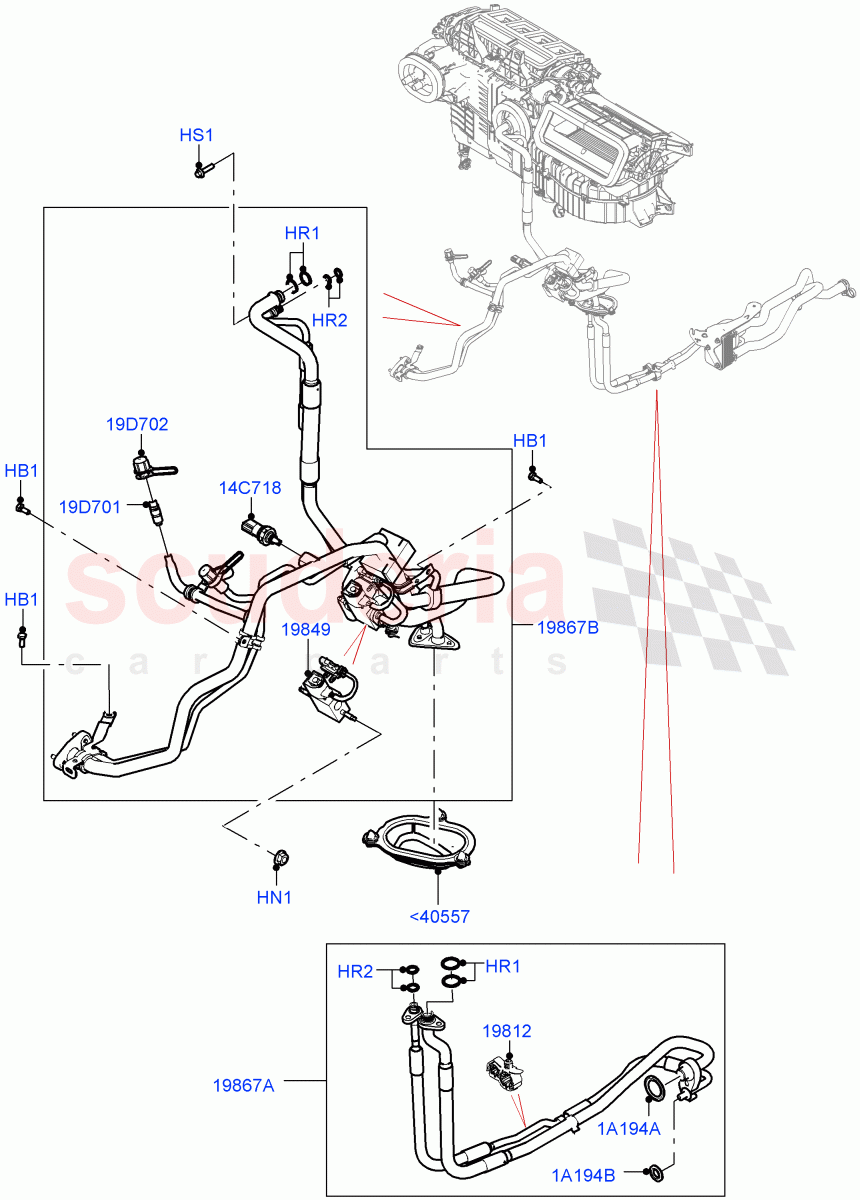

Air Conditioning System (2.0L AJ200P Hi PHEV, LHD) of Land Rover Land Rover Defender (2020+) [3.0 I6 Turbo Petrol AJ20P6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<40557 LR036404
SEAL - RUBBER 		$22.35 1
HB1 RYG500800
BOLT
Hexagonal Head, M6 X 16MM 		$0.52 3
HN1 FN106046
NUT - HEX.
Hexagonal Head, M6
IN STOCK 		$1.46 3
HR1 LR044465
O-RING
14 X 1.78 		$2.92 4
HR2 LR044466
O-RING
7.65 X 1.78 		$4.33 4
HS1 FS106256
SCREW
M6 x 25MM 		$0.42 1
1A194A LR122305
WASHER - SEALING
19.05 MM 		$14.52 1
1A194B LR124621
WASHER - SEALING
3/8" 		$15.68 1
14C718 LR101280
SENSOR - REFRIGERANT PRESSURE 		$120.82 1
19D701 LR131164
VALVE - AIR CONDITIONING
Air Conditioning Refrigerant-R134A / High Pressure Charge Port 		$51.19 1
19D701 LR131165
VALVE - AIR CONDITIONING
Air Conditioning Refrigerant-R134A / Low Pressure Port 		$53.36 1
19D701 JUS500030
VALVE
Air Con Refrigerant-HF01234YF / High Pressure Charge Port, Low Pressure Port / To: N2999999 		$15.41 2
19D701 JUS500030
VALVE
A/C HF01234YF w/o Intrnl HT Exchng / High Pressure Charge Port, Low Pressure Port / From: P2000001 		$15.41 2
19D702 LR133088
CAP - VALVE
Air Conditioning Refrigerant-R134A / High Pressure Charge Port 		$23.84 1
19D702 LR133089
CAP - VALVE
Air Conditioning Refrigerant-R134A / Low Pressure Port 		$25.13 1
19D702 LR133087
CAP - VALVE
Air Con Refrigerant-HF01234YF / High Pressure Charge Port, Low Pressure Port / To: N2999999 		$27.17 2
19D702 LR133087
CAP - VALVE
A/C HF01234YF w/Intrnl Heat Exchng / High Pressure Charge Port, Low Pressure Port / From: P2000001 		$27.17 2
19812 LR038548
BRACKET - A/C PIPE 		$21.15 1
19849 LR133558
VALVE - SHUT-OFF 		$223.19 1
19867A LR131132
TUBE - AUXILIARY HEATER SUPPLY 		$201.78 1
19867B LR131176
TUBE- A/C EVAPORATOR INLET & OUTLET
Air Con Refrigerant-HF01234YF / To HVAC Unit / To: M2058997 		$450.47 1
19867B LR131178
TUBE- A/C EVAPORATOR INLET & OUTLET
Air Conditioning Refrigerant-R134A / To HVAC Unit / To: M2058997 		$450.47 1
19867B LR159452
TUBE- A/C EVAPORATOR INLET & OUTLET
Air Con Refrigerant-HF01234YF / To HVAC Unit / From: M2058998 / To: N2999999 		$415.18 1
19867B LR159442
TUBE- A/C EVAPORATOR INLET & OUTLET
Air Conditioning Refrigerant-R134A / To HVAC Unit / From: M2058998 		$450.47 1
19867B LR159452
TUBE- A/C EVAPORATOR INLET & OUTLET
A/C HF01234YF w/o Intrnl HT Exchng / To HVAC Unit / From: P2000001 		$415.18 1
