Name: Rear Seat Base (With 60/40 Power Fold Thru Rr Seat)
Rating: 4.5 (1 reviews)

Rear Seat Base (With 60/40 Power Fold Thru Rr Seat) of Land Rover Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10]

View All

Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10] - Rear Seat Base (With 60/40 Power Fold Thru Rr Seat)

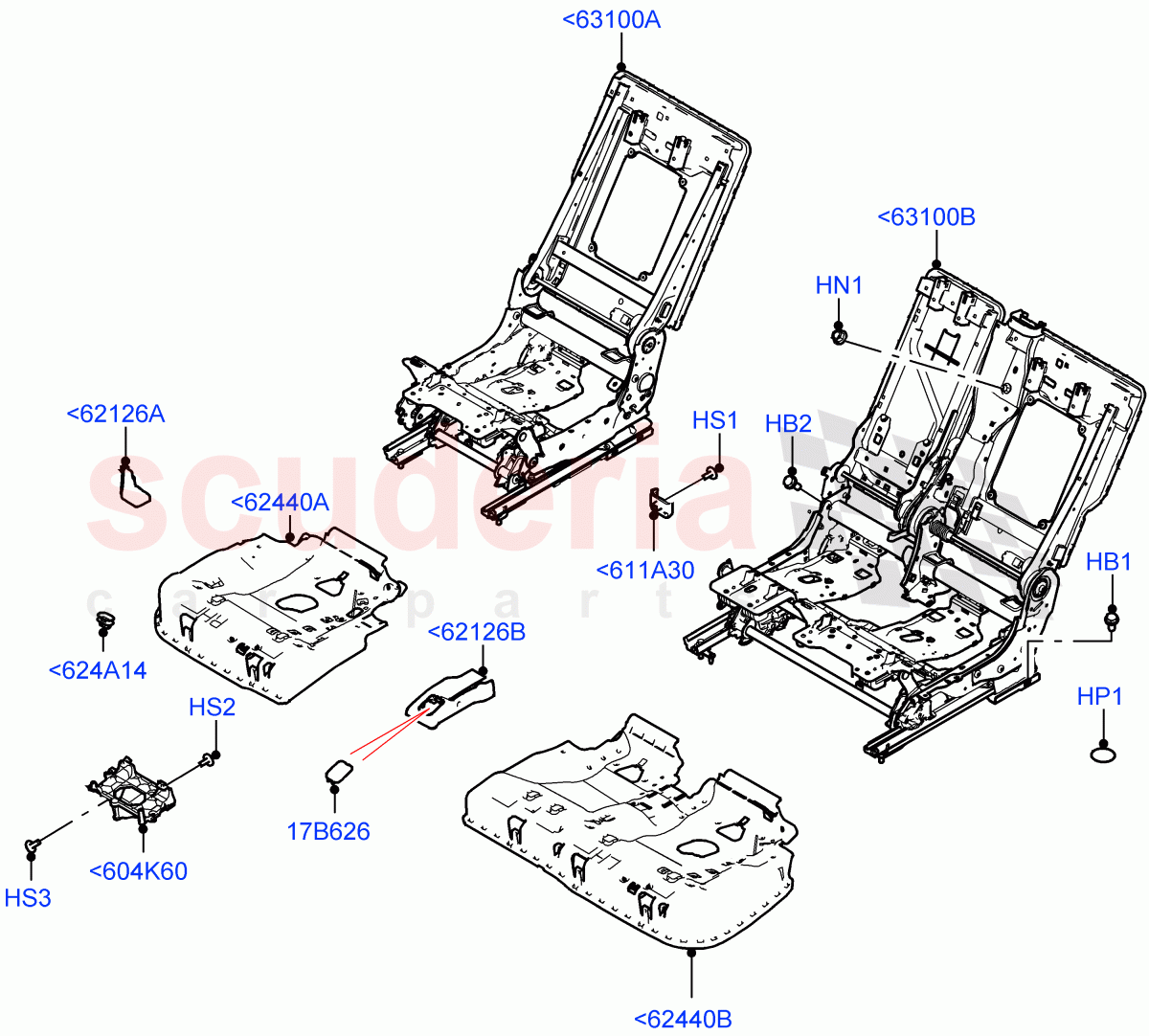

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR038571	BOLT	$3.70	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153368	BOLT	$2.88	To Order

Photo	Part No	Description	Price (each)	Stock
	LR039505	NUT - FLANGED	$19.28	To Order

Photo	Part No	Description	Price (each)	Stock
	LR050869	PLUG - BLANKING	$1.15	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159958	SCREW	$5.00	To Order

Photo	Part No	Description	Price (each)	Stock
	LR048418	SCREW	$1.40	To Order

Photo	Part No	Description	Price (each)	Stock
	LR007354	Screw	$0.74	To Order

Photo	Part No	Description	Price (each)	Stock
	LR154087	COVER - SEAT TRACK	$15.20	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153231	TRAY - PACKAGE	$58.59	To Order

Photo	Part No	Description	Price (each)	Stock
	LR166338	PROTECTOR - EDGE - SEAT FRAME	$17.46	To Order

Photo	Part No	Description	Price (each)	Stock
	LR150577	COVER - SEAT TRACK	$22.40	To Order
	LR150582	COVER - SEAT TRACK	$22.40	To Order
	LR166933	COVER - SEAT TRACK	$41.22	To Order

...and 7 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR150576	COVER - SEAT TRACK	$22.40	To Order
	LR150580	COVER - SEAT TRACK	$22.40	To Order

Photo	Part No	Description	Price (each)	Stock
	LR154079	SUPPORT - REAR SEAT CUSHION	$233.28	To Order

Photo	Part No	Description	Price (each)	Stock
	LR154080	SUPPORT - REAR SEAT CUSHION	$288.31	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092463	RETAINER - SEAT	$7.13	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152072	FRAME - SEAT	$1,411.35	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152076	FRAME - SEAT	$1,719.51	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<604K60	LR153231	TRAY - PACKAGE	LR153231 TRAY - PACKAGE RH/LH	$58.59	2
<611A30	LR166338	PROTECTOR - EDGE - SEAT FRAME	LR166338 PROTECTOR - EDGE - SEAT FRAME For Seat Frame	$17.46	1
<624A14	LR092463	RETAINER - SEAT	LR092463 RETAINER - SEAT Floor, Front	$7.13	5
<62126A	LR150577	COVER - SEAT TRACK	LR150577 COVER - SEAT TRACK Ebony Black/Ebony Black Interior / Front, Outer, RH Seat	$22.40	1
<62126A	LR150582	COVER - SEAT TRACK	LR150582 COVER - SEAT TRACK Ebony Black/Ebony Black Interior / Front, LH Seat, Outer	$22.40	1
<62126A	LR166933	COVER - SEAT TRACK	LR166933 COVER - SEAT TRACK Ecru / Front, Outer, RH Seat	$41.22	1
<62126A	LR166934	COVER - SEAT TRACK	LR166934 COVER - SEAT TRACK Caraway / Front, Outer, RH Seat	$41.22	1
<62126A	LR166936	COVER - SEAT TRACK	LR166936 COVER - SEAT TRACK Deep Garnet / Front, Outer, RH Seat	$41.22	1
<62126A	LR166937	COVER - SEAT TRACK	LR166937 COVER - SEAT TRACK Perlino / Front, Outer, RH Seat	$41.22	1
<62126A	LR166940	COVER - SEAT TRACK	LR166940 COVER - SEAT TRACK Ecru / Front, LH Seat, Outer	$22.35	1
<62126A	LR166941	COVER - SEAT TRACK	LR166941 COVER - SEAT TRACK Caraway / Front, LH Seat, Outer	$22.35	1
<62126A	LR166942	COVER - SEAT TRACK	LR166942 COVER - SEAT TRACK Deep Garnet / Front, LH Seat, Outer	$22.35	1
<62126A	LR166943	COVER - SEAT TRACK	LR166943 COVER - SEAT TRACK Perlino / Front, LH Seat, Outer	$22.35	1
<62126B	LR150576	COVER - SEAT TRACK	LR150576 COVER - SEAT TRACK Front, Inner, RH Seat	$22.40	1
<62126B	LR150580	COVER - SEAT TRACK	LR150580 COVER - SEAT TRACK Front, Inner, LH Seat	$22.40	1
<62440A	LR154079	SUPPORT - REAR SEAT CUSHION	LR154079 SUPPORT - REAR SEAT CUSHION RH Seat	$233.28	1
<62440B	LR154080	SUPPORT - REAR SEAT CUSHION	LR154080 SUPPORT - REAR SEAT CUSHION LH Seat	$288.31	1
<63100A	LR152072	FRAME - SEAT	LR152072 FRAME - SEAT RH Seat	$1,411.35	1
<63100B	LR152076	FRAME - SEAT	LR152076 FRAME - SEAT LH Seat	$1,719.51	1
HB1	LR038571	BOLT	LR038571 BOLT Hexagonal Head, M12 X 35MM, Seat Frame To Floor	$3.70	8
HB2	LR153368	BOLT	LR153368 BOLT For Seat Frame	$2.88	1
HN1	LR039505	NUT - FLANGED	LR039505 NUT - FLANGED For Seat Frame	$19.28	1
HP1	LR050869	PLUG - BLANKING	LR050869 PLUG - BLANKING Less 3rd Row Rear Seat / Sealing Patch That Covers Holes When Row 3 Is Not Fitted	$1.15	5
HS1	LR159958	SCREW	LR159958 SCREW 4 x 10MM, For Seat Frame, Torx	$5.00	4
HS2	LR048418	SCREW	LR048418 SCREW 5 X 14	$1.40	14
HS3	LR007354	Screw	LR007354 Screw M6 X 16MM, Screw And Washer	$0.74	4
17B626	LR154087	COVER - SEAT TRACK	LR154087 COVER - SEAT TRACK For Seat Track, RH/LH	$15.20	2

Rear Seat Base (With 60/40 Power Fold Thru Rr Seat)

Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10]

Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10] - Rear Seat Base (With 60/40 Power Fold Thru Rr Seat)
