Front Seat Back (Premium Seat Frame)

Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10]

Find Your Part

Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10] - Front Seat Back (Premium Seat Frame)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR096813 BOLT $17.86 To Order
Photo Part No Description Price (each) Stock
HYG500360 BOLT $2.29 To Order
Photo Part No Description Price (each) Stock
LR126006 CLIP $34.61 To Order
Photo Part No Description Price (each) Stock
LR166731 NUT - FLANGED $1.19 To Order
Photo Part No Description Price (each) Stock
LR039016 SCREW $1.43 To Order
Photo Part No Description Price (each) Stock
LR125846 SCREW $2.36 To Order
Photo Part No Description Price (each) Stock
XYP500230 SCREW $0.75 To Order
Photo Part No Description Price (each) Stock
LR111342 MOULDING - SEAT BACK $79.30 To Order
LR171325 MOULDING - SEAT BACK $140.97 To Order
LR171326 MOULDING - SEAT BACK $140.97 To Order
Photo Part No Description Price (each) Stock
LR111346 BRACKET - HEADREST DVD MOUNTING $50.39 To Order
Photo Part No Description Price (each) Stock
LR154685 FRAME - SEAT $1,089.58 To Order
LR154686 FRAME - SEAT $1,089.58 To Order
LR154687 FRAME - SEAT $1,089.58 To Order
...and 7 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR101129 SUPPORT - SEAT BACK - LUMBAR $30.64 To Order
LR101130 SUPPORT - SEAT BACK - LUMBAR $30.64 To Order
Photo Part No Description Price (each) Stock
LR152930 MOULDING - SCREEN BRACKET $90.50 To Order
LR151643 GUIDE - WIRING $22.66 To Order
Photo Part No Description Price (each) Stock
LR151857 BEZEL - SCREEN MOULDING $117.77 To Order
LR171630 MOULDING - SCREEN BRACKET $100.77 To Order
Photo Part No Description Price (each) Stock
LR151858 BEZEL - SCREEN MOULDING $125.16 To Order
LR171629 MOULDING - SCREEN BRACKET $77.92 To Order
Photo Part No Description Price (each) Stock
LR154088 BEZEL - SCREEN MOULDING $125.16 To Order
LR171631 BEZEL - SCREEN MOULDING $317.25 To Order
Photo Part No Description Price (each) Stock
LR152927 BEZEL - SCREEN MOULDING $34.56 To Order
LR152927 BEZEL - SCREEN MOULDING $34.56 To Order
Photo Part No Description Price (each) Stock
LR111330 PLATE - HEATER CONNECTION COVER $32.27 To Order
Photo Part No Description Price (each) Stock
LR152907 BRACKET - FRONT SEAT BACK FRAME $38.16 To Order
LR152911 BRACKET - FRONT SEAT BACK FRAME $38.16 To Order
Photo Part No Description Price (each) Stock
LR152916 CAP - SCREW $16.07 To Order
LR152916 CAP - SCREW $16.07 To Order
Photo Part No Description Price (each) Stock
LR152862 SLEEVE - HEADREST GUIDE $15.35 To Order
Photo Part No Description Price (each) Stock
LR161068 HALO ASSEMBLY - FRONT SEAT BACK $968.44 To Order
LR161069 HALO ASSEMBLY - FRONT SEAT BACK $968.44 To Order
LR161070 HALO ASSEMBLY - FRONT SEAT BACK $317.18 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR150342 SUPPORT - SEAT BACK - LUMBAR $195.75 To Order
Photo Part No Description Price (each) Stock
LR154098 SUPPORT - SEAT BACK - LUMBAR $798.11 To Order
LR154097 SUPPORT - SEAT BACK - LUMBAR $798.11 To Order
Photo Part No Description Price (each) Stock
LR150345 SUPPORT - SEAT BACK - LUMBAR $271.05 To Order
Photo Part No Description Price (each) Stock
LR152874 MOULDING - HEADREST MOUNT $42.08 To Order
Photo Part No Description Price (each) Stock
LR111293 MOULDING - HEADREST MOUNT $59.08 To Order
Photo Part No Description Price (each) Stock
LR153316 MOULDING - HEADREST MOUNT $43.77 To Order
LR153332 MOULDING - HEADREST MOUNT $43.77 To Order
LR173779 MOULDING - HEADREST MOUNT $43.77 To Order
...and 1 more part variants. See table on right for more details.
View All

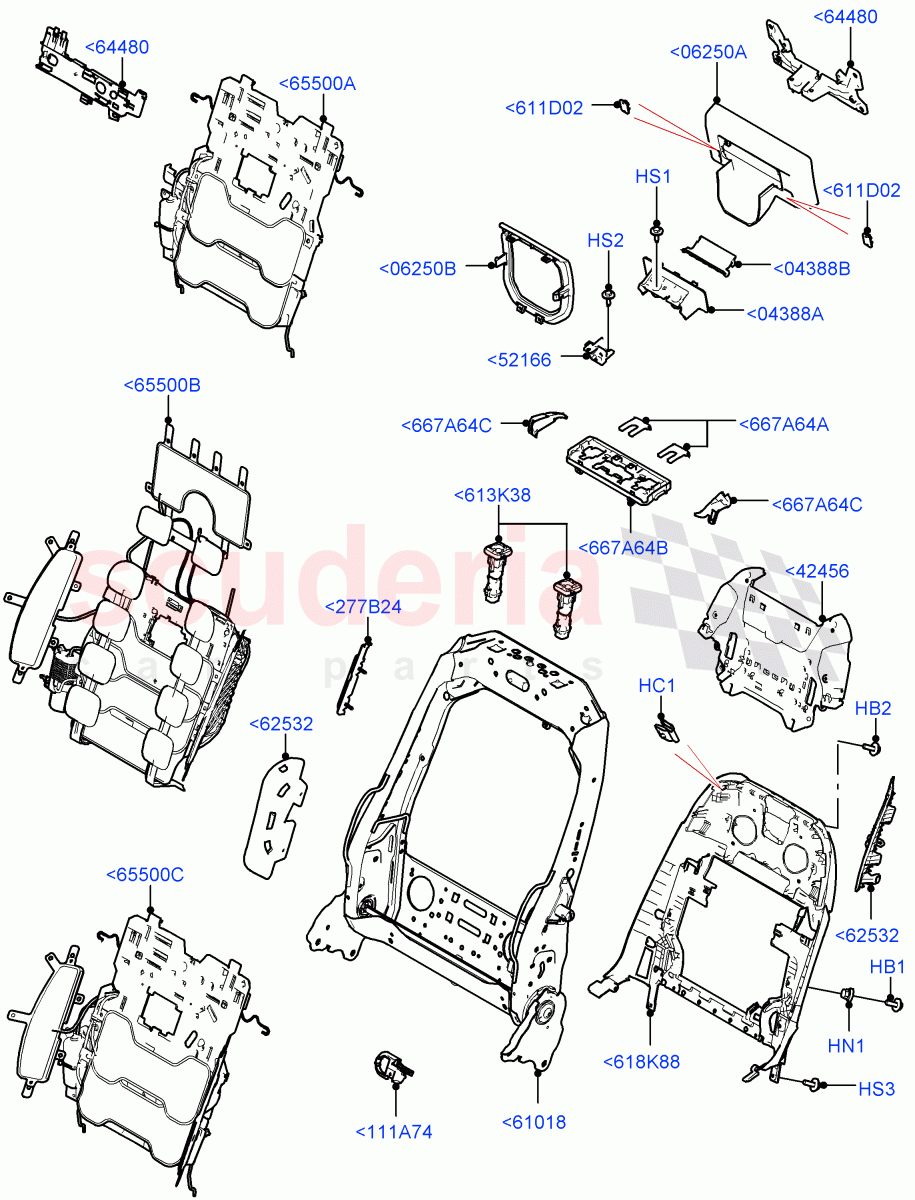

Front Seat Back (Premium Seat Frame) of Land Rover Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<111A74 LR111330
PLATE - HEATER CONNECTION COVER
RH/LH 		$32.27 2
<277B24 LR152907
BRACKET - FRONT SEAT BACK FRAME
RH 		$38.16 1
<277B24 LR152911
BRACKET - FRONT SEAT BACK FRAME
LH 		$38.16 1
<611D02 LR152916
CAP - SCREW
Rear Entertainment Scrn - 11.6 Inch / RH/LH 		$16.07 4
<611D02 LR152916
CAP - SCREW
RSE 13.3 Inch Screen / RH/LH / From: PA000001 		$16.07 4
<613K38 LR152862
SLEEVE - HEADREST GUIDE
Enhanced Passenger Seat Away 		$15.35 4
<618K88 LR161068
HALO ASSEMBLY - FRONT SEAT BACK
Hi Line Audio System - 600 W, Less Rear Entertainment Screen / RH 		$968.44 1
<618K88 LR161069
HALO ASSEMBLY - FRONT SEAT BACK
Hi Line Audio System - 600 W, Rear Entertainment Scrn - 11.6 Inch / RH 		$968.44 1
<618K88 LR161070
HALO ASSEMBLY - FRONT SEAT BACK
Less Rear Entertainment Screen, Super Premium Audio 2500 W / RH 		$317.18 1
<618K88 LR161074
HALO ASSEMBLY - FRONT SEAT BACK
Hi Line Audio System - 600 W, Less Rear Entertainment Screen / LH 		$911.04 1
<618K88 LR161075
HALO ASSEMBLY - FRONT SEAT BACK
Meridian 3D Surround Sound System, Rear Entertainment Scrn - 11.6 Inch / LH 		$968.44 1
<618K88 LR161076
HALO ASSEMBLY - FRONT SEAT BACK
Less Rear Entertainment Screen, Super Premium Audio 2500 W / LH 		$317.18 1
<618K88 LR161077
HALO ASSEMBLY - FRONT SEAT BACK
Rear Entertainment Scrn - 11.6 Inch, Super Premium Audio 2500 W / LH 		$968.44 1
<618K88 LR161071
HALO ASSEMBLY - FRONT SEAT BACK
Rear Entertainment Scrn - 11.6 Inch, Super Premium Audio 2500 W / RH 		$968.44 1
<667A64A LR152874
MOULDING - HEADREST MOUNT
Middle, RH/LH, Upper 		$42.08 2
<667A64B LR111293
MOULDING - HEADREST MOUNT
Lower, Middle, RH/LH 		$59.08 2
<667A64C LR153316
MOULDING - HEADREST MOUNT
Less SV Model Spec / Right Side Of Both Seats 		$43.77 2
<667A64C LR153332
MOULDING - HEADREST MOUNT
Left Side Of Both Seats 		$43.77 2
<667A64C LR173779
MOULDING - HEADREST MOUNT
SV1 Model Spec / Left Side Of Both Seats / From: PA000001 		$43.77 2
<667A64C LR173780
MOULDING - HEADREST MOUNT
SV1 Model Spec / Right Side Of Both Seats / From: PA000001 		$43.77 2
<04388A LR151857
BEZEL - SCREEN MOULDING
Rear Entertainment Scrn - 11.6 Inch / Lower, RH/LH 		$117.77 2
<04388A LR171630
MOULDING - SCREEN BRACKET
RSE 13.3 Inch Screen / Lower, RH/LH / From: PA000001 		$100.77 2
<04388B LR151858
BEZEL - SCREEN MOULDING
Rear Entertainment Scrn - 11.6 Inch / RH/LH, Upper 		$125.16 2
<04388B LR171629
MOULDING - SCREEN BRACKET
RSE 13.3 Inch Screen / RH/LH, Upper / From: PA000001 		$77.92 2
<06250A LR154088
BEZEL - SCREEN MOULDING
Rear Entertainment Scrn - 11.6 Inch / Rear, RH/LH 		$125.16 2
<06250A LR171631
BEZEL - SCREEN MOULDING
RSE 13.3 Inch Screen / Rear, RH/LH / From: PA000001 		$317.25 2
<06250B LR152927
BEZEL - SCREEN MOULDING
Rear Entertainment Scrn - 11.6 Inch / Front, RH/LH 		$34.56 2
<06250B LR152927
BEZEL - SCREEN MOULDING
RSE 13.3 Inch Screen / Front, RH/LH / From: PA000001 		$34.56 2
<42456 LR111342
MOULDING - SEAT BACK
Less SV Model Spec / RH/LH 		$79.30 2
<42456 LR171325
MOULDING - SEAT BACK
SV1 Model Spec / RH / From: PA000001 		$140.97 1
<42456 LR171326
MOULDING - SEAT BACK
SV1 Model Spec / LH / From: PA000001 		$140.97 1
<52166 LR111346
BRACKET - HEADREST DVD MOUNTING
Rear Entertainment Scrn - 11.6 Inch / RH/LH 		$50.39 2
<61018 LR154685
FRAME - SEAT
Less Heel Catcher, Less Rear Entertainment Screen / RH 		$1,089.58 1
<61018 LR154686
FRAME - SEAT
Less Heel Catcher, Rear Entertainment Scrn - 11.6 Inch / RH 		$1,089.58 1
<61018 LR154687
FRAME - SEAT
Heel Catcher - Heated, LHD, Rear Entertainment Scrn - 11.6 Inch / RH 		$1,089.58 1
<61018 LR154688
FRAME - SEAT
Heel Catcher - Heated, LHD, Less Rear Entertainment Screen / RH 		$1,089.58 1
<61018 LR154689
FRAME - SEAT
Less Heel Catcher, Less Rear Entertainment Screen / LH 		$1,089.58 1
<61018 LR154690
FRAME - SEAT
Less Heel Catcher, Rear Entertainment Scrn - 11.6 Inch / LH 		$1,025.00 1
<61018 LR154691
FRAME - SEAT
Heel Catcher - Heated, RHD, Rear Entertainment Scrn - 11.6 Inch / LH 		$1,089.58 1
<61018 LR154692
FRAME - SEAT
Heel Catcher - Heated, Less Rear Entertainment Screen, RHD / LH 		$1,089.58 1
<61018 LR154687
FRAME - SEAT
Heel Catcher - Heated, LHD, RSE 13.3 Inch Screen / RH / From: PA000001 		$1,089.58 1
<61018 LR154691
FRAME - SEAT
Heel Catcher - Heated, RHD, RSE 13.3 Inch Screen / LH / From: PA000001 		$1,089.58 1
<62532 LR101129
SUPPORT - SEAT BACK - LUMBAR
Right Side Of Both Seats 		$30.64 2
<62532 LR101130
SUPPORT - SEAT BACK - LUMBAR
Left Side Of Both Seats 		$30.64 2
<64480 LR152930
MOULDING - SCREEN BRACKET
Rear Entertainment Scrn - 11.6 Inch / RH/LH 		$90.50 2
<64480 LR151643
GUIDE - WIRING
RH/LH, Seat Recline 		$22.66 2
<65500A LR150342
SUPPORT - SEAT BACK - LUMBAR
Less Articulated Squabs, Less Front Seat Bolster, Less Front Seat Massage, Seat Lumbar - 4 Way / RH/LH 		$195.75 2
<65500B LR154098
SUPPORT - SEAT BACK - LUMBAR
Articulated Squabs, Front Seat Power Bolster, Hot Stone Massage Front, Seat Lumbar - 4 Way / RH/LH 		$798.11 2
<65500B LR154097
SUPPORT - SEAT BACK - LUMBAR
Articulated Squabs, Front Seat Power Bolster, Seat Lumbar - 4 Way, Seat Massage Front / RH/LH 		$798.11 2
<65500C LR150345
SUPPORT - SEAT BACK - LUMBAR
Front Seat Power Bolster, Less Articulated Squabs, Less Front Seat Massage, Seat Lumbar - 4 Way / RH/LH 		$271.05 2
HB1 LR096813
BOLT
M4X0.7X16.0 . 		$17.86 8
HB2 HYG500360
BOLT
Super Premium Audio 2500 W / M5 x 14MM 		$2.29 12
HC1 LR126006
CLIP 		$34.61 4
HN1 LR166731
NUT - FLANGED
M4x0.7x9.5 		$1.19 8
HS1 LR039016
SCREW
Rear Entertainment Scrn - 11.6 Inch / M5 X 8 T25 		$1.43 18
HS2 LR125846
SCREW
Rear Entertainment Scrn - 11.6 Inch / M5 X 0.8 X 16MM 		$2.36 4
HS3 XYP500230
SCREW
4 X 16MM 		$0.75 20
