Front Panels, Aprons & Side Members

Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10]

Find Your Part

Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10] - Front Panels, Aprons & Side Members

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR009266 BOLT M6 X 24 $1.46 IN STOCK
LR009266 BOLT M6 X 24 $1.46 IN STOCK
Photo Part No Description Price (each) Stock
LR108386 CLIP - PUSH ON STEEL $1.05 To Order
Photo Part No Description Price (each) Stock
RZM500100 PIN - TRIM $3.73 To Order
Photo Part No Description Price (each) Stock
ANR2224 HARDWARE - MISCELLANEOUS $2.66 To Order
Photo Part No Description Price (each) Stock
LR106494 SCREW $2.24 IN STOCK
Photo Part No Description Price (each) Stock
LR151487 SHIELD - SPLASH - WHEELHOUSE $198.78 To Order
LR151488 SHIELD - SPLASH - WHEELHOUSE $198.78 To Order
LR151485 SHIELD - SPLASH - WHEELHOUSE $198.78 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR151483 SHIELD - SPLASH $64.31 To Order
LR151484 SHIELD - SPLASH $67.24 To Order
View All

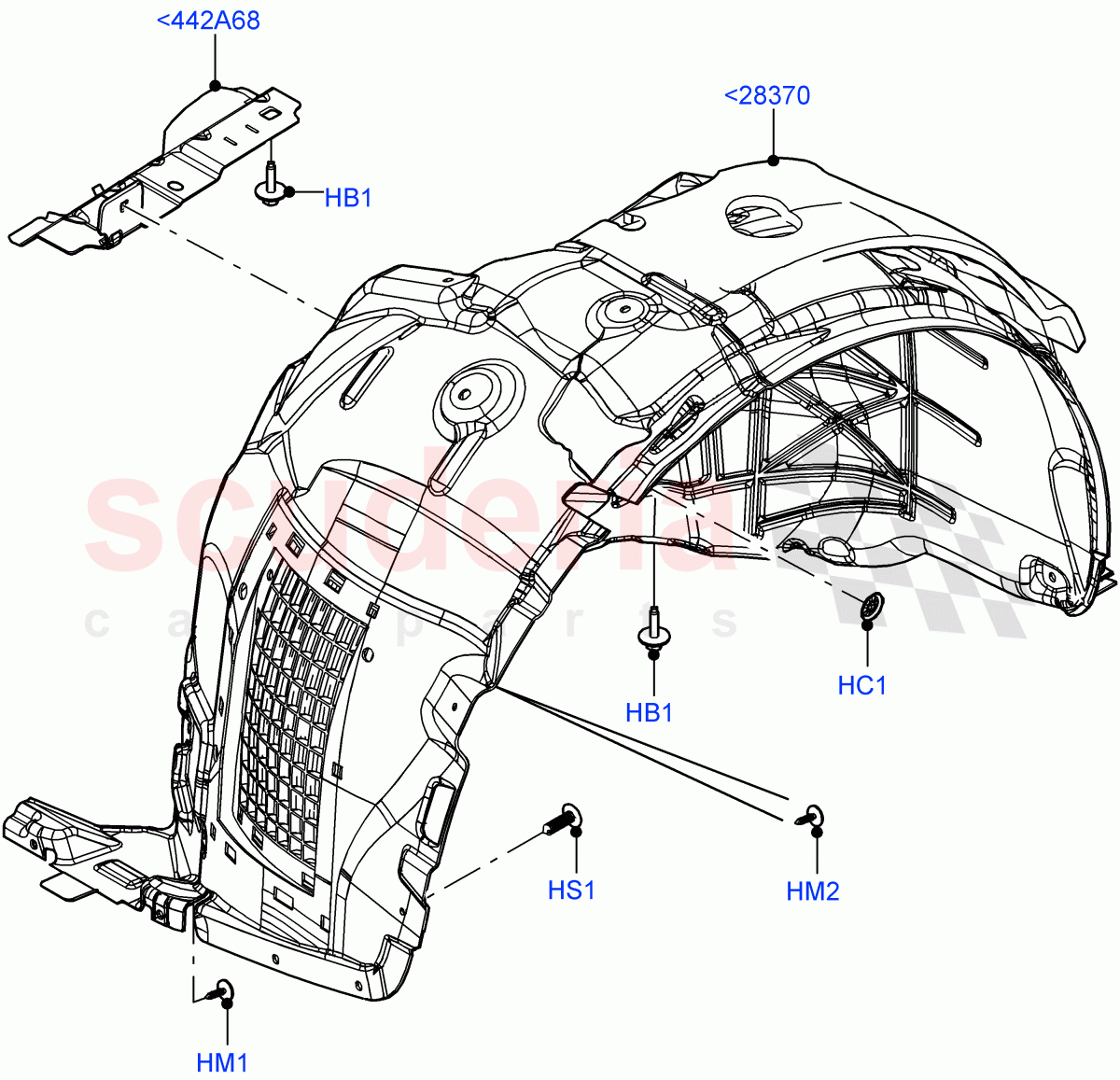

Front Panels, Aprons & Side Members of Land Rover Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<442A68 LR151483
SHIELD - SPLASH
RH 		$64.31 1
<442A68 LR151484
SHIELD - SPLASH
LH 		$67.24 1
<28370 LR151487
SHIELD - SPLASH - WHEELHOUSE
Less Engine Cooling System / LH, Without Vent / To: NA000675 		$198.78 1
<28370 LR151488
SHIELD - SPLASH - WHEELHOUSE
With Standard Engine Cooling System / LH, With Vent / To: NA000675 		$198.78 1
<28370 LR151485
SHIELD - SPLASH - WHEELHOUSE
Less Engine Cooling System / RH, Without Vent / To: NA000675 		$198.78 1
<28370 LR151486
SHIELD - SPLASH - WHEELHOUSE
With Extra Engine Cooling System / RH, With Vent / To: NA000675 		$198.78 1
<28370 LR174247
Shield - Splash - Wheelhouse
Less Engine Cooling System / RH, Without Vent / From: NA000676 		$198.78 1
<28370 LR174246
SHIELD - SPLASH - WHEELHOUSE
With Extra Engine Cooling System / RH, With Vent / From: NA000676 		$198.78 1
<28370 LR174245
Shield - Splash - Wheelhouse
Less Engine Cooling System / LH, Without Vent / From: NA000676 		$198.78 1
<28370 LR174244
SHIELD - SPLASH - WHEELHOUSE
With Extra Engine Cooling System / LH, With Vent / From: NA000676 		$198.78 1
HB1 LR009266
BOLT M6 X 24
Bolt And Washer, Hexagonal Head, M6 X 24MM, Shield - Wheelhouse
IN STOCK 		$1.46 8
HB1 LR009266
BOLT M6 X 24
Bolt And Washer, Hexagonal Head, M6 X 24MM, Splash Shield
IN STOCK 		$1.46 2
HC1 LR108386
CLIP - PUSH ON STEEL
M6 		$1.05 4
HM1 RZM500100
PIN - TRIM
7.15 X 1.5 - 25 Plastic 		$3.73 4
HM2 ANR2224
HARDWARE - MISCELLANEOUS
8 X 20MM, Pin 		$2.66 22
HS1 LR106494
SCREW
M5 x 19MM, Self Tapping
IN STOCK 		$2.24 4
