Name: Luggage Compartment Door (Door And Fixings)
Rating: 4.3 (1 reviews)

Luggage Compartment Door (Door And Fixings) of Land Rover Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10]

View All

Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10] - Luggage Compartment Door (Door And Fixings)

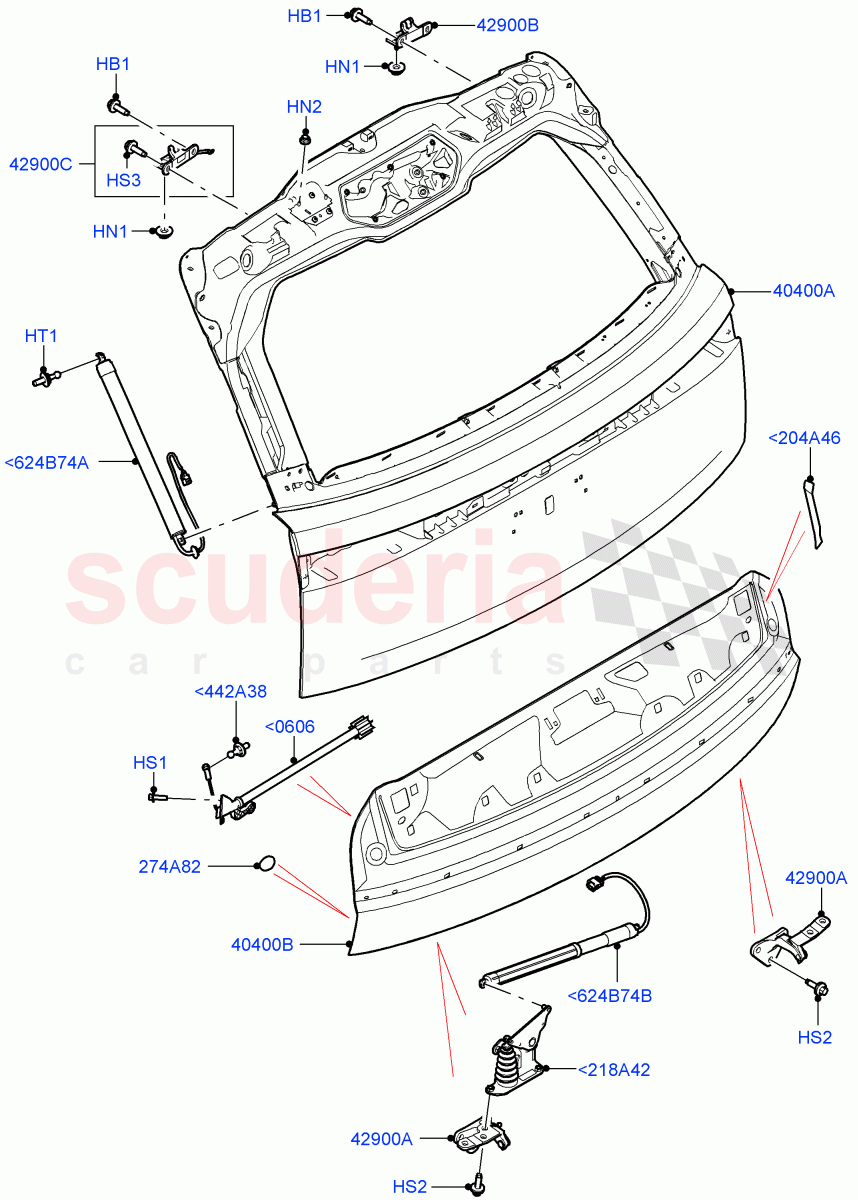

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR155086	BOLT AND WASHER - HEX.HEAD	$1.45	To Order

Photo	Part No	Description	Price (each)	Stock
	LR155085	NUT	$2.33	To Order

Photo	Part No	Description	Price (each)	Stock
	LR142475	NUT - HEX.	$1.38	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP500200	SCREW	$0.94	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG501160	SCREW	$1.49	To Order
	RYG501160	SCREW	$1.49	To Order

Photo	Part No	Description	Price (each)	Stock
	LR155061	SCREW AND WASHER	$1.77	To Order

Photo	Part No	Description	Price (each)	Stock
	LR154517	STUD - BALL	$5.48	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152487	STAY - TAILGATE	$81.06	To Order
	LR153785	STAY - TAILGATE	$78.46	To Order

Photo	Part No	Description	Price (each)	Stock
	LR088967	SEAL - COVER	$3.60	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR154572	TAILGATE COMPLETE	$3,141.24	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151861	TAILGATE - LESS HINGES	$539.35	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151628	HINGE - TAILGATE	$91.97	To Order
	LR151629	HINGE - TAILGATE	$91.97	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151646	HINGE - TAILGATE	$57.16	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151649	HINGE - TAILGATE	$58.23	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151866	PATCH - SEALING	$17.03	To Order
	LR151867	PATCH - SEALING	$17.03	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153783	ACTUATOR - POWER TAILGATE	$186.10	To Order

Photo	Part No	Description	Price (each)	Stock
	LR138284	STUD - BALL	$6.43	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153739	STRUT - TAILGATE	$393.08	To Order
	LR153750	STRUT - TAILGATE	$393.08	To Order

Photo	Part No	Description	Price (each)	Stock
	LR154248	STRUT - LOAD FLOOR	$291.94	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<204A46	LR151866	PATCH - SEALING	LR151866 PATCH - SEALING LH, Protective	$17.03	1
<204A46	LR151867	PATCH - SEALING	LR151867 PATCH - SEALING RH, Protective	$17.03	1
<218A42	LR153783	ACTUATOR - POWER TAILGATE	LR153783 ACTUATOR - POWER TAILGATE	$186.10	1
<442A38	LR138284	STUD - BALL	LR138284 STUD - BALL M8 x 19MM, Strut, Upper Tailgate	$6.43	2
<624B74A	LR153739	STRUT - TAILGATE	LR153739 STRUT - TAILGATE LH, Upper	$393.08	1
<624B74A	LR153750	STRUT - TAILGATE	LR153750 STRUT - TAILGATE RH, Upper	$393.08	1
<624B74B	LR154248	STRUT - LOAD FLOOR	LR154248 STRUT - LOAD FLOOR Lower	$291.94	1
<0606	LR152487	STAY - TAILGATE	LR152487 STAY - TAILGATE RH	$81.06	1
<0606	LR153785	STAY - TAILGATE	LR153785 STAY - TAILGATE LH	$78.46	1
HB1	LR155086	BOLT AND WASHER - HEX.HEAD	LR155086 BOLT AND WASHER - HEX.HEAD Bolt And Washer, Hinge, M8 x 27MM, Torx, Upper	$1.45	4
HN1	LR155085	NUT	LR155085 NUT Hexagonal Head, Hinge, M8, Nut And Washer, Upper	$2.33	4
HN2	LR142475	NUT - HEX.	LR142475 NUT - HEX. Hexagonal Head, M5 X 0.8	$1.38	1
HS1	RYP500200	SCREW	RYP500200 SCREW Hexagonal Head, M6 X 20MM, Stay	$0.94	4
HS2	RYG501160	SCREW	RYG501160 SCREW Bolt And Washer, Hexagonal Head, Hinge, Lower, M8X25	$1.49	10
HS2	RYG501160	SCREW	RYG501160 SCREW Actuator, Bolt And Washer, Hexagonal Head, M8X25	$1.49	3
HS3	LR155061	SCREW AND WASHER	LR155061 SCREW AND WASHER Hinge, M6 X 8MM, Single, Torx, Upper	$1.77	1
HT1	LR154517	STUD - BALL	LR154517 STUD - BALL M8 X 20MM, Strut, Upper	$5.48	2
274A82	LR088967	SEAL - COVER IN STOCK	LR088967 SEAL - COVER IN STOCK	$3.60	2
40400A	LR154572	TAILGATE COMPLETE	LR154572 TAILGATE COMPLETE Upper	$3,141.24	1
40400B	LR151861	TAILGATE - LESS HINGES	LR151861 TAILGATE - LESS HINGES Lower	$539.35	1
42900A	LR151628	HINGE - TAILGATE	LR151628 HINGE - TAILGATE RH, Lower	$91.97	1
42900A	LR151629	HINGE - TAILGATE	LR151629 HINGE - TAILGATE LH, Lower	$91.97	1
42900B	LR151646	HINGE - TAILGATE	LR151646 HINGE - TAILGATE RH, Upper	$57.16	1
42900C	LR151649	HINGE - TAILGATE	LR151649 HINGE - TAILGATE LH, Upper	$58.23	1
