Engine Mounting (4.4 V8 Turbo Petrol (Nc10))

Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10]

Find Your Part

Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10] - Engine Mounting (4.4 V8 Turbo Petrol (NC10))

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR038568 BOLT $2.53 To Order
Photo Part No Description Price (each) Stock
LR011068 BOLT $2.77 To Order
Photo Part No Description Price (each) Stock
LR151935 BOLT $0.97 To Order
Photo Part No Description Price (each) Stock
LR118800 BOLT AND WASHER - HEX.HEAD $3.07 IN STOCK
Photo Part No Description Price (each) Stock
LR161944 BOLT $1.83 IN STOCK
Photo Part No Description Price (each) Stock
LR003574 BOLT $2.91 IN STOCK
Photo Part No Description Price (each) Stock
FB106116 BOLT - HEX.HEAD $0.99 To Order
Photo Part No Description Price (each) Stock
LR151927 NUT $2.91 To Order
Photo Part No Description Price (each) Stock
LR161943 NUT $0.52 To Order
Photo Part No Description Price (each) Stock
RYG501160 SCREW $1.51 To Order
Photo Part No Description Price (each) Stock
LR175596 Bracket $61.07 To Order
Photo Part No Description Price (each) Stock
LR158523 DAMPER $154.65 IN STOCK
Photo Part No Description Price (each) Stock
LR151993 BRACKET - ENGINE FRONT SUPPORT $269.73 To Order
Photo Part No Description Price (each) Stock
LR152002 BRACKET - ENGINE FRONT SUPPORT $262.02 To Order
Photo Part No Description Price (each) Stock
LR152020 BRACKET - ENGINE MOUNTING $64.58 To Order
Photo Part No Description Price (each) Stock
LR158518 DAMPER - VIBRATION $261.96 To Order
Photo Part No Description Price (each) Stock
LR141060 DAMPER - VIBRATION $141.16 To Order
Photo Part No Description Price (each) Stock
LR151958 WASHER - RUBBER $17.26 To Order
Photo Part No Description Price (each) Stock
LR172203 BRACKET - ENGINE MOUNTING $182.69 To Order
Photo Part No Description Price (each) Stock
LR172202 BRACKET - ENGINE MOUNTING $182.27 To Order
View All

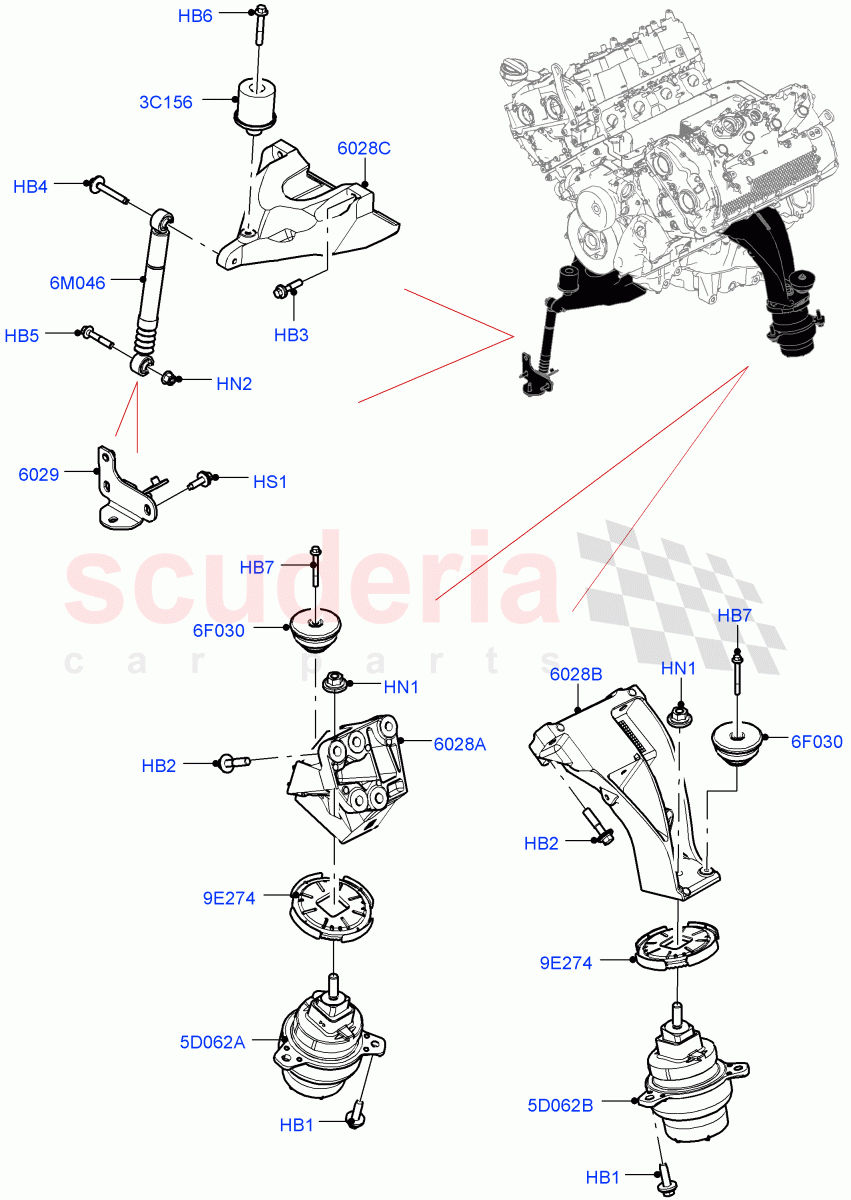

Engine Mounting (4.4 V8 Turbo Petrol (NC10)) of Land Rover Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR038568
BOLT
Engine Mounting To Subframe, Hexagonal Head, M10 x 35MM 		$2.53 6
HB2 LR011068
BOLT
Bolt And Washer, Engine Mounting Bracket To Block, M10 X 45 		$2.77 10
HB3 LR151935
BOLT
Engine Mounting Bracket To Sump, Front, M8 x 38MM 		$0.97 4
HB4 LR118800
BOLT AND WASHER - HEX.HEAD
Damper To Engine Bracket, M8 x 55MM, Washer - 24 mm
IN STOCK 		$3.07 1
HB5 LR161944
BOLT
Damper To Subframe Bracket, M8 X 45MM
IN STOCK 		$1.83 1
HB6 LR003574
BOLT
Front Vibration Damper, Hexagonal Head, M8 x 60MM
IN STOCK 		$2.91 1
HB7 FB106116
BOLT - HEX.HEAD
M6 x 55MM, RH/LH, Vibration Damper 		$0.99 2
HN1 LR151927
NUT
Engine Mounting To Engine Bracket, M12 		$2.91 2
HN2 LR161943
NUT
Damper To Subframe Bracket, M8 		$0.52 1
HS1 RYG501160
SCREW
Bolt And Washer, Bracket To Subframe, Hexagonal Head, M8X25 		$1.51 3
3C156 LR158523
DAMPER
Front
IN STOCK 		$154.65 1
5D062A LR172203
BRACKET - ENGINE MOUNTING
RH 		$182.69 1
5D062B LR172202
BRACKET - ENGINE MOUNTING
LH 		$182.27 1
6F030 LR158518
DAMPER - VIBRATION
RH/LH, Vibration 		$261.96 2
6M046 LR141060
DAMPER - VIBRATION
Engine Mounting, Front 		$141.16 1
9E274 LR151958
WASHER - RUBBER
RH/LH, Snubber 		$17.26 2
6028A LR151993
BRACKET - ENGINE FRONT SUPPORT
RH 		$269.73 1
6028B LR152002
BRACKET - ENGINE FRONT SUPPORT
LH 		$262.02 1
6028C LR152020
BRACKET - ENGINE MOUNTING
Front 		$64.58 1
6029 LR175596
Bracket
To Front Subframe 		$61.07 1
