Transmission Harness

Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6]

Find Your Part

Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6] - Transmission Harness

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FX106046 NUT - FLANGED $0.60 IN STOCK
Photo Part No Description Price (each) Stock
LR115590 NUT AND WASHER - HEX. $1.31 To Order
Photo Part No Description Price (each) Stock
LR142069 SCREW $0.36 To Order
Photo Part No Description Price (each) Stock
LR159042 WIRING - TRANSMISSION $168.61 To Order
LR159043 WIRING - TRANSMISSION $168.61 To Order
LR159048 WIRING - TRANSMISSION $168.61 To Order
...and 4 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR159073 BRACKET $9.39 To Order
Photo Part No Description Price (each) Stock
LR159219 BRACKET $12.49 To Order
Photo Part No Description Price (each) Stock
LR159072 BRACKET $9.39 To Order
View All

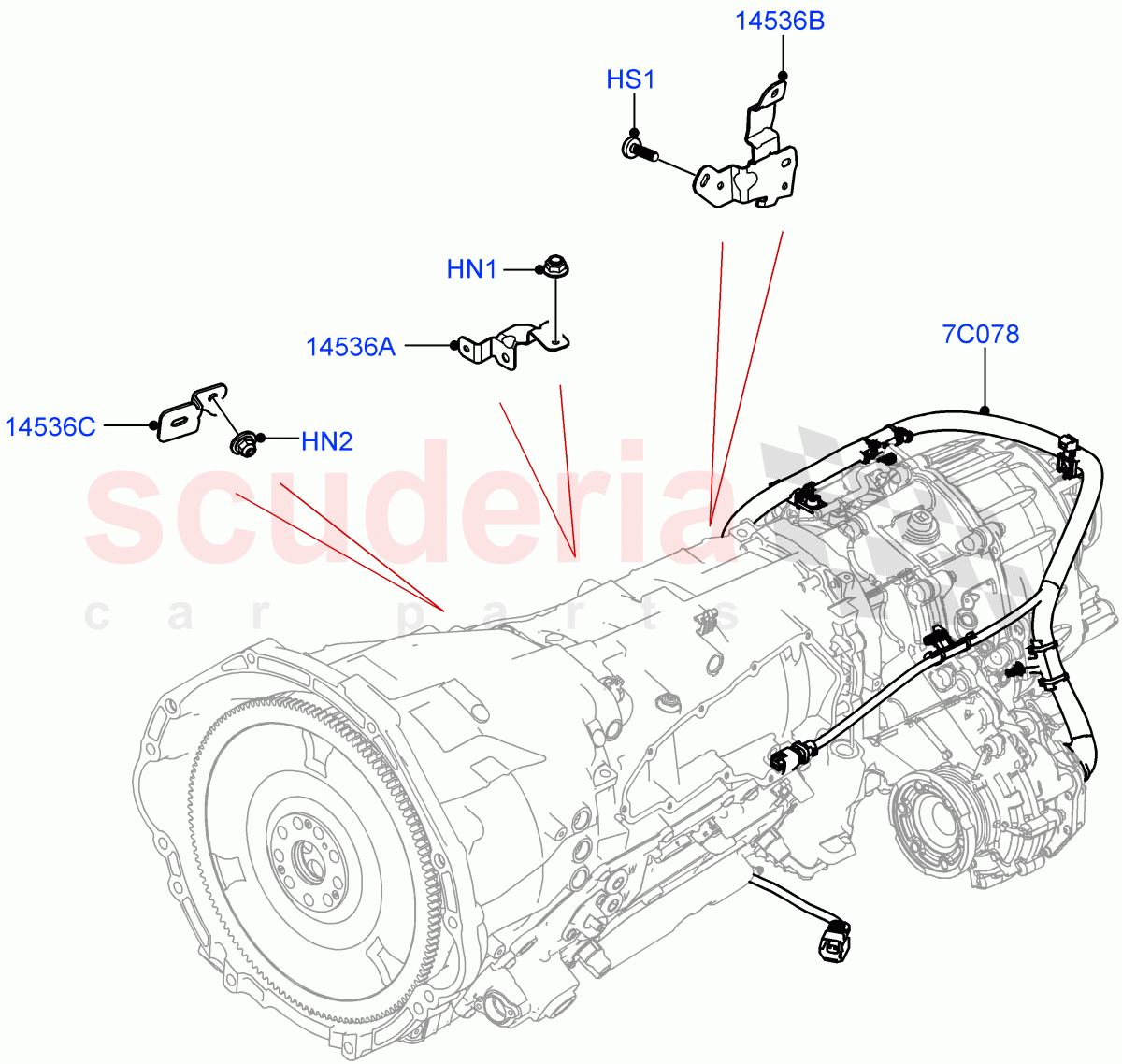

Transmission Harness of Land Rover Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HN1 FX106046
NUT - FLANGED
Cradle Tray Bracket, Hexagonal Head, M6
IN STOCK 		$0.60 2
HN2 LR115590
NUT AND WASHER - HEX.
Hexagonal Head, M6, Transmission Inline Bracket 		$1.31 1
HS1 LR142069
SCREW
Bracket To Engine, M6X18 		$0.36 4
7C078 LR159042
WIRING - TRANSMISSION
3.0L AJ20D6 Diesel High, 8 Speed Auto Trans ZF 8HP76, Drive Line Disconnect, Stage V European Emissions, With Diesel Exh Fluid Emission Tank 		$168.61 1
7C078 LR159043
WIRING - TRANSMISSION
3.0L AJ20D6 Diesel High, 8 Speed Auto Trans ZF 8HP76, Drive Line Disconnect, L7 Emission - Brazil, Less Emission Tank 		$168.61 1
7C078 LR159048
WIRING - TRANSMISSION
4.4 V8 Turbo Petrol (NC10), 8 Speed Auto Trans ZF 8HP76, Drive Line Disconnect, EU2, Less Emission Tank 		$168.61 1
7C078 LR159050
WIRING - TRANSMISSION
4.4 V8 Turbo Petrol (NC10), 8 Speed Auto Trans ZF 8HP76, Drive Line Disconnect, EU6D - Final (Petrol) Emission, Less Emission Tank 		$168.61 1
7C078 LR159046
WIRING - TRANSMISSION
3.0L AJ20P6 Petrol High, 8 Speed Auto Trans ZF 8HP76, Drive Line Disconnect, Less Emission Tank, SULEV Requirements 		$159.84 1
7C078 LR159052
WIRING - TRANSMISSION
3.0L AJ20P6 Petrol High, 8 Speed Auto Trans ZF 8HP76, EU2, Less Driveline, Less Emission Tank 		$168.61 1
7C078 LR164263
WIRING - TRANSMISSION
3.0L AJ20P6 Petrol High, 8 Speed Auto Trans ZF 8HP76, Drive Line Disconnect, EU2, Less Emission Tank 		$179.97 1
14536A LR159073
BRACKET
Cradle Tray Bracket 		$9.39 1
14536B LR159219
BRACKET
Bracket To Engine 		$12.49 1
14536C LR159072
BRACKET
Transmission Inline Bracket 		$9.39 1
