Name: Hybrid Electrical Modules (MHEV Charging Cables and Fixings) (Electric Engine Battery-MHEV)
Rating: 4.5 (1 reviews)

Hybrid Electrical Modules (MHEV Charging Cables and Fixings) (Electric Engine Battery-MHEV) of Land Rover Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6]

View All

Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6] - Hybrid Electrical Modules (MHEV Charging Cables and Fixings) (Electric Engine Battery-MHEV)

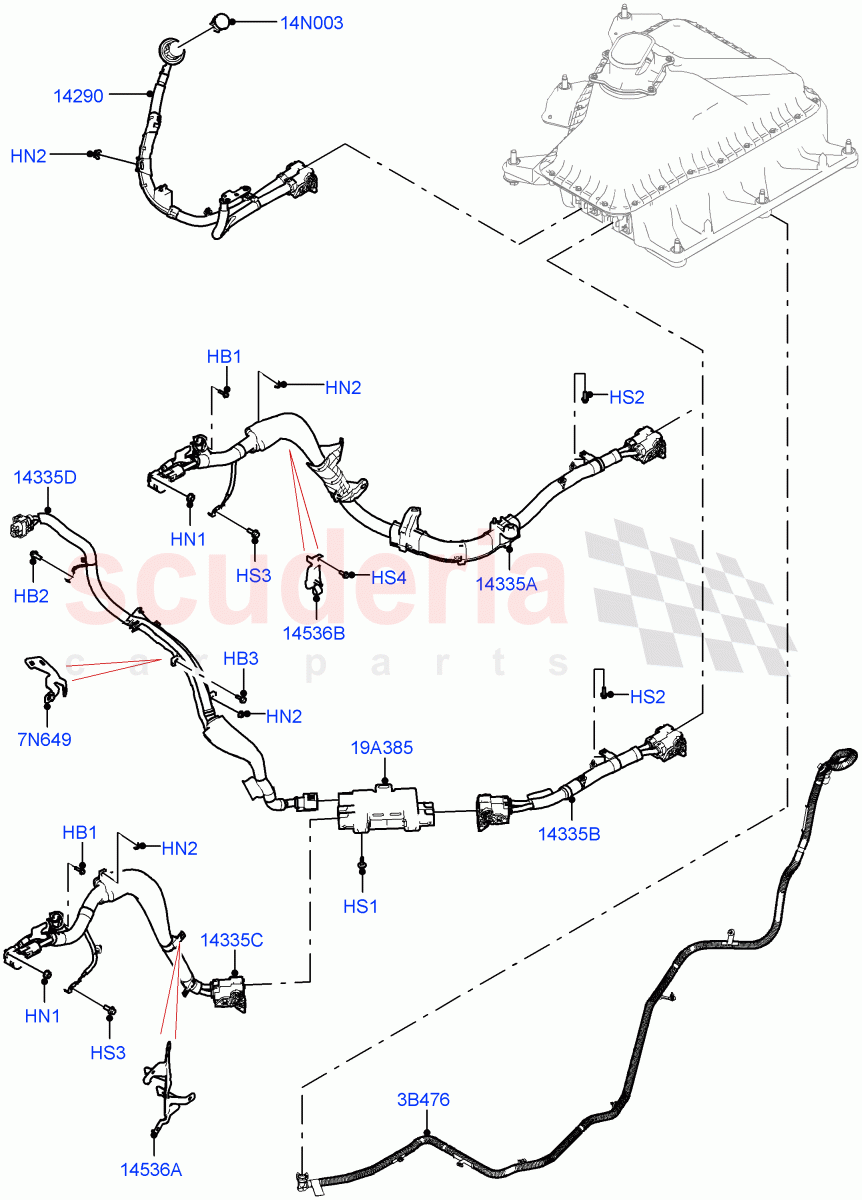

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR154099	BOLT - HEX.HEAD	$1.36	To Order

Photo	Part No	Description	Price (each)	Stock
	FS108206	BOLT	$2.29	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR028253	BOLT	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	LR122999	NUT - HEX.	$3.04	To Order

Photo	Part No	Description	Price (each)	Stock
	LR154100	NUT - FLANGED	$0.53	To Order
	LR154100	NUT - FLANGED	$0.53	To Order
	LR154100	NUT - FLANGED	$0.53	To Order

Photo	Part No	Description	Price (each)	Stock
	LR066438	SCREW	$3.07	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106206	SCREW	$0.96	IN STOCK
	FS106206	SCREW	$0.96	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR124564	SCREW	$2.24	To Order

Photo	Part No	Description	Price (each)	Stock
	LR122583	SCREW	$2.19	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159225	CABLE - TRUNK	$318.80	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153033	HOSE - VENT	$99.22	To Order
	LR153032	HOSE - VENT	$99.22	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159074	BRACKET - WIRING	$11.27	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153007	CABLE - UNDERBODY	$326.69	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159252	CABLE - UNDERBODY	$314.09	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159251	CABLE	$245.21	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159253	CABLE	$267.37	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158179	BRACKET - WIRING	$16.64	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159070	BRACKET	$18.76	To Order

Photo	Part No	Description	Price (each)	Stock
	LR163553	COVER - WIRING	$7.16	To Order

Photo	Part No	Description	Price (each)	Stock
	LR172310	JUNCTION BOX	$649.18	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR154099	BOLT - HEX.HEAD	LR154099 BOLT - HEX.HEAD M5 x 20MM	$1.36	1
HB2	FS108206	BOLT IN STOCK	FS108206 BOLT 3.0L AJ20P6 Petrol High / Hexagonal Head, M8 X 20MM IN STOCK	$2.29	1
HB3	LR028253	BOLT	LR028253 BOLT 3.0L AJ20P6 Petrol High / M6 X 16MM	$1.51	2
HN1	LR122999	NUT - HEX.	LR122999 NUT - HEX. M8	$3.04	2
HN2	LR154100	NUT - FLANGED	LR154100 NUT - FLANGED 3.0L AJ20D6 Diesel High / M6	$0.53	1
HN2	LR154100	NUT - FLANGED	LR154100 NUT - FLANGED 3.0L AJ20P6 Petrol High / Junction Box To Alternator, M6	$0.53	3
HN2	LR154100	NUT - FLANGED	LR154100 NUT - FLANGED 3.0L AJ20P6 Petrol High / Junction Box To Charger, M6	$0.53	2
HS1	LR066438	SCREW	LR066438 SCREW 3.0L AJ20P6 Petrol High / Hexagonal Head, M6 X 20MM	$3.07	3
HS2	FS106206	SCREW IN STOCK	FS106206 SCREW 3.0L AJ20P6 Petrol High / Hexagonal Head, M6 X 20MM IN STOCK	$0.96	1
HS2	FS106206	SCREW IN STOCK	FS106206 SCREW 3.0L AJ20D6 Diesel High / Hexagonal Head, M6 X 20MM IN STOCK	$0.96	5
HS3	LR124564	SCREW	LR124564 SCREW Hexagonal Head, M8 X 20MM, Taptite	$2.24	1
HS4	LR122583	SCREW	LR122583 SCREW 3.0L AJ20D6 Diesel High / D6 Engine Bracket, Hexagonal Head, M6 X 16	$2.19	1
3B476	LR153033	HOSE - VENT	LR153033 HOSE - VENT Long Wheelbase	$99.22	1
3B476	LR153032	HOSE - VENT	LR153032 HOSE - VENT Standard Wheelbase	$99.22	1
7N649	LR159074	BRACKET - WIRING	LR159074 BRACKET - WIRING 3.0L AJ20P6 Petrol High / Electronic Super Charger Bracket, Junction Box To Charger	$11.27	1
14N003	LR163553	COVER - WIRING	LR163553 COVER - WIRING DC/DC Passthrough Cover	$7.16	1
19A385	LR172310	JUNCTION BOX	LR172310 JUNCTION BOX 3.0L AJ20P6 Petrol High	$649.18	1
14290	LR159225	CABLE - TRUNK	LR159225 CABLE - TRUNK DC/DC Harness	$318.80	1
14335A	LR153007	CABLE - UNDERBODY	LR153007 CABLE - UNDERBODY 3.0L AJ20D6 Diesel High	$326.69	1
14335B	LR159252	CABLE - UNDERBODY	LR159252 CABLE - UNDERBODY 3.0L AJ20P6 Petrol High / Battery To Junction Box	$314.09	1
14335C	LR159251	CABLE	LR159251 CABLE 3.0L AJ20P6 Petrol High / Junction Box To Alternator	$245.21	1
14335D	LR159253	CABLE	LR159253 CABLE 3.0L AJ20P6 Petrol High / Junction Box To Charger	$267.37	1
14536A	LR158179	BRACKET - WIRING	LR158179 BRACKET - WIRING 3.0L AJ20P6 Petrol High / Junction Box To Alternator, P6 Body Bracket	$16.64	1
14536B	LR159070	BRACKET	LR159070 BRACKET 3.0L AJ20D6 Diesel High / D6 Engine Bracket	$18.76	1

Hybrid Electrical Modules (Mhev Charging Cables And Fixings) (Electric Engine Battery-Mhev)

Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6]

Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6] - Hybrid Electrical Modules (MHEV Charging Cables and Fixings) (Electric Engine Battery-MHEV)
