Name: Speakers (Meridian 3D Surround Sound System)
Rating: 5.0 (1 reviews)

Speakers (Meridian 3D Surround Sound System) of Land Rover Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6]

View All

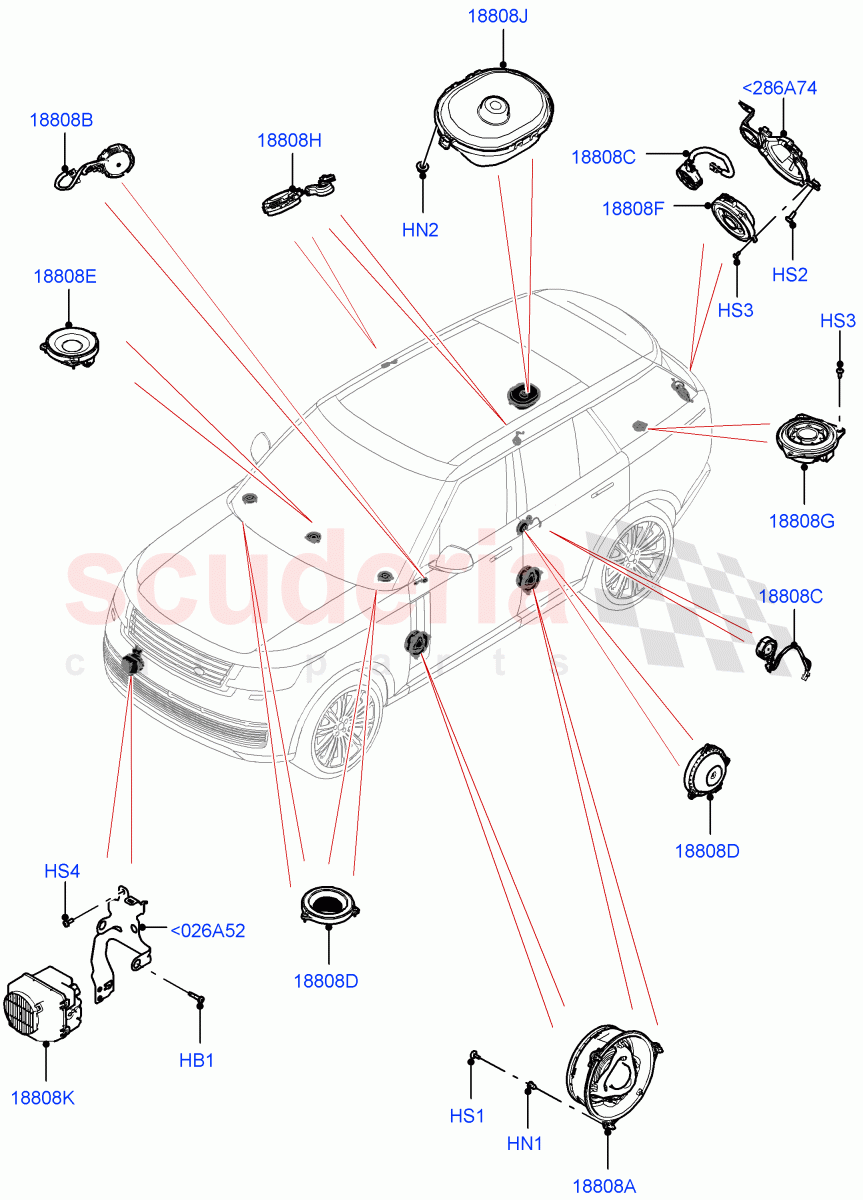

Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6] - Speakers (Meridian 3D Surround Sound System)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR042803	BOLT	$1.24	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR095131	NUT	$1.68	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500570	NUT - ADJUSTING	$2.85	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010155	SCREW	$1.32	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027974	SCREW - SELF-TAPPING	$1.29	To Order

Photo	Part No	Description	Price (each)	Stock
	LR132558	SCREW	$0.84	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP500950	SCREW	$0.67	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR151884	SPEAKER	$146.14	To Order
	LR174261	Speaker	$131.95	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159569	SPEAKER	$78.05	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR151881	SPEAKER	$68.78	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151890	SPEAKER	$74.29	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151888	SPEAKER	$74.29	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR151882	SPEAKER	$71.20	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151883	SPEAKER	$76.90	To Order

Photo	Part No	Description	Price (each)	Stock
	LR182127	SPEAKER	$68.28	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151885	SPEAKER	$146.14	To Order

Photo	Part No	Description	Price (each)	Stock
	LR146337	SPEAKER	$140.28	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153823	BRACKET - SPEAKER	$19.11	To Order

Photo	Part No	Description	Price (each)	Stock
	LR156093	BRACKET - SPEAKER	$38.40	To Order
	LR156094	BRACKET - SPEAKER	$38.40	To Order
	LR173155	Bracket - Speaker	$36.19	To Order

...and 1 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<026A52	LR153823	BRACKET - SPEAKER	LR153823 BRACKET - SPEAKER External Sound Enhancement / Front Bumper	$19.11	1
<286A74	LR156093	BRACKET - SPEAKER	LR156093 BRACKET - SPEAKER Flip Flop Floor-Lights and Speakers / RH, Tailgate / To: NA000675	$38.40	1
<286A74	LR156094	BRACKET - SPEAKER	LR156094 BRACKET - SPEAKER Flip Flop Floor-Lights and Speakers / LH, Tailgate / To: NA000675	$38.40	1
<286A74	LR173155	Bracket - Speaker	LR173155 Bracket - Speaker Flip Flop Floor-Lights and Speakers / RH, Tailgate / From: NA000676	$36.19	1
<286A74	LR173156	Bracket - Speaker	LR173156 Bracket - Speaker Flip Flop Flr w Cshn,Lght,Spkr / LH, Tailgate / From: NA000676	$36.19	1
HB1	LR042803	BOLT IN STOCK	LR042803 BOLT External Sound Enhancement / Front Bumper, M6 x 28MM, Torx IN STOCK	$1.24	2
HN1	LR095131	NUT	LR095131 NUT 5X8X8X0.6-2.9, Expansion Nut, Front And Rear Doors, Woofer	$1.68	12
HN2	RYH500570	NUT - ADJUSTING	RYH500570 NUT - ADJUSTING Luggage Compartment, M6, Sub-Woofer	$2.85	4
HS1	LR010155	SCREW	LR010155 SCREW Front And Rear Doors, M5 X 16MM, Torx, Woofer	$1.32	12
HS2	LR027974	SCREW - SELF-TAPPING	LR027974 SCREW - SELF-TAPPING Flip Flop Floor-Lights and Speakers / Bracket, M6X16, RH/LH, Tailgate	$1.29	8
HS3	LR132558	SCREW	LR132558 SCREW Flip Flop Floor-Lights and Speakers / 4 x 10MM, RH/LH, speaker, Tailgate, Torx	$0.84	6
HS4	RYP500950	SCREW IN STOCK	RYP500950 SCREW External Sound Enhancement / Front Bumper, M6 X 16MM, Torx IN STOCK	$0.67	2
18808A	LR151884	SPEAKER	LR151884 SPEAKER Front And Rear Doors, Woofer / To: NA000671	$146.14	4
18808A	LR174261	Speaker	LR174261 Speaker Front And Rear Doors, Woofer / From: NA000672	$131.95	4
18808B	LR159569	SPEAKER IN STOCK	LR159569 SPEAKER Front Doors, Tweeter IN STOCK	$78.05	2
18808C	LR151881	SPEAKER	LR151881 SPEAKER Rear Doors, Tweeter	$68.78	2
18808D	LR151890	SPEAKER	LR151890 SPEAKER Mid Range, Rear Doors	$74.29	2
18808E	LR151888	SPEAKER IN STOCK	LR151888 SPEAKER Cockpit, Mid Range IN STOCK	$74.29	1
18808F	LR151882	SPEAKER	LR151882 SPEAKER Flip Flop Floor-Lights and Speakers / Mid Range, RH/LH, Tailgate	$71.20	2
18808G	LR151883	SPEAKER	LR151883 SPEAKER Luggage Compartment, Mid Range, RH/LH	$76.90	2
18808H	LR182127	SPEAKER	LR182127 SPEAKER Front, Headliner, RH/LH, Tweeter	$68.28	2
18808J	LR151885	SPEAKER	LR151885 SPEAKER Luggage Compartment, Sub-Woofer	$146.14	1
18808K	LR146337	SPEAKER	LR146337 SPEAKER External Sound Enhancement / Front Bumper	$140.28	1

Speakers (Meridian 3D Surround Sound System)

Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6]

Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6] - Speakers (Meridian 3D Surround Sound System)
