Radiator/Coolant Overflow Container (3.0L Aj20D6 Diesel High)

Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6]

Find Your Part

Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6] - Radiator/Coolant Overflow Container (3.0L AJ20D6 Diesel High)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS106126 BOLT $0.52 IN STOCK
Photo Part No Description Price (each) Stock
LR152219 BOLT $1.67 To Order
Photo Part No Description Price (each) Stock
LR152160 NUT - FLANGED $1.04 To Order
Photo Part No Description Price (each) Stock
FS106166 SCREW $1.24 IN STOCK
Photo Part No Description Price (each) Stock
LR038052 SCREW $2.49 IN STOCK
Photo Part No Description Price (each) Stock
AYP500110 SCREW $0.96 IN STOCK
Photo Part No Description Price (each) Stock
VYF500090 WASHER $0.81 To Order
Photo Part No Description Price (each) Stock
LR152200 RADIATOR $473.93 To Order
Photo Part No Description Price (each) Stock
LR152213 BRACKET - RADIATOR $63.17 IN STOCK
Photo Part No Description Price (each) Stock
LR151581 CAP - OVERFLOW CONTAINER $18.82 To Order
Photo Part No Description Price (each) Stock
LR157033 BRACKET - SUPPORT $6.62 IN STOCK
Photo Part No Description Price (each) Stock
LR152143 INSULATOR - RADIATOR MOUNTING $6.04 To Order
Photo Part No Description Price (each) Stock
LR150472 INSULATOR - RADIATOR SUPPORT $5.75 To Order
Photo Part No Description Price (each) Stock
LR145134 INSULATOR - RADIATOR SUPPORT $5.77 To Order
Photo Part No Description Price (each) Stock
104123633 TANK - RADIATOR OVERFLOW $81.64 To Order
Photo Part No Description Price (each) Stock
LR152201 BRACKET - RADIATOR $57.42 IN STOCK
Photo Part No Description Price (each) Stock
LR152154 MOTOR AND FAN - ENGINE COOLING $992.58 To Order
LR152151 MOTOR AND FAN - ENGINE COOLING $1,101.60 To Order
Photo Part No Description Price (each) Stock
LR152211 BRACKET - RADIATOR $57.42 To Order
Photo Part No Description Price (each) Stock
LR152208 BRACKET - RADIATOR $63.17 To Order
View All

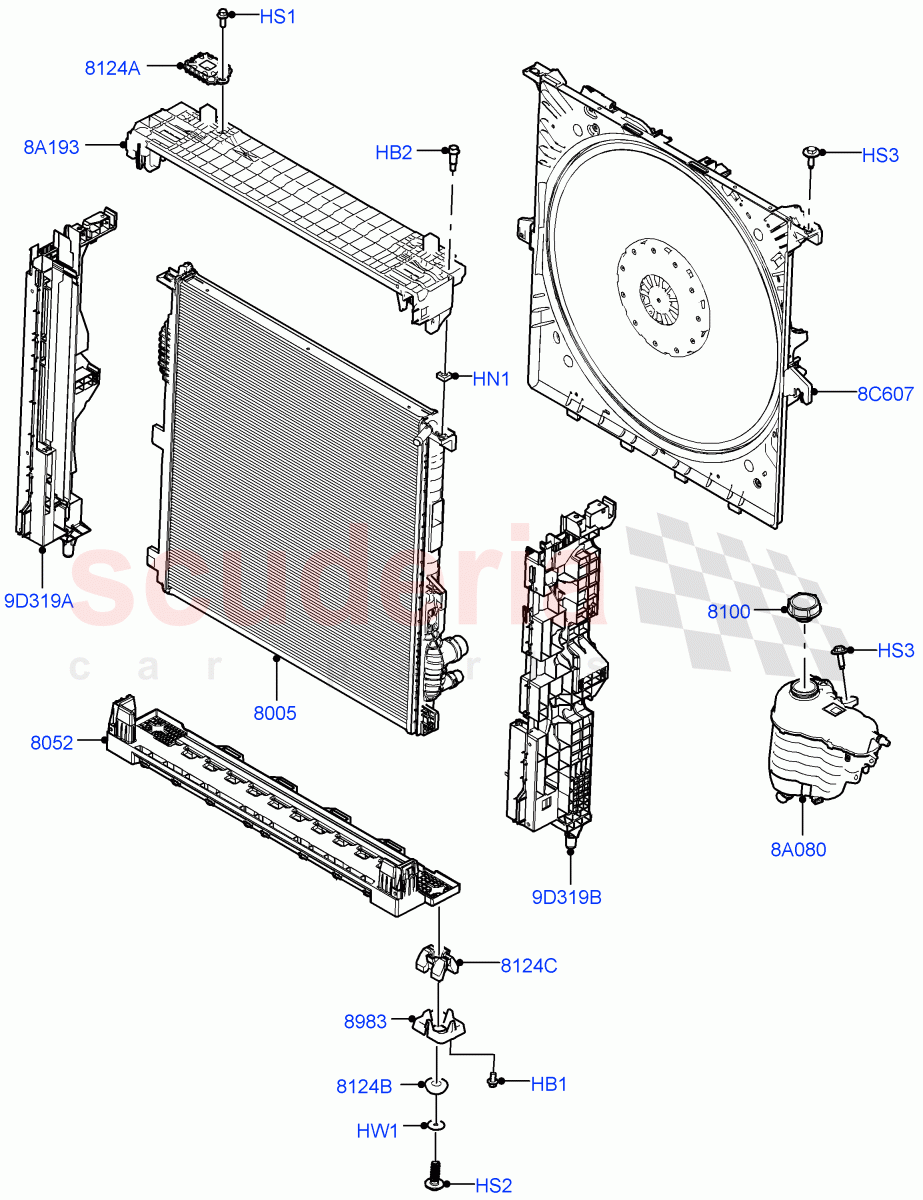

Radiator/Coolant Overflow Container (3.0L AJ20D6 Diesel High) of Land Rover Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS106126
BOLT
Hexagonal Head, M6 x 12MM
IN STOCK 		$0.52 2
HB2 LR152219
BOLT
M6 		$1.67 2
HN1 LR152160
NUT - FLANGED
M6, Square 		$1.04 3
HS1 FS106166
SCREW
Hexagonal Head, M6 X 16MM
IN STOCK 		$1.24 2
HS2 LR038052
SCREW
8 x 24MM, Torx
IN STOCK 		$2.49 2
HS3 AYP500110
SCREW
Bolt And Washer, Hexagonal Head, M6 X 20MM
IN STOCK 		$0.96 3
HW1 VYF500090
WASHER
8.4 X 31 X 1.6 		$0.81 2
8A080 104123633
TANK - RADIATOR OVERFLOW 		$81.64 1
8A193 LR152201
BRACKET - RADIATOR
Top
IN STOCK 		$57.42 1
8C607 LR152154
MOTOR AND FAN - ENGINE COOLING
Engine Cooilng Fan 850W 		$992.58 1
8C607 LR152151
MOTOR AND FAN - ENGINE COOLING
Engine Cooling Fan-Twin 1000W/350W 		$1,101.60 1
9D319A LR152211
BRACKET - RADIATOR
RH 		$57.42 1
9D319B LR152208
BRACKET - RADIATOR
LH 		$63.17 1
8005 LR152200
RADIATOR 		$473.93 1
8052 LR152213
BRACKET - RADIATOR
Bottom
IN STOCK 		$63.17 1
8100 LR151581
CAP - OVERFLOW CONTAINER 		$18.82 1
8124A LR152143
INSULATOR - RADIATOR MOUNTING
Upper 		$6.04 2
8124B LR150472
INSULATOR - RADIATOR SUPPORT
Bottom, Support 		$5.75 2
8124C LR145134
INSULATOR - RADIATOR SUPPORT
Radiator Support 		$5.77 2
8983 LR157033
BRACKET - SUPPORT
Lower, RH/LH
IN STOCK 		$6.62 2
