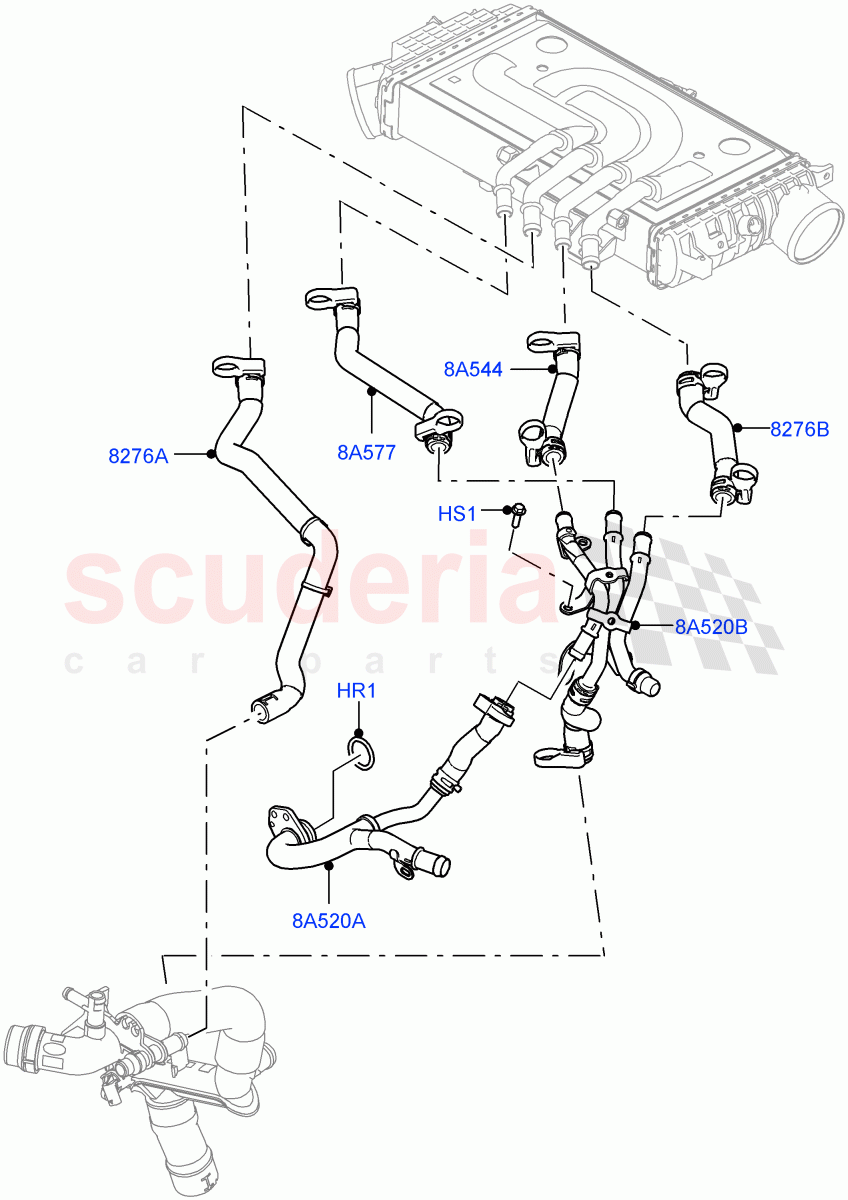

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR165691	RING - SEALING	$6.00	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071774	SCREW	$2.31	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125477	HOSE - WATER INLET	$49.60	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125476	HOSE - WATER INLET	$67.65	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125617	HOSE - WATER	$123.35	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125618	HOSE - WATER	$45.47	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125490	TUBE - WATER OUTLET	$54.06	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125491	TUBE - WATER OUTLET	$24.48	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HR1	LR165691	RING - SEALING	LR165691 RING - SEALING	$6.00	1
HS1	LR071774	SCREW	LR071774 SCREW Hexagonal Head, M6 X 20MM	$2.31	5
8A520A	LR125490	TUBE - WATER OUTLET	LR125490 TUBE - WATER OUTLET To Cylinder Head	$54.06	1
8A520B	LR125491	TUBE - WATER OUTLET	LR125491 TUBE - WATER OUTLET Assembly	$24.48	1
8A544	LR125617	HOSE - WATER	LR125617 HOSE - WATER Inlet, Water Charge Air Cooler	$123.35	1
8A577	LR125618	HOSE - WATER	LR125618 HOSE - WATER Outlet, Water Charge Air Cooler	$45.47	1
8276A	LR125477	HOSE - WATER INLET	LR125477 HOSE - WATER INLET Intercooler Outlet	$49.60	1
8276B	LR125476	HOSE - WATER INLET	LR125476 HOSE - WATER INLET Intercooler Inlet	$67.65	1
