Cooling System Pipes And Hoses (3.0L Aj20D6 Diesel High, Less Engine Cooling System)

Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6]

Find Your Part

Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6] - Cooling System Pipes And Hoses (3.0L AJ20D6 Diesel High, Less Engine Cooling System)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR175780 Clip $1.06 To Order
Photo Part No Description Price (each) Stock
LR175782 Clip $1.00 To Order
Photo Part No Description Price (each) Stock
LR175726 Plug $7.25 To Order
Photo Part No Description Price (each) Stock
LR175725 Plug $21.75 To Order
Photo Part No Description Price (each) Stock
LR175790 O-Ring $1.66 To Order
Photo Part No Description Price (each) Stock
LR175788 O-Ring $0.82 To Order
Photo Part No Description Price (each) Stock
RYG500160 SCREW $0.63 To Order
Photo Part No Description Price (each) Stock
LR151572 HOSE - WATER $44.59 To Order
Photo Part No Description Price (each) Stock
LR085933 PLUG - BLANKING $4.63 To Order
Photo Part No Description Price (each) Stock
LR151527 TUBE - HEATER WATER $85.81 To Order
Photo Part No Description Price (each) Stock
LR152527 HOSE - RADIATOR $97.47 To Order
Photo Part No Description Price (each) Stock
LR151559 HOSE - COOLING SYSTEM $108.10 To Order
Photo Part No Description Price (each) Stock
LR151607 HOSE - WATER $97.11 To Order
Photo Part No Description Price (each) Stock
LR151676 HOSE - WATER $69.00 To Order
LR174696 Hose - Water $65.97 To Order
Photo Part No Description Price (each) Stock
LR151639 HOSE - COOLANT BLEED $50.00 To Order
Photo Part No Description Price (each) Stock
LR151630 HOSE - RADIATOR $74.81 To Order
Photo Part No Description Price (each) Stock
LR151697 HOSE - RADIATOR $77.82 To Order
Photo Part No Description Price (each) Stock
LR151663 HOSE - WATER $81.03 To Order
Photo Part No Description Price (each) Stock
LR159226 WIRING - TRACTION BATTERY $81.36 To Order
View All

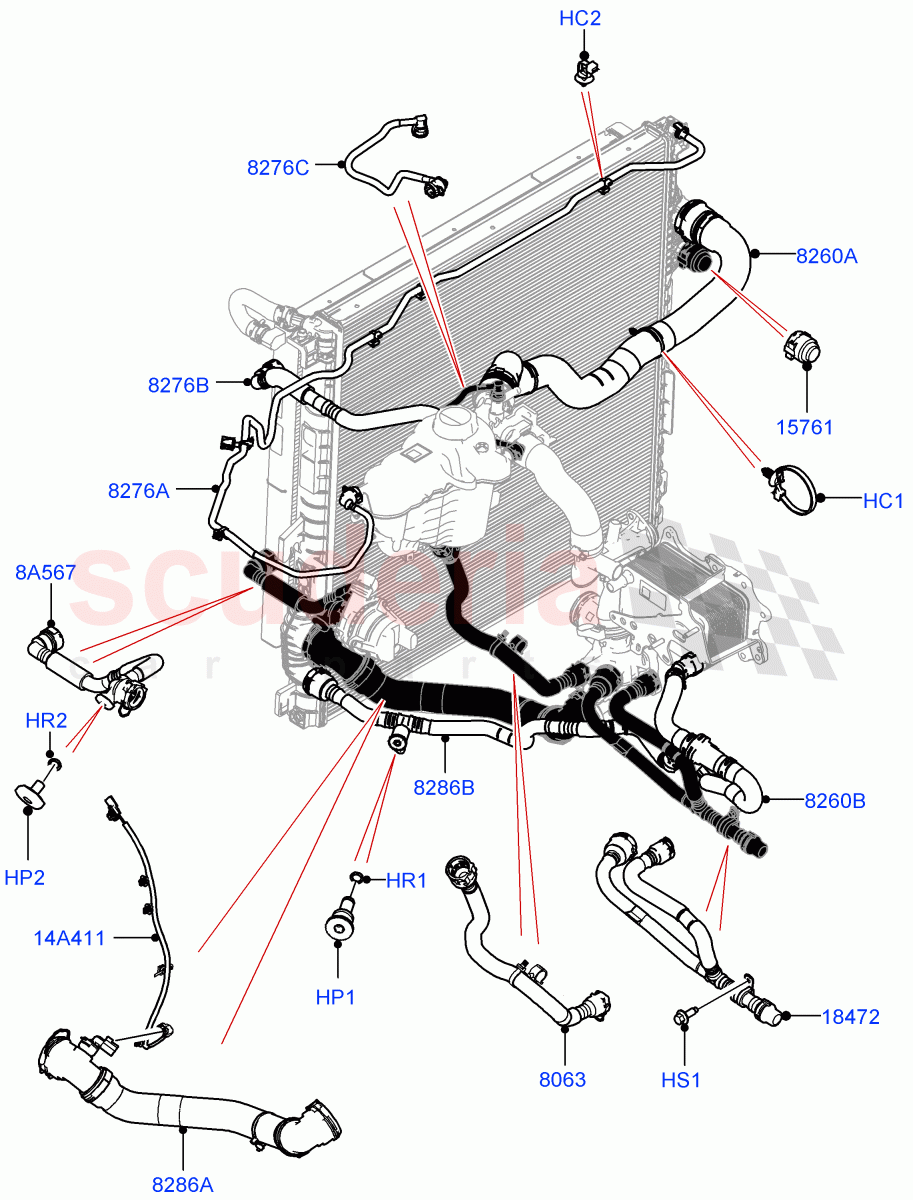

Cooling System Pipes And Hoses (3.0L AJ20D6 Diesel High, Less Engine Cooling System) of Land Rover Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 LR175780
Clip 		$1.06 2
HC2 LR175782
Clip
Single 		$1.00 3
HP1 LR175726
Plug
LH, Attaches To Bottom Of Radiator, Hose 		$7.25 1
HP2 LR175725
Plug
Hose, Inlet, Plastic, Water Pump 		$21.75 1
HR1 LR175790
O-Ring
Sealing Ring, Water Outlet 		$1.66 1
HR2 LR175788
O-Ring
Plug, Sealing Ring 		$0.82 1
HS1 RYG500160
SCREW
Hexagonal Head, M6 X 14MM 		$0.63 1
8A567 LR151663
HOSE - WATER
Inlet, Water Pump 		$81.03 1
14A411 LR159226
WIRING - TRACTION BATTERY 		$81.36 1
8063 LR151572
HOSE - WATER
Expansion Reservoir To Thermostat 		$44.59 1
8260A LR152527
HOSE - RADIATOR
Top 		$97.47 1
8260B LR151559
HOSE - COOLING SYSTEM
Oil Cooler Hose 		$108.10 1
8276A LR151607
HOSE - WATER
Radiator To Expansion Tank Bleed 		$97.11 1
8276B LR151676
HOSE - WATER
Intercooler Outlet / To: NA999999 		$69.00 1
8276B LR174696
Hose - Water
Intercooler Outlet / From: PA000001 		$65.97 1
8276C LR151639
HOSE - COOLANT BLEED
To Expansion Tank 		$50.00 1
8286A LR151630
HOSE - RADIATOR
Bottom 		$74.81 1
8286B LR151697
HOSE - RADIATOR
LH, Attaches To Bottom Of Radiator 		$77.82 1
15761 LR085933
PLUG - BLANKING 		$4.63 1
18472 LR151527
TUBE - HEATER WATER
To Thermostat 		$85.81 1
