Vacuum Control And Air Injection (4.4L Dohc Ditc V8 Diesel) ((V) Fromba000001)

Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC]

Find Your Part

Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC] - Vacuum Control And Air Injection (4.4L DOHC DITC V8 Diesel) ((V) FROMBA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS106122 BOLT $4.08 To Order
Photo Part No Description Price (each) Stock
LR020696 NUT - ADJUSTING $1.55 To Order
Photo Part No Description Price (each) Stock
RYG500190 SCREW $0.73 IN STOCK
Photo Part No Description Price (each) Stock
LR020697 SCREW $2.89 To Order
Photo Part No Description Price (each) Stock
LR022998 STUD $6.49 To Order
Photo Part No Description Price (each) Stock
LR083155 LR083155 $376.57 IN STOCK
Photo Part No Description Price (each) Stock
LR022842 GASKET - VACUUM PUMP $12.72 To Order
Photo Part No Description Price (each) Stock
LR022879 PIPE - VAC CONTROL TO TURBO VALVE $27.94 To Order
Photo Part No Description Price (each) Stock
LR022845 HOSE $476.28 To Order
LR076025 HOSE - VACUUM CONTROL HARNESS $352.15 To Order
Photo Part No Description Price (each) Stock
LR022849 HOSE - VACUUM CONTROL HARNESS $603.17 To Order
Photo Part No Description Price (each) Stock
LR022956 MANIFOLD - VACUUM SUPPLY $146.76 To Order
LR046915 HOSE - VACUUM $148.71 To Order
Photo Part No Description Price (each) Stock
LR022954 MANIFOLD - VACUUM SUPPLY $146.76 To Order
LR046916 HOSE - VACUUM $146.76 To Order
Photo Part No Description Price (each) Stock
LR022843 CLIP - WIRING $18.94 To Order
Photo Part No Description Price (each) Stock
LR022844 CLIP - WIRING $18.94 To Order
Photo Part No Description Price (each) Stock
LR021921 CLIP - WIRING $20.67 To Order
Photo Part No Description Price (each) Stock
LR022964 RETAINER - VACUUM HOSE $0.35 To Order
Photo Part No Description Price (each) Stock
LR022966 RETAINER - VACUUM HOSE $1.05 To Order
View All

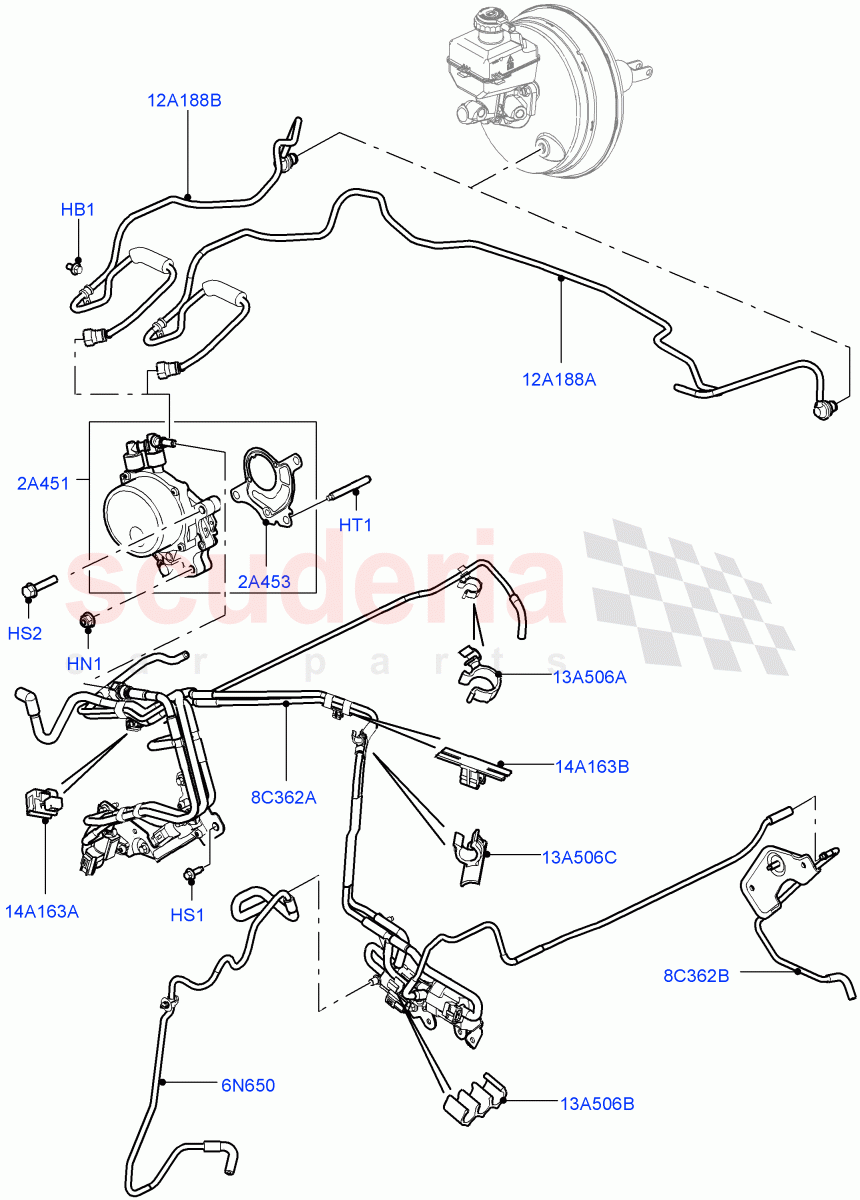

Vacuum Control And Air Injection (4.4L DOHC DITC V8 Diesel) ((V) FROMBA000001) of Land Rover Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS106122
BOLT
Hexagonal Head, M6 x 12MM / From: BA000001 		$4.08 2
HN1 LR020696
NUT - ADJUSTING
M8, Pump - Vacuum / From: BA000001 		$1.55 1
HS1 RYG500190
SCREW
Bracket, Hexagonal Head, M6 X 16MM, Main Vacuum Harness / From: BA000001
IN STOCK 		$0.73 8
HS2 LR020697
SCREW
M8 x 40MM, Pump - Vacuum / From: BA000001 		$2.89 2
HT1 LR022998
STUD
Pump - Vacuum / From: BA000001 		$6.49 1
2A451 LR083155
LR083155
From: BA000001
IN STOCK 		$376.57 1
2A453 LR022842
GASKET - VACUUM PUMP
Pump - Vacuum / From: BA000001 		$12.72 1
6N650 LR022879
PIPE - VAC CONTROL TO TURBO VALVE
From: BA000001 		$27.94 1
8C362A LR022845
HOSE
Engine Vacuum Harness, Includes Valves / From: BA000001 / To: CA393013 		$476.28 1
8C362A LR076025
HOSE - VACUUM CONTROL HARNESS
Engine Vacuum Harness, Includes Valves / From: CA393014 		$352.15 1
8C362B LR022849
HOSE - VACUUM CONTROL HARNESS
Turbocharger Assembly, Vacuum / From: BA000001 		$603.17 1
12A188A LR022956
MANIFOLD - VACUUM SUPPLY
LHD / Pump To Booster / From: BA000001 / To: CA381303 		$146.76 1
12A188A LR046915
HOSE - VACUUM
LHD / Pump To Booster / From: CA381304 		$148.71 1
12A188B LR022954
MANIFOLD - VACUUM SUPPLY
RHD / Pump To Booster / From: BA000001 / To: CA381303 		$146.76 1
12A188B LR046916
HOSE - VACUUM
RHD / Pump To Booster / From: CA381304 		$146.76 1
13A506A LR022843
CLIP - WIRING
From: BA000001 		$18.94 1
13A506B LR022844
CLIP - WIRING
From: BA000001 		$18.94 1
13A506C LR021921
CLIP - WIRING
Main Vacuum Harness / From: BA000001 		$20.67 1
14A163A LR022964
RETAINER - VACUUM HOSE
Main Vacuum Harness / From: BA000001 		$0.35 1
14A163B LR022966
RETAINER - VACUUM HOSE
Main Vacuum Harness / From: BA000001 		$1.05 1
