Exhaust Gas Recirculation (4.4L Dohc Ditc V8 Diesel) ((V) Fromba000001)

Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC]

Find Your Part

Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC] - Exhaust Gas Recirculation (4.4L DOHC DITC V8 Diesel) ((V) FROMBA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR023113 BOLT $9.04 To Order
Photo Part No Description Price (each) Stock
LR023111 BOLT $8.01 To Order
Photo Part No Description Price (each) Stock
LR023107 BOLT $12.01 To Order
Photo Part No Description Price (each) Stock
4654270 BOLT $7.42 To Order
Photo Part No Description Price (each) Stock
4147433 BOLT $1.64 IN STOCK
Photo Part No Description Price (each) Stock
4537592 BOLT - HEX.HEAD $2.52 To Order
Photo Part No Description Price (each) Stock
LR022772 GROMMET - EGR COOLER $4.60 To Order
Photo Part No Description Price (each) Stock
1255708 SCREW $9.34 To Order
Photo Part No Description Price (each) Stock
FS108306 SCREW $0.47 To Order
Photo Part No Description Price (each) Stock
4408651 SCREW $1.27 To Order
Photo Part No Description Price (each) Stock
LR020249 SCREW $1.24 To Order
Photo Part No Description Price (each) Stock
LR023143 CLAMP - HOSE $40.26 To Order
Photo Part No Description Price (each) Stock
LR023022 GASKET - EGR INLET $14.73 To Order
Photo Part No Description Price (each) Stock
LR023072 SEAL - EGR COOLER $7.56 To Order
Photo Part No Description Price (each) Stock
LR023158 VALVE - EXHAUST GAS RECIRCULATION $678.06 To Order
LR033373 VALVE - EXHAUST GAS RECIRCULATION $755.92 To Order
Photo Part No Description Price (each) Stock
LR023159 TUBE - CONNECTING $354.06 To Order
LR038549 TUBE - CONNECTING $368.23 To Order
Photo Part No Description Price (each) Stock
LR106274 COOLER - EGR $1,076.62 To Order
Photo Part No Description Price (each) Stock
LR022783 ACTUATOR - EGR COOLER BYPASS $30.48 To Order
Photo Part No Description Price (each) Stock
LR022840 TUBE - EXHAUST GAS RECIRCULATION $225.34 To Order
Photo Part No Description Price (each) Stock
LR022904 SENSOR - EXHAUST GAS - TEMPERATURE $184.39 To Order
Photo Part No Description Price (each) Stock
LR022841 TUBE - EGR COOLER $832.36 To Order
LR034012 TUBE - EGR COOLER $1,104.81 To Order
Photo Part No Description Price (each) Stock
LR022775 GASKET - EGR OUTLET $6.70 IN STOCK
Photo Part No Description Price (each) Stock
LR022777 GASKET - EGR INLET $6.70 To Order
Photo Part No Description Price (each) Stock
LR050864 GASKET - EGR COOLER $27.98 To Order
LR050864 GASKET - EGR COOLER $27.98 To Order
Photo Part No Description Price (each) Stock
LR023021 GASKET - EGR OUTLET $8.82 To Order
Photo Part No Description Price (each) Stock
LR023100 GASKET - EGR COOLER $17.86 IN STOCK
View All

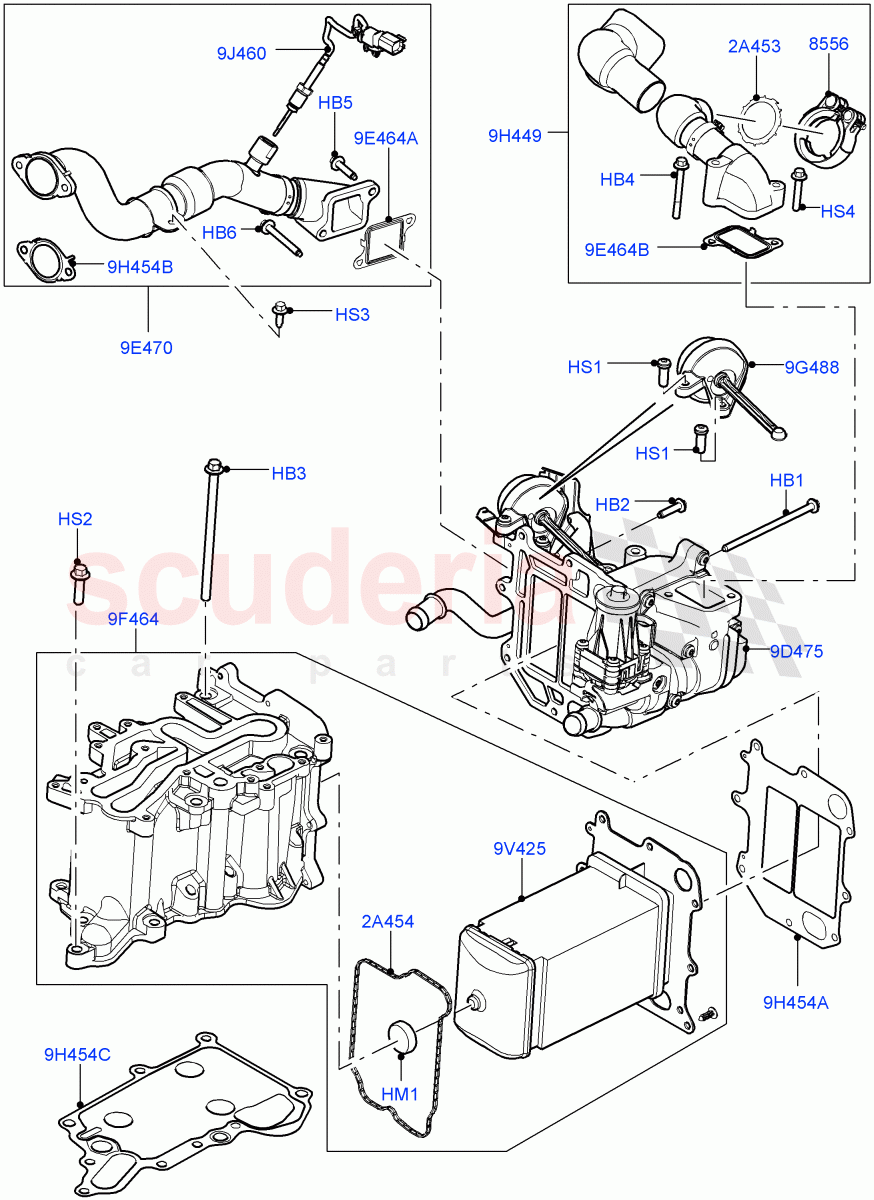

Exhaust Gas Recirculation (4.4L DOHC DITC V8 Diesel) ((V) FROMBA000001) of Land Rover Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR023113
BOLT
EGR Cooler To EGR Valve, M6 X 115 / From: BA000001 		$9.04 2
HB2 LR023111
BOLT
EGR Cooler To EGR Valve, M6 x 25MM / From: BA000001 		$8.01 6
HB3 LR023107
BOLT
M8 x 140MM / From: BA000001 		$12.01 4
HB4 4654270
BOLT
Inlet Tube To Recirculating Valve, M6 x 55MM / From: BA000001 		$7.42 1
HB5 4147433
BOLT
M6 X 25MM, Outlet Tube / From: BA000001
IN STOCK 		$1.64 1
HB6 4537592
BOLT - HEX.HEAD
M6 x 50MM, Outlet Tube / From: BA000001 		$2.52 1
HM1 LR022772
GROMMET - EGR COOLER
EGR Cooler, Grommet, Rubber / From: BA000001 		$4.60 1
HS1 1255708
SCREW
Actuator, M6 X 20MM / From: BA000001 		$9.34 2
HS2 FS108306
SCREW
M8 x 30MM / From: BA000001 		$0.47 4
HS3 4408651
SCREW
M6 X 14MM / From: BA000001 		$1.27 1
HS4 LR020249
SCREW
Inlet Tube To Recirculating Valve, M6 x 35MM / From: BA000001 		$1.24 1
2A453 LR023022
GASKET - EGR INLET
Exhaust Manifold To EGR Cooler / From: BA000001 		$14.73 1
2A454 LR023072
SEAL - EGR COOLER
EGR Cooler To EGR Valve / From: BA000001 		$7.56 1
9D475 LR023158
VALVE - EXHAUST GAS RECIRCULATION
Includes Bypass Valve / From: BA000001 / To: CA393569 		$678.06 1
9D475 LR033373
VALVE - EXHAUST GAS RECIRCULATION
Includes Bypass Valve / From: CA393570 		$755.92 1
9E464A LR022775
GASKET - EGR OUTLET
EGR Valve To Inlet Manifold / From: BA000001
IN STOCK 		$6.70 1
9E464B LR022777
GASKET - EGR INLET
Exhaust Manifold To EGR Cooler / From: BA000001 		$6.70 1
9E470 LR023159
TUBE - CONNECTING
Outlet / From: BA000001 / To: CA393569 		$354.06 1
9E470 LR038549
TUBE - CONNECTING
Outlet / From: CA393570 		$368.23 1
9F464 LR106274
COOLER - EGR
From: BA000001 		$1,076.62 1
9G488 LR022783
ACTUATOR - EGR COOLER BYPASS
Vacuum EGR Cooler Bypass Actuator / From: BA000001 		$30.48 1
9H449 LR022840
TUBE - EXHAUST GAS RECIRCULATION
From: BA000001 		$225.34 1
9H454A LR050864
GASKET - EGR COOLER
EGR Cooler To EGR Valve / From: BA000001 / To: CA393569 		$27.98 1
9H454A LR050864
GASKET - EGR COOLER
EGR Cooler To EGR Valve / From: CA393570 		$27.98 1
9H454B LR023021
GASKET - EGR OUTLET
Used Between EGR Valve And Intake / From: BA000001 		$8.82 1
9H454C LR023100
GASKET - EGR COOLER
Module - EGR System / From: BA000001
IN STOCK 		$17.86 1
9J460 LR022904
SENSOR - EXHAUST GAS - TEMPERATURE
Exhaust Gas Temperature Sensor / From: BA000001 		$184.39 1
9V425 LR022841
TUBE - EGR COOLER
EGR Cooler / From: BA000001 / To: CA393569 		$832.36 1
9V425 LR034012
TUBE - EGR COOLER
EGR Cooler / From: CA393570 		$1,104.81 1
8556 LR023143
CLAMP - HOSE
From: BA000001 		$40.26 1
