Emission Control - Crankcase (4.4L Dohc Ditc V8 Diesel) ((V) Fromba000001)

Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC]

Find Your Part

Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC] - Emission Control - Crankcase (4.4L DOHC DITC V8 Diesel) ((V) FROMBA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS108166 BOLT $0.68 IN STOCK
Photo Part No Description Price (each) Stock
LR023693 CLAMP - HOSE $2.12 To Order
Photo Part No Description Price (each) Stock
FN106042 NUT $1.03 IN STOCK
Photo Part No Description Price (each) Stock
FS106206 SCREW $0.96 IN STOCK
Photo Part No Description Price (each) Stock
LR007969 STUD $2.63 To Order
LR023353 STUD $3.72 To Order
Photo Part No Description Price (each) Stock
LR022839 TUBE - ENGINE VENTILATION $117.14 To Order
Photo Part No Description Price (each) Stock
LR022907 SEPARATOR - OIL $71.82 To Order
Photo Part No Description Price (each) Stock
LR022905 HOSE - OIL SEPARATOR $50.54 To Order
LR043719 HOSE - OIL SEPARATOR $95.39 To Order
Photo Part No Description Price (each) Stock
LR022761 RESERVOIR - OIL SEPARATOR $71.37 To Order
View All

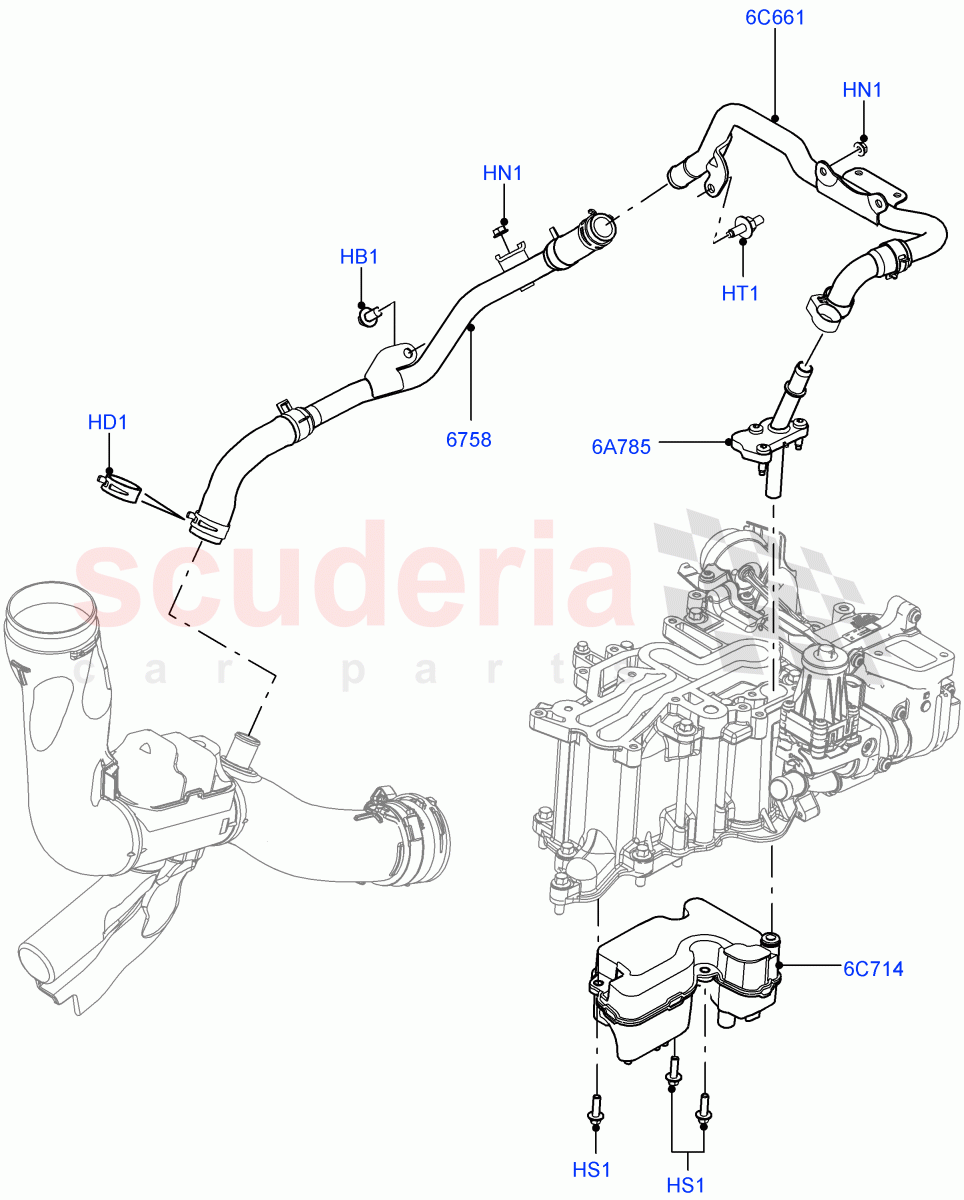

Emission Control - Crankcase (4.4L DOHC DITC V8 Diesel) ((V) FROMBA000001) of Land Rover Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS108166
BOLT
Hexagonal Head, M8 X 16MM, Ventilation Tube / From: BA000001
IN STOCK 		$0.68 1
HD1 LR023693
CLAMP - HOSE
29MM / From: BA000001 		$2.12 1
HN1 FN106042
NUT
Hexagonal Head, M6, Ventilation Tube / From: BA000001
IN STOCK 		$1.03 3
HS1 FS106206
SCREW
Hexagonal Head, M6 X 20MM, Reservoir / From: BA000001
IN STOCK 		$0.96 3
HT1 LR007969
STUD
Ventilation Tube / From: BA000001 / To: BA000100 		$2.63 1
HT1 LR023353
STUD
Ventilation Tube / From: BA000101 		$3.72 1
6A785 LR022907
SEPARATOR - OIL
Outlet Tube, With Fixing Parts, With Gasket / From: BA000001 		$71.82 1
6C661 LR022905
HOSE - OIL SEPARATOR
Engine Ventilation, From Separator To Inlet Hose / From: BA000001 / To: CA388409 		$50.54 1
6C661 LR043719
HOSE - OIL SEPARATOR
Engine Ventilation, From Separator To Inlet Hose / From: CA388410 		$95.39 1
6C714 LR022761
RESERVOIR - OIL SEPARATOR
Oil Separator / From: BA000001 		$71.37 1
6758 LR022839
TUBE - ENGINE VENTILATION
Engine Ventilation, To Turbocharger Inlet Hose / From: BA000001 		$117.14 1
