Electrical Wiring - Engine And Dash (2.0L Aj200P Hi Phev) ((V) Fromja000001)

Land Rover Range Rover (2012-2021) [5.0 OHC SGDI NA V8 Petrol]

Find Your Part

Land Rover Range Rover (2012-2021) [5.0 OHC SGDI NA V8 Petrol] - Electrical Wiring - Engine And Dash (2.0L AJ200P Hi PHEV) ((V) FROMJA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR087242 NUT - HEX. $1.46 To Order
Photo Part No Description Price (each) Stock
RYH500340 NUT AND WASHER - HEX. $1.06 To Order
Photo Part No Description Price (each) Stock
LR073655 SCREW $1.59 IN STOCK
Photo Part No Description Price (each) Stock
FA108202 SCREW $1.35 To Order
Photo Part No Description Price (each) Stock
LR102638 WIRING - ALTERNATOR $710.97 To Order
LR120984 WIRE - ALTERNATOR $517.83 To Order
Photo Part No Description Price (each) Stock
LR085666 TERMINAL - BATTERY $106.93 To Order
Photo Part No Description Price (each) Stock
LR099966 WIRING - FUEL INJECTORS $123.03 To Order
LR116490 WIRING - FUEL INJECTORS $133.77 To Order
Photo Part No Description Price (each) Stock
LR101472 WIRING - ENGINE $1,748.30 To Order
LR113005 WIRING - ENGINE $1,748.30 To Order
LR116343 WIRING - ENGINE $1,774.54 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR138653 BRACKET $23.41 To Order
View All

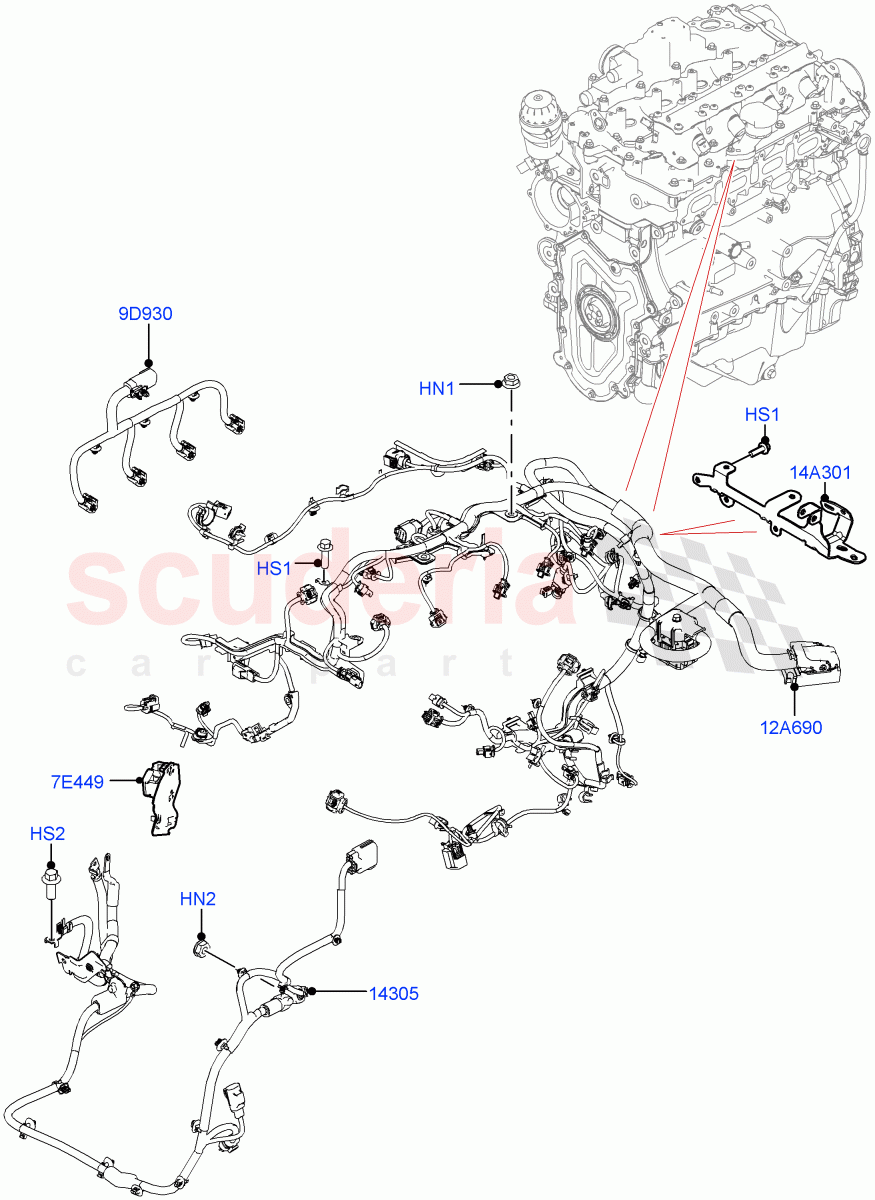

Electrical Wiring - Engine And Dash (2.0L AJ200P Hi PHEV) ((V) FROMJA000001) of Land Rover Land Rover Range Rover (2012-2021) [5.0 OHC SGDI NA V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HN1 LR087242
NUT - HEX.
M6 / From: JA000001 		$1.46 2
HN2 RYH500340
NUT AND WASHER - HEX.
M8, Nut And Washer / From: JA000001 		$1.06 1
HS1 LR073655
SCREW
Hexagonal Head, M6 X 20MM / From: JA000001
IN STOCK 		$1.59 9
HS2 FA108202
SCREW
Hexagonal Head, M8 X 20MM, Taptite / From: JA000001 		$1.35 1
7E449 LR085666
TERMINAL - BATTERY
Battery Cables / From: JA000001 		$106.93 1
9D930 LR099966
WIRING - FUEL INJECTORS
Injector Harness / From: JA000001 / To: JA393236 		$123.03 1
9D930 LR116490
WIRING - FUEL INJECTORS
Injector Harness / From: JA393237 		$133.77 1
12A690 LR101472
WIRING - ENGINE
Engine / From: JA000001 / To: JA390846 		$1,748.30 1
12A690 LR113005
WIRING - ENGINE
Engine / From: JA390847 / To: JA999999 		$1,748.30 1
12A690 LR116343
WIRING - ENGINE
Engine / From: KA000001 / To: KA542341 		$1,774.54 1
12A690 LR125829
WIRING - ENGINE
Engine / From: KA542342 / To: LA999999 		$1,554.32 1
12A690 LR141455
WIRING - ENGINE
Engine / From: MA000001 		$944.45 1
14A301 LR138653
BRACKET
Engine Rear / From: JA000001 		$23.41 1
14305 LR102638
WIRING - ALTERNATOR
From: JA000001 / To: JA999999 		$710.97 1
14305 LR120984
WIRE - ALTERNATOR
From: KA000001 		$517.83 1
