Name: Speakers (Standard Wheelbase, Super Premium Audio 2500 W) ((V) FROMJA000001)
Rating: 5.0 (1 reviews)

View All

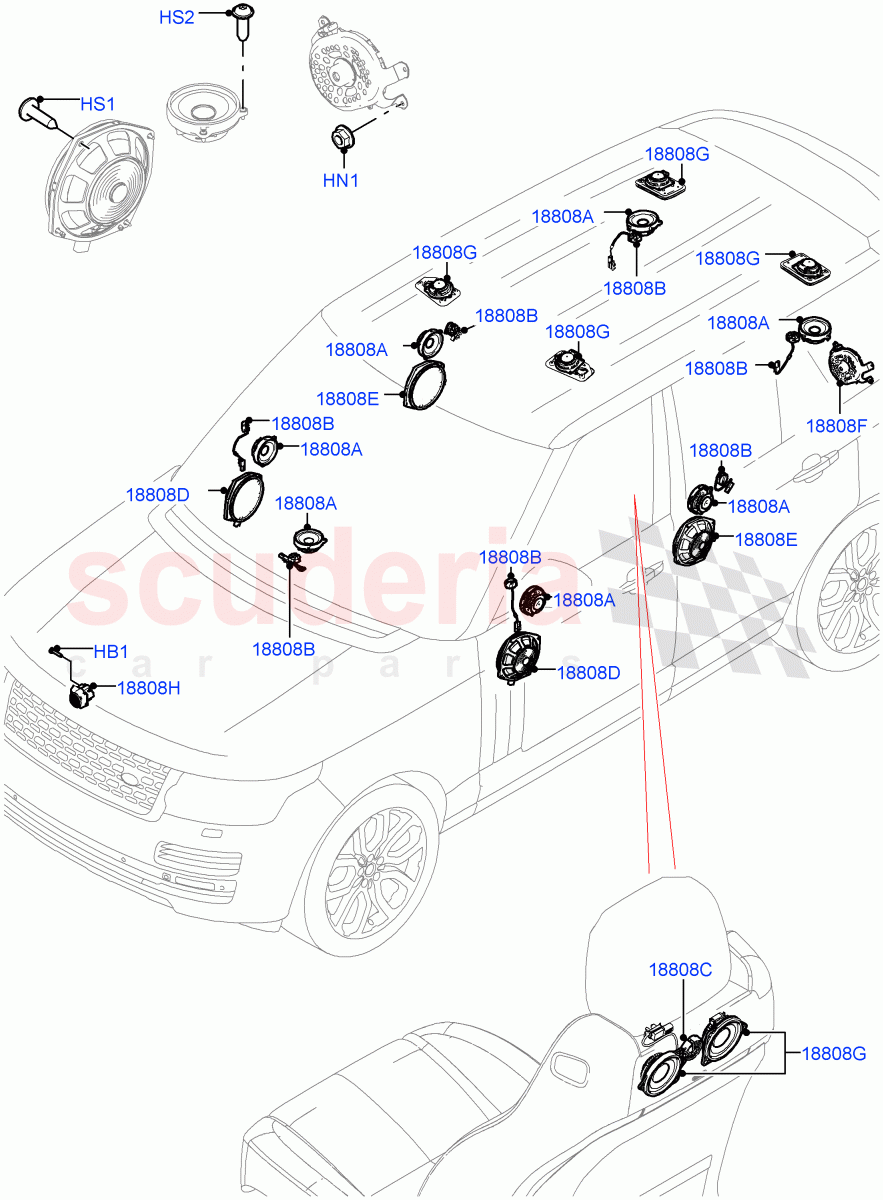

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR042803	BOLT	$1.24	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FN106046	NUT - HEX.	$1.46	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYP500350	SCREW	$0.84	To Order

Photo	Part No	Description	Price (each)	Stock
	LR101428	SCREW	$1.69	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR033293	SPEAKER	$79.99	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033292	SPEAKER	$82.45	To Order

Photo	Part No	Description	Price (each)	Stock
	LR112587	SPEAKER	$171.26	To Order

Photo	Part No	Description	Price (each)	Stock
	LR047119	SPEAKER	$167.55	To Order

Photo	Part No	Description	Price (each)	Stock
	LR098900	SPEAKER	$142.77	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR086355	SPEAKER	$202.52	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033290	SPEAKER	$90.51	To Order

Photo	Part No	Description	Price (each)	Stock
	LR070513	SPEAKER	$138.93	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR042803	BOLT IN STOCK	LR042803 BOLT 2.0L AJ200P Hi PHEV, External Sound Enhancement / M6 x 28MM, Torx / From: JA000001 IN STOCK	$1.24	2
HN1	FN106046	NUT - HEX. IN STOCK	FN106046 NUT - HEX. Hexagonal Head, M6 / From: JA000001 IN STOCK	$1.46	4
HS1	RYP500350	SCREW	RYP500350 SCREW 4.8 X 19MM, Torx / From: JA000001	$0.84	16
HS2	LR101428	SCREW IN STOCK	LR101428 SCREW 4 X 16MM / From: JA000001 IN STOCK	$1.69	21
18808A	LR033293	SPEAKER	LR033293 SPEAKER 100MM, Mid Range / From: JA000001	$79.99	7
18808B	LR033292	SPEAKER	LR033292 SPEAKER Tweeter / From: JA000001	$82.45	7
18808C	LR112587	SPEAKER	LR112587 SPEAKER Front Seats, Tweeter / From: JA000001	$171.26	2
18808D	LR047119	SPEAKER	LR047119 SPEAKER Front Door, Woofer / From: JA000001	$167.55	2
18808E	LR098900	SPEAKER IN STOCK	LR098900 SPEAKER Rear Door, Woofer / From: JA000001 IN STOCK	$142.77	2
18808F	LR086355	SPEAKER	LR086355 SPEAKER Speaker - Subwoofer / From: JA000001	$202.52	1
18808G	LR033290	SPEAKER	LR033290 SPEAKER 80MM, Mid Range / From: JA000001	$90.51	8
18808H	LR070513	SPEAKER	LR070513 SPEAKER 2.0L AJ200P Hi PHEV, External Sound Enhancement / From: JA000001	$138.93	1

Speakers (Standard Wheelbase, Super Premium Audio 2500 W) ((V) Fromja000001)

Land Rover Range Rover (2012-2021) [5.0 OHC SGDI NA V8 Petrol]
