Name: Electrical Wiring - Engine And Dash (3.0L 24V V6 Turbo Diesel Std Flow, 3.0L 24V DOHC V6 TC Diesel)
Rating: 4.4 (1 reviews)

Electrical Wiring - Engine And Dash (3.0L 24V V6 Turbo Diesel Std Flow, 3.0L 24V DOHC V6 TC Diesel) of Land Rover Land Rover Range Rover (2012-2021) [5.0 OHC SGDI NA V8 Petrol]

View All

Land Rover Range Rover (2012-2021) [5.0 OHC SGDI NA V8 Petrol] - Electrical Wiring - Engine And Dash (3.0L 24V V6 Turbo Diesel Std Flow, 3.0L 24V DOHC V6 TC Diesel)

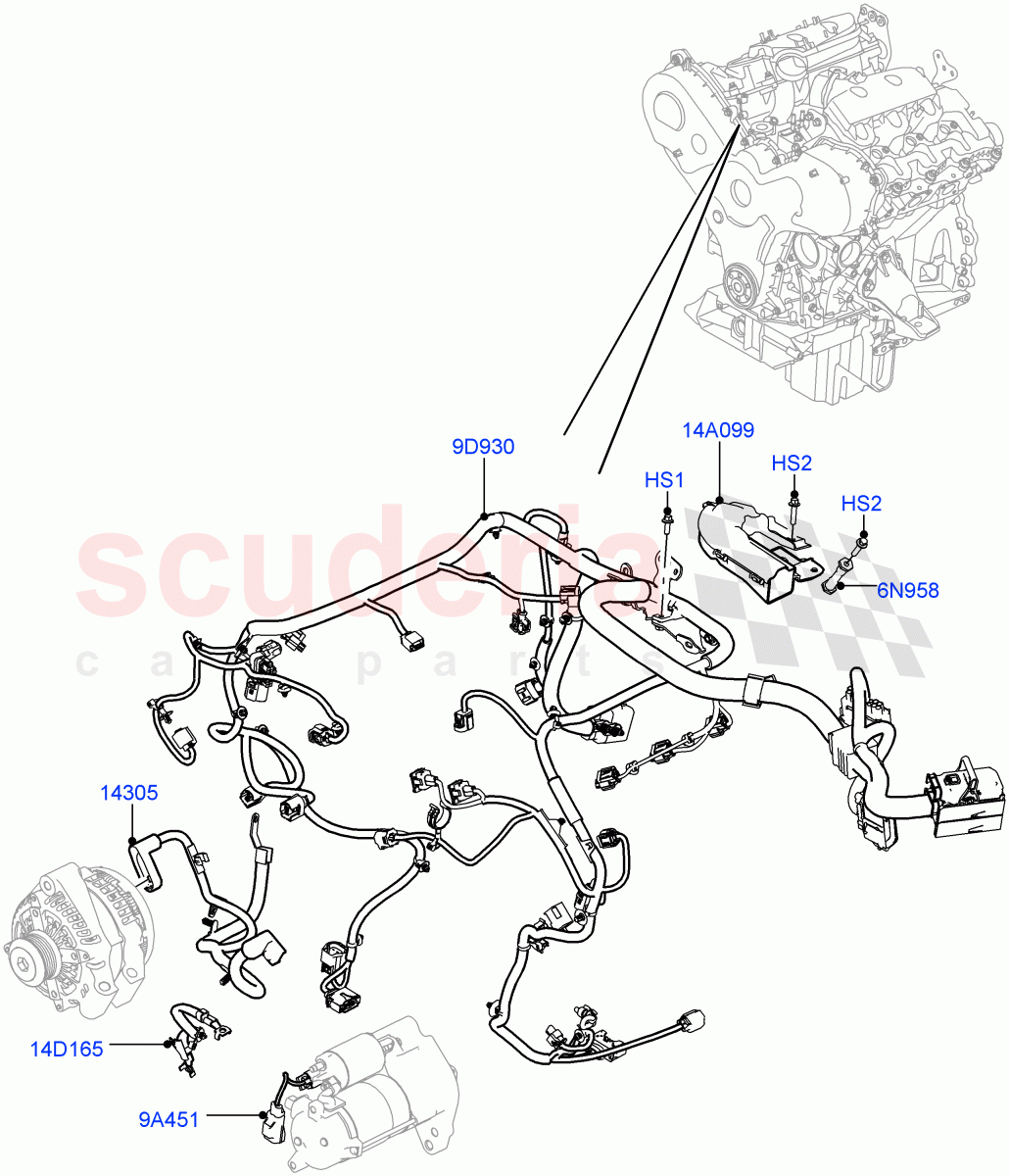

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4380670	SCREW	$0.75	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106256	SCREW	$0.42	To Order

Photo	Part No	Description	Price (each)	Stock
	LR040552	WIRE - ALTERNATOR	$143.20	To Order
	LR046759	WIRE - ALTERNATOR	$132.06	To Order
	LR049996	WIRE - ALTERNATOR	$124.03	To Order

...and 8 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR041092	STUD	$5.27	To Order

Photo	Part No	Description	Price (each)	Stock
	LR041197	WIRING - STARTER MOTOR	$27.87	To Order
	LR043376	WIRING - STARTER MOTOR	$24.47	To Order

Photo	Part No	Description	Price (each)	Stock
	LR037439	WIRING - ENGINE	$908.81	To Order
	LR046001	WIRING - ENGINE	$908.81	To Order
	LR053136	WIRING - ENGINE	$2,530.02	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR041070	SHIELD - WIRING	$24.45	To Order

Photo	Part No	Description	Price (each)	Stock
	LR040626	WIRE - ENGINE EARTH	$47.68	To Order
	LR076899	WIRE - ENGINE EARTH	$40.91	To Order
	LR064071	WIRE - ENGINE EARTH	$62.56	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HS1	4380670	SCREW	4380670 SCREW Hexagonal Head, M6 X 16MM	$0.75	1
HS2	FS106256	SCREW	FS106256 SCREW HEX Flange, M6 x 25MM	$0.42	2
6N958	LR041092	STUD	LR041092 STUD M6 X 11 + M6 X 11	$5.27	1
9A451	LR041197	WIRING - STARTER MOTOR	LR041197 WIRING - STARTER MOTOR Starter - Stop/Start System	$27.87	1
9A451	LR043376	WIRING - STARTER MOTOR	LR043376 WIRING - STARTER MOTOR Standard Electric Starter Motor	$24.47	1
9D930	LR037439	WIRING - ENGINE	LR037439 WIRING - ENGINE Engine / To: DA100532	$908.81	1
9D930	LR046001	WIRING - ENGINE	LR046001 WIRING - ENGINE Engine / From: DA100533 / To: DA121703	$908.81	1
9D930	LR053136	WIRING - ENGINE	LR053136 WIRING - ENGINE Engine / From: DA121704 / To: FA999999	$2,530.02	1
9D930	LR072997	WIRING - ENGINE	LR072997 WIRING - ENGINE Engine / From: GA000001 / To: GA254387	$2,316.21	1
9D930	LR077789	WIRING - ENGINE	LR077789 WIRING - ENGINE Engine / From: GA254388 / To: GA271859	$2,234.76	1
9D930	LR082721	WIRING - ENGINE	LR082721 WIRING - ENGINE Engine / From: GA271860	$2,159.15	1
14A099	LR041070	SHIELD - WIRING	LR041070 SHIELD - WIRING Engine Harness	$24.45	1
14D165	LR040626	WIRE - ENGINE EARTH	LR040626 WIRE - ENGINE EARTH Engine Earth / To: EA196690	$47.68	1
14D165	LR076899	WIRE - ENGINE EARTH	LR076899 WIRE - ENGINE EARTH From: GA000001	$40.91	1
14D165	LR064071	WIRE - ENGINE EARTH	LR064071 WIRE - ENGINE EARTH Engine Earth / From: EA196691 / To: FA999999	$62.56	1
14305	LR040552	WIRE - ALTERNATOR	LR040552 WIRE - ALTERNATOR To: DA108046	$143.20	1
14305	LR046759	WIRE - ALTERNATOR	LR046759 WIRE - ALTERNATOR From: DA108047 / To: DA999999	$132.06	1
14305	LR049996	WIRE - ALTERNATOR	LR049996 WIRE - ALTERNATOR From: EA000001 / To: EA133718	$124.03	1
14305	LR054142	WIRE - ALTERNATOR	LR054142 WIRE - ALTERNATOR Starter - Stop/Start System / From: EA133719 / To: EA999999	$102.25	1
14305	LR054998	WIRE - ALTERNATOR	LR054998 WIRE - ALTERNATOR Standard Electric Starter Motor / From: EA133719 / To: EA999999	$126.37	1
14305	LR063759	WIRE - ALTERNATOR	LR063759 WIRE - ALTERNATOR Starter - Stop/Start System / From: FA000001 / To: FA999999	$136.10	1
14305	LR063762	WIRE - ALTERNATOR	LR063762 WIRE - ALTERNATOR Standard Electric Starter Motor / From: FA000001 / To: FA999999	$108.87	1
14305	LR076002	WIRING - ALTERNATOR	LR076002 WIRING - ALTERNATOR Starter - Stop/Start System / From: GA000001 / To: GA298514	$109.35	1
14305	LR076005	WIRING - ALTERNATOR	LR076005 WIRING - ALTERNATOR Standard Electric Starter Motor / From: GA000001 / To: GA298514	$118.85	1
14305	LR090099	WIRING - ALTERNATOR	LR090099 WIRING - ALTERNATOR Starter - Stop/Start System / From: GA298515	$118.85	1
14305	LR090102	WIRING - ALTERNATOR	LR090102 WIRING - ALTERNATOR Standard Electric Starter Motor / From: GA298515 / To: GA999999	$118.85	1

Electrical Wiring - Engine And Dash (3.0L 24V V6 Turbo Diesel Std Flow, 3.0L 24V Dohc V6 Tc Diesel)

Land Rover Range Rover (2012-2021) [5.0 OHC SGDI NA V8 Petrol]

Land Rover Range Rover (2012-2021) [5.0 OHC SGDI NA V8 Petrol] - Electrical Wiring - Engine And Dash (3.0L 24V V6 Turbo Diesel Std Flow, 3.0L 24V DOHC V6 TC Diesel)
