Name: Rear Exhaust System (4.4L DOHC DITC V8 Diesel) ((V) FROMJA000001)
Rating: 5.0 (1 reviews)

Rear Exhaust System (4.4L DOHC DITC V8 Diesel) ((V) FROMJA000001) of Land Rover Land Rover Range Rover (2012-2021) [4.4 DOHC Diesel V8 DITC]

View All

Land Rover Range Rover (2012-2021) [4.4 DOHC Diesel V8 DITC] - Rear Exhaust System (4.4L DOHC DITC V8 Diesel) ((V) FROMJA000001)

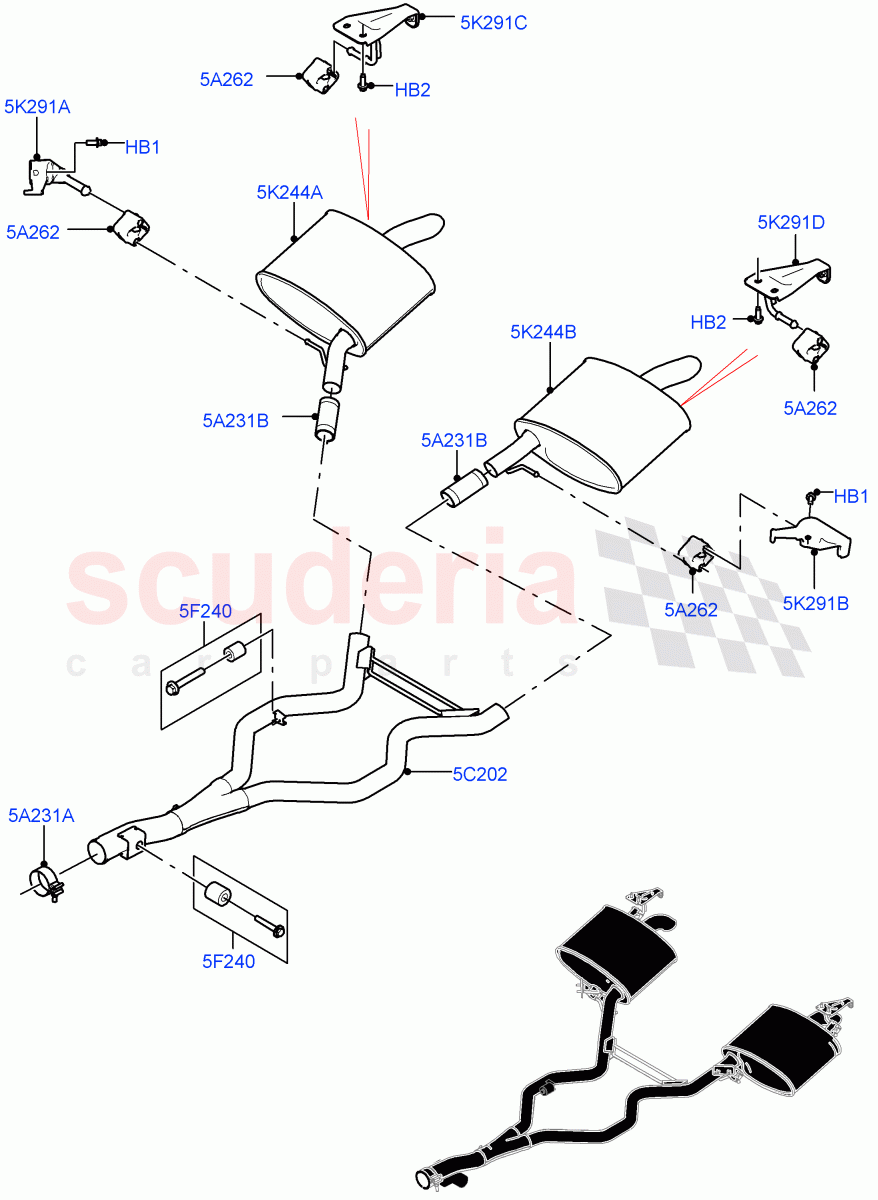

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS108206	BOLT	$2.29	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYG500440	BOLT	$1.02	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090360	INSULATOR - RUBBER	$24.09	To Order

Photo	Part No	Description	Price (each)	Stock
	LR080218	PIPE - EXHAUST	$727.82	To Order
	LR077729	PIPE - EXHAUST	$794.31	To Order
	LR095162	PIPE - EXHAUST	$716.42	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR095164	DAMPER - DAMPING MASS	$44.13	To Order
	LR090829	DAMPER - EXHAUST SYSTEM	$93.00	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036441	CLAMP - EXHAUST	$30.93	To Order

Photo	Part No	Description	Price (each)	Stock
	WCL500030	CLAMP - EXHAUST	$83.74	To Order

Photo	Part No	Description	Price (each)	Stock
	LR105222	MUFFLER - REAR	$838.69	To Order

Photo	Part No	Description	Price (each)	Stock
	LR105226	MUFFLER - REAR	$838.69	To Order

Photo	Part No	Description	Price (each)	Stock
	LR110251	BRACKET - REAR MUFFLER	$31.22	To Order

Photo	Part No	Description	Price (each)	Stock
	LR110252	BRACKET - REAR MUFFLER	$31.22	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044964	BRACKET - REAR MUFFLER	$46.87	To Order
	LR136419	BRACKET - REAR MUFFLER	$45.93	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044965	BRACKET - REAR MUFFLER	$46.87	To Order
	LR136420	BRACKET - REAR MUFFLER	$45.93	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	FS108206	BOLT IN STOCK	FS108206 BOLT Front, Hexagonal Head, M8 X 20MM, RH And LH / From: JA000001 IN STOCK	$2.29	2
HB2	RYG500440	BOLT	RYG500440 BOLT Hexagonal Head, M8 X 20MM, Rear / From: JA000001	$1.02	4
5A231A	LR036441	CLAMP - EXHAUST	LR036441 CLAMP - EXHAUST 70MM, Front / From: JA000001	$30.93	1
5A231B	WCL500030	CLAMP - EXHAUST	WCL500030 CLAMP - EXHAUST 55MM, For Rear Muffler / From: JA000001	$83.74	2
5A262	LR090360	INSULATOR - RUBBER	LR090360 INSULATOR - RUBBER From: JA000001	$24.09	4
5C202	LR080218	PIPE - EXHAUST	LR080218 PIPE - EXHAUST Proconve L6 Emissions, Standard Wheelbase / From: JA000001	$727.82	1
5C202	LR077729	PIPE - EXHAUST	LR077729 PIPE - EXHAUST Long Wheelbase, Stage V Plus DPF / From: JA000001	$794.31	1
5C202	LR095162	PIPE - EXHAUST	LR095162 PIPE - EXHAUST EU6 + DPF Emissions, Long Wheelbase / From: JA000001	$716.42	1
5C202	LR095161	PIPE - EXHAUST	LR095161 PIPE - EXHAUST EU6 + DPF Emissions, Standard Wheelbase / From: JA000001	$581.34	1
5F240	LR095164	DAMPER - DAMPING MASS	LR095164 DAMPER - DAMPING MASS EU6 + DPF Emissions, Long Wheelbase / From: JA000001	$44.13	2
5F240	LR090829	DAMPER - EXHAUST SYSTEM	LR090829 DAMPER - EXHAUST SYSTEM EU6 + DPF Emissions, Standard Wheelbase / From: JA000001	$93.00	2
5K244A	LR105222	MUFFLER - REAR	LR105222 MUFFLER - REAR RH / From: JA000001	$838.69	1
5K244B	LR105226	MUFFLER - REAR	LR105226 MUFFLER - REAR LH / From: JA000001	$838.69	1
5K291A	LR110251	BRACKET - REAR MUFFLER	LR110251 BRACKET - REAR MUFFLER For Rear Muffler, RH Front / From: JA000001	$31.22	1
5K291B	LR110252	BRACKET - REAR MUFFLER	LR110252 BRACKET - REAR MUFFLER For Rear Muffler, LH Front / From: JA000001	$31.22	1
5K291C	LR044964	BRACKET - REAR MUFFLER	LR044964 BRACKET - REAR MUFFLER For Rear Muffler, RH Rear / From: JA000001 / To: KA567510	$46.87	1
5K291C	LR136419	BRACKET - REAR MUFFLER	LR136419 BRACKET - REAR MUFFLER For Rear Muffler, RH Rear / From: KA567511	$45.93	1
5K291D	LR044965	BRACKET - REAR MUFFLER	LR044965 BRACKET - REAR MUFFLER For Rear Muffler, LH Rear / From: JA000001 / To: KA567510	$46.87	1
5K291D	LR136420	BRACKET - REAR MUFFLER	LR136420 BRACKET - REAR MUFFLER For Rear Muffler, LH Rear / From: KA567511	$45.93	1
