Exhaust System (Muffler, Rear) (4.4L Dohc Ditc V8 Diesel) ((V) Tofa999999)

Land Rover Range Rover (2012-2021) [4.4 DOHC Diesel V8 DITC]

Find Your Part

Land Rover Range Rover (2012-2021) [4.4 DOHC Diesel V8 DITC] - Exhaust System (Muffler, Rear) (4.4L DOHC DITC V8 Diesel) ((V) TOFA999999)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS108206 BOLT $2.29 IN STOCK
Photo Part No Description Price (each) Stock
RYG500440 BOLT $1.02 To Order
Photo Part No Description Price (each) Stock
LR025064 INSULATOR - RUBBER $29.65 To Order
Photo Part No Description Price (each) Stock
LR040135 PIPE - EXHAUST $824.08 To Order
LR053250 PIPE - EXHAUST $814.87 To Order
LR095162 PIPE - EXHAUST $717.04 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR036438 EXHAUST $36.65 To Order
Photo Part No Description Price (each) Stock
WCL500040 CLAMP - EXHAUST $87.38 To Order
Photo Part No Description Price (each) Stock
LR038233 MUFFLER - REAR $789.21 To Order
Photo Part No Description Price (each) Stock
LR038232 MUFFLER - REAR $775.08 To Order
Photo Part No Description Price (each) Stock
LR035769 BRACKET - EXHAUST PIPE MOUNTING $32.84 To Order
Photo Part No Description Price (each) Stock
LR035772 BRACKET - EXHAUST PIPE MOUNTING $32.84 To Order
Photo Part No Description Price (each) Stock
LR035777 BRACKET - REAR MUFFLER $41.79 To Order
LR044964 BRACKET - REAR MUFFLER $46.91 To Order
Photo Part No Description Price (each) Stock
LR035781 BRACKET - REAR MUFFLER $41.79 To Order
LR044965 BRACKET - REAR MUFFLER $46.91 To Order
View All

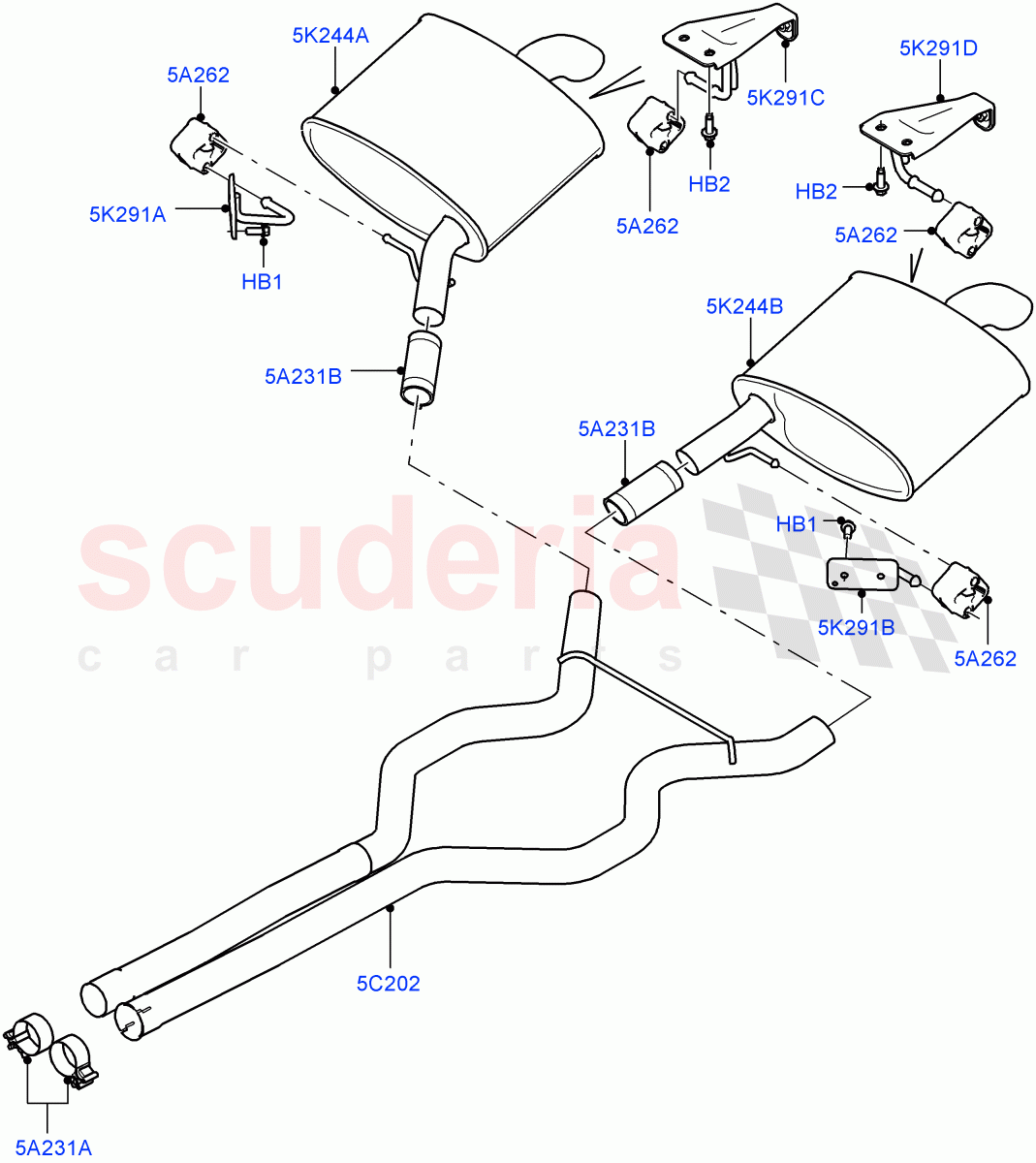

Exhaust System (Muffler, Rear) (4.4L DOHC DITC V8 Diesel) ((V) TOFA999999) of Land Rover Land Rover Range Rover (2012-2021) [4.4 DOHC Diesel V8 DITC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS108206
BOLT
Hexagonal Head, M8 X 20MM
IN STOCK 		$2.29 4
HB2 RYG500440
BOLT
Hexagonal Head, M8 X 20MM 		$1.02 4
5A231A LR036438
EXHAUST
60MM, Middle 		$36.65 2
5A231B WCL500040
CLAMP - EXHAUST
60MM 		$87.38 2
5A262 LR025064
INSULATOR - RUBBER 		$29.65 4
5C202 LR040135
PIPE - EXHAUST
Standard Wheelbase / Middle, RH/LH / To: FA999999 		$824.08 1
5C202 LR053250
PIPE - EXHAUST
Long Wheelbase / Middle, RH/LH / From: EA000001 / To: FA999999 		$814.87 1
5C202 LR095162
PIPE - EXHAUST
EU6 + DPF Emissions, Long Wheelbase / Middle, RH/LH / From: GA000001 		$717.04 1
5C202 LR095161
PIPE - EXHAUST
EU6 + DPF Emissions, Standard Wheelbase / Middle, RH/LH / From: GA000001 		$581.85 1
5K244A LR038233
MUFFLER - REAR
RH 		$789.21 1
5K244B LR038232
MUFFLER - REAR
LH 		$775.08 1
5K291A LR035769
BRACKET - EXHAUST PIPE MOUNTING
RH, Front 		$32.84 1
5K291B LR035772
BRACKET - EXHAUST PIPE MOUNTING
LH, Front 		$32.84 1
5K291C LR035777
BRACKET - REAR MUFFLER
RH, Rear / To: DA105107 		$41.79 1
5K291C LR044964
BRACKET - REAR MUFFLER
RH, Rear / From: DA105108 		$46.91 1
5K291D LR035781
BRACKET - REAR MUFFLER
LH, Rear / To: DA105107 		$41.79 1
5K291D LR044965
BRACKET - REAR MUFFLER
LH, Rear / From: DA105108 		$46.91 1
