Name: Exhaust System (Exhaust System Sensors) (4.4L DOHC DITC V8 Diesel, Proconve L6 Emissions, Stage V Plus DPF) ((V) FROMGA000001)
Rating: 5.0 (1 reviews)

Exhaust System (Exhaust System Sensors) (4.4L DOHC DITC V8 Diesel, Proconve L6 Emissions, Stage V Plus DPF) ((V) FROMGA000001) of Land Rover Land Rover Range Rover (2012-2021) [4.4 DOHC Diesel V8 DITC]

View All

Land Rover Range Rover (2012-2021) [4.4 DOHC Diesel V8 DITC] - Exhaust System (Exhaust System Sensors) (4.4L DOHC DITC V8 Diesel, Proconve L6 Emissions, Stage V...

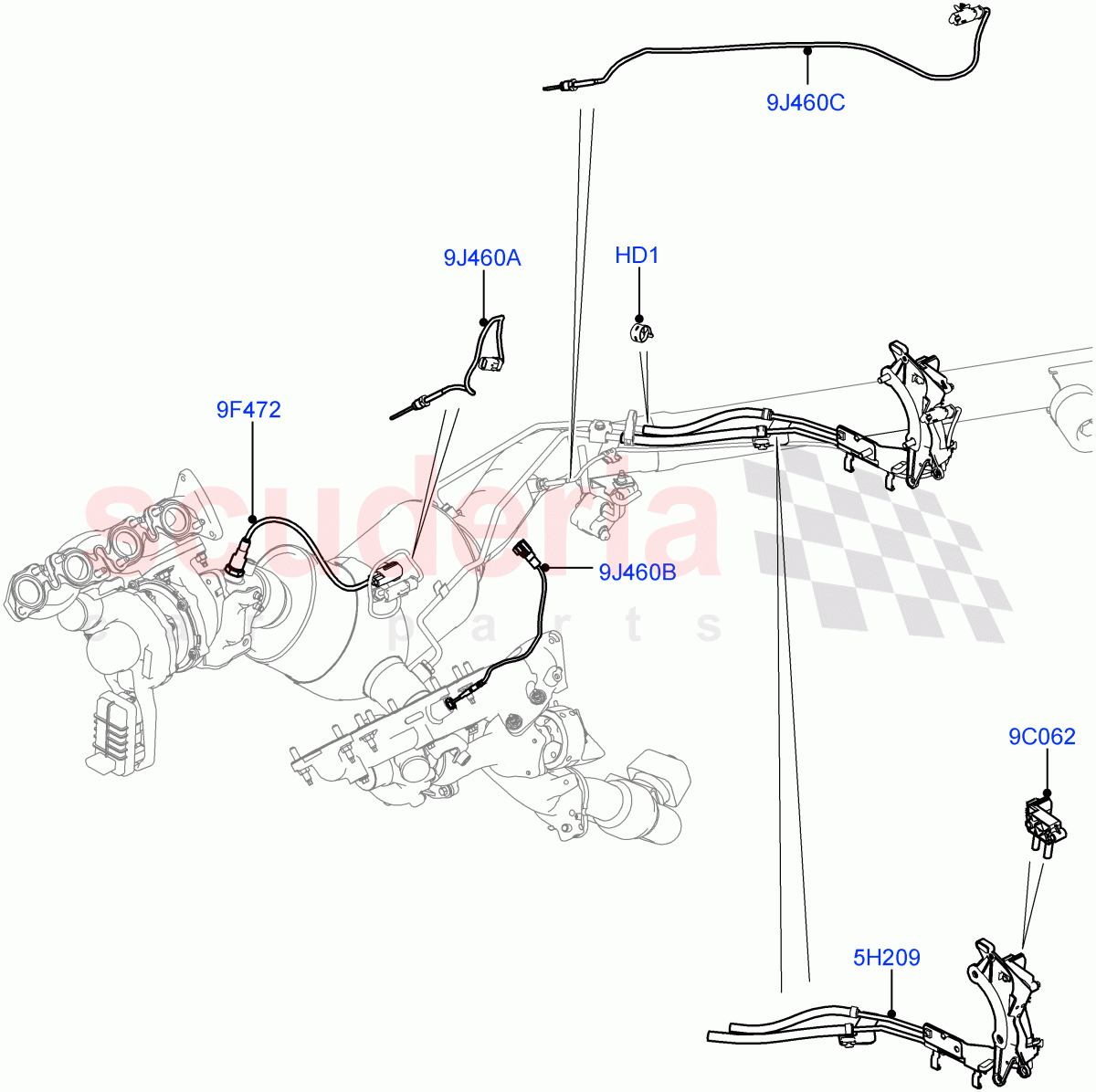

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	YYC500240	CLAMP - HOSE	$2.08	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071025	SENSOR	$312.75	To Order
	LR082004	SENSOR - DIFFERENTIAL PRESSURE	$306.04	To Order
	LR095138	SENSOR - DIFFERENTIAL PRESSURE	$184.74	To Order

Photo	Part No	Description	Price (each)	Stock
	LR122713	SENSOR	$159.58	To Order

Photo	Part No	Description	Price (each)	Stock
	LR062045	SENSOR - HEGO	$267.01	To Order
	LR098299	SENSOR - HEGO	$240.54	To Order
	LR110458	SENSOR	$267.01	To Order

...and 4 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR071020	SENSOR - EXHAUST GAS - TEMPERATURE	$116.59	To Order

Photo	Part No	Description	Price (each)	Stock
	LR052169	SENSOR - EXHAUST GAS - TEMPERATURE	$184.39	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071021	SENSOR - EXHAUST GAS - TEMPERATURE	$116.59	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HD1	YYC500240	CLAMP - HOSE	YYC500240 CLAMP - HOSE Exhaust Gas Pressure	$2.08	1
5H209	LR071025	SENSOR	LR071025 SENSOR Exhaust Gas Pressure, Includes Bracket / To: FA999999	$312.75	1
5H209	LR082004	SENSOR - DIFFERENTIAL PRESSURE	LR082004 SENSOR - DIFFERENTIAL PRESSURE Exhaust Gas Pressure, Includes Bracket / From: GA000001 / To: GA999999	$306.04	1
5H209	LR095138	SENSOR - DIFFERENTIAL PRESSURE	LR095138 SENSOR - DIFFERENTIAL PRESSURE Exhaust Gas Pressure, Includes Bracket / From: HA000001	$184.74	1
9C062	LR122713	SENSOR	LR122713 SENSOR Exhaust Gas Pressure / From: GA000001	$159.58	1
9F472	LR062045	SENSOR - HEGO	LR062045 SENSOR - HEGO RH, Exhaust Manifold, Hego Sensor / To: HA343695	$267.01	1
9F472	LR098299	SENSOR - HEGO	LR098299 SENSOR - HEGO Hego Sensor / From: HA343696 / To: JA383741	$240.54	1
9F472	LR110458	SENSOR	LR110458 SENSOR Hego Sensor / From: JA383742 / To: KA999999	$267.01	1
9F472	LR137404	SENSOR - HEGO	LR137404 SENSOR - HEGO Hego Sensor / From: LA575428 / To: LA599999	$319.13	1
9F472	LR137404	SENSOR - HEGO	LR137404 SENSOR - HEGO Hego Sensor / From: LA400000 / To: LA567000	$319.13	1
9F472	LR110458	SENSOR	LR110458 SENSOR Hego Sensor / From: LA567000 / To: LA575427	$267.01	1
9F472	LR137404	SENSOR - HEGO	LR137404 SENSOR - HEGO Hego Sensor / From: MA000001	$319.13	1
9J460A	LR071020	SENSOR - EXHAUST GAS - TEMPERATURE	LR071020 SENSOR - EXHAUST GAS - TEMPERATURE Exhaust Gas Temperature, Filter Diesel Particle	$116.59	1
9J460B	LR052169	SENSOR - EXHAUST GAS - TEMPERATURE	LR052169 SENSOR - EXHAUST GAS - TEMPERATURE LH, Exhaust Gas Temperature Sensor, Exhaust Manifold	$184.39	1
9J460C	LR071021	SENSOR - EXHAUST GAS - TEMPERATURE	LR071021 SENSOR - EXHAUST GAS - TEMPERATURE Exhaust Gas Temperature Sensor, Middle	$116.59	1

Exhaust System (Exhaust System Sensors) (4.4L Dohc Ditc V8 Diesel, Proconve L6 Emissions, Stage V...

Land Rover Range Rover (2012-2021) [4.4 DOHC Diesel V8 DITC]

Land Rover Range Rover (2012-2021) [4.4 DOHC Diesel V8 DITC] - Exhaust System (Exhaust System Sensors) (4.4L DOHC DITC V8 Diesel, Proconve L6 Emissions, Stage V...

Add to Shopping Cart
