Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC] - Fuel Tank & Related Parts (3.0L 24V V6 Turbo Diesel Std Flow, 3.0 V6 Diesel Electric Hybrid Eng,...

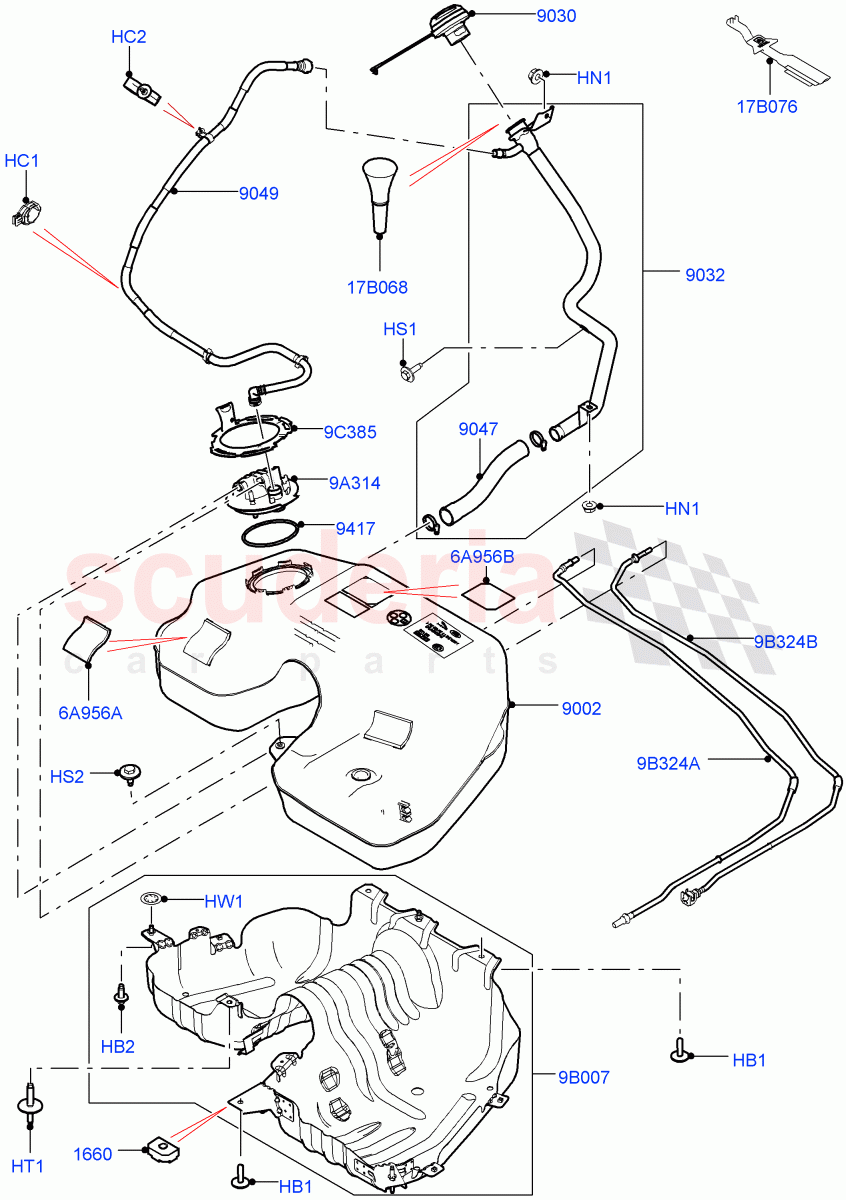

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR034249 BOLT AND WASHER - HEX.HEAD $2.89 IN STOCK
Photo Part No Description Price (each) Stock
LR037935 BOLT AND WASHER - HEX.HEAD $2.40 IN STOCK
Photo Part No Description Price (each) Stock
LR044902 CLIP - HOSE $2.49 To Order
Photo Part No Description Price (each) Stock
LR094032 CLIP - HOSE $4.41 To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.47 IN STOCK
Photo Part No Description Price (each) Stock
AYP500110 SCREW $0.96 IN STOCK
Photo Part No Description Price (each) Stock
RYG500820 SCREW AND WASHER $0.67 To Order
Photo Part No Description Price (each) Stock
LR094016 STUD $1.69 To Order
Photo Part No Description Price (each) Stock
WJ110007L WASHER $0.71 IN STOCK
Photo Part No Description Price (each) Stock
LR053783 SPACER - FUEL TANK MOUNTING $8.85 To Order
Photo Part No Description Price (each) Stock
LR079552 TANK - FUEL $1,365.72 To Order
LR058293 TANK - FUEL $1,110.08 To Order
LR058293 TANK - FUEL $1,110.08 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR053666 CAP - FUEL TANK FILLER $28.01 To Order
LR112190 CAP - FUEL TANK FILLER $35.18 To Order
LR138861 CAP - FUEL TANK FILLER $39.30 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR051673 PIPE - FUEL FILLER $228.27 To Order
LR079275 PIPE - FUEL FILLER $382.87 To Order
LR116345 PIPE - FUEL FILLER $362.67 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR051676 HOSE - FILLER PIPE $225.06 To Order
Photo Part No Description Price (each) Stock
LR053462 TUBE - FUEL VAPOUR $70.86 To Order
Photo Part No Description Price (each) Stock
LR117476 GASKET $10.56 IN STOCK
Photo Part No Description Price (each) Stock
LR026196 COVER - FUEL SENDER $129.76 To Order
Photo Part No Description Price (each) Stock
LR045366 SHIELD - FUEL TANK $707.91 To Order
LR071011 SHIELD - FUEL TANK $655.50 IN STOCK
LR054812 SHIELD - FUEL TANK $675.62 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR041099 RING - RETAINING $30.24 To Order
Photo Part No Description Price (each) Stock
LR073691 FUNNEL - FUEL FILLER $6.28 To Order
Photo Part No Description Price (each) Stock
LR014047 RESTRICTOR - FUEL $26.25 To Order
Photo Part No Description Price (each) Stock
LR061784 FOAM PAD - ENERGY ABSORBING $3.24 To Order
Photo Part No Description Price (each) Stock
LR025789 FOAM PAD - ENERGY ABSORBING $23.37 To Order
Photo Part No Description Price (each) Stock
LR036706 TUBE - FUEL $127.38 To Order
LR086521 TUBE - FUEL $127.86 To Order
Photo Part No Description Price (each) Stock
LR036758 TUBE - FUEL $67.99 To Order
LR086520 TUBE - FUEL $111.57 To Order
View All
Fuel Tank & Related Parts (3.0L 24V V6 Turbo Diesel Std Flow, 3.0 V6 Diesel Electric Hybrid Eng, 3.0 V6 D Gen2 Twin Turbo, 3.0 V6 D Gen2 Mono Turbo, 3.0 V6 D Low MT ROW) ((V) FROMEA000001) of Land Rover Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR034249
BOLT AND WASHER - HEX.HEAD
Hexagonal Head, M10 x 37MM, Shield / From: EA000001
IN STOCK 		$2.89 3
HB2 LR037935
BOLT AND WASHER - HEX.HEAD
Hexagonal Head, M10 X 25MM, Shield / From: EA000001
IN STOCK 		$2.40 2
HC1 LR044902
CLIP - HOSE
10-25 X 1.5-3, Plastic / From: EA000001 		$2.49 1
HC2 LR094032
CLIP - HOSE
Plastic, Upper / From: EA000001 		$4.41 2
HN1 FN106046
NUT - HEX.
Hexagonal Head, M6 / From: EA000001
IN STOCK 		$1.47 2
HS1 AYP500110
SCREW
Bolt And Washer, Hexagonal Head, M6 X 20MM / From: EA000001
IN STOCK 		$0.96 2
HS2 RYG500820
SCREW AND WASHER
Hexagonal Head, M6 X 16MM / From: EA000001 		$0.67 2
HT1 LR094016
STUD
Hexagonal Head, M10 X 41 + M8 X 22, Shield / From: EA000001 		$1.69 2
HW1 WJ110007L
WASHER
10MM, Fuel Tank, Shield / From: EA000001
IN STOCK 		$0.71 3
6A956A LR061784
FOAM PAD - ENERGY ABSORBING
85mm x 65mm x 2mm / From: EA000001 		$3.24 1
6A956B LR025789
FOAM PAD - ENERGY ABSORBING
3.0 V6 Diesel Electric Hybrid Eng / 100mm x 80mm x 10mm / To: FA999999 		$23.37 2
9A314 LR026196
COVER - FUEL SENDER
From: EA000001 / To: GA999999 		$129.76 1
9B007 LR045366
SHIELD - FUEL TANK
3.0 V6 D Gen2 Mono Turbo, 8 Speed Auto Trans ZF 8HP70 HEV 4WD / Protective / From: EA000001 / To: FA999999 		$707.91 1
9B007 LR071011
SHIELD - FUEL TANK
3.0 V6 Diesel Electric Hybrid Eng / Protective / From: GA000001 / To: GA999999
IN STOCK 		$655.50 1
9B007 LR054812
SHIELD - FUEL TANK
3.0 V6 D Gen2 Mono Turbo, 8 Speed Auto Trans ZF 8HP70 4WD / Protective / From: FA000001 / To: FA999999 		$675.62 1
9B007 LR122714
SHIELD
Protective / From: HA000001 / To: LA596443 		$497.89 1
9B007 LR122714
SHIELD
Protective / From: LA596444 / To: LA599487 		$497.89 1
9B007 LR140295
SHIELD
Protective / From: LA599488 		$497.89 1
9B324A LR036706
TUBE - FUEL
Feed / From: EA000001 / To: GA999999 		$127.38 1
9B324A LR086521
TUBE - FUEL
Feed / From: HA000001 		$127.86 1
9B324B LR036758
TUBE - FUEL
Return / From: EA000001 / To: GA999999 		$67.99 1
9B324B LR086520
TUBE - FUEL
Return / From: HA000001 		$111.57 1
9C385 LR041099
RING - RETAINING
Cover / From: EA000001 		$30.24 1
17B068 LR073691
FUNNEL - FUEL FILLER
Fuel Tank Filler Neck With Inhibit / From: FA000001 		$6.28 1
17B076 LR014047
RESTRICTOR - FUEL
From: EA000001 		$26.25 1
1660 LR053783
SPACER - FUEL TANK MOUNTING
Long Wheelbase / Fuel Tank / From: EA000001 		$8.85 1
9002 LR079552
TANK - FUEL
From: FA243285 / To: GA318377 		$1,365.72 1
9002 LR058293
TANK - FUEL
3.0 V6 Diesel Electric Hybrid Eng / From: EA000001 / To: FA243284 		$1,110.08 1
9002 LR058293
TANK - FUEL
3.0 V6 D Gen2 Mono Turbo, 8 Speed Auto Trans ZF 8HP70 HEV 4WD / From: FA000001 / To: FA243284 		$1,110.08 1
9002 LR086525
TANK - FUEL
3.0 V6 D Low MT ROW / From: HA000001 / To: JA392175 		$1,365.72 1
9002 LR088935
TANK - FUEL
From: GA318378 / To: GA999999 		$1,365.72 1
9002 LR116066
TANK - FUEL
From: JA392176 		$1,365.72 1
9030 LR053666
CAP - FUEL TANK FILLER
Fuel Tank Filler Neck - Diesel / From: EA000001 / To: MA420874 		$28.01 1
9030 LR112190
CAP - FUEL TANK FILLER
Fuel Tank Filler Neck - Japan / From: KA000001 / To: LA414127 		$35.18 1
9030 LR138861
CAP - FUEL TANK FILLER
Fuel Tank Filler Neck - All Nozzles / From: MA420875 		$39.30 1
9030 LR138719
CAP - FUEL TANK FILLER
Fuel Tank Filler Neck - Japan / From: LA414128 		$39.30 1
9032 LR051673
PIPE - FUEL FILLER
Fuel Tank Filler Neck - All Nozzles / From: EA000001 		$228.27 1
9032 LR079275
PIPE - FUEL FILLER
Fuel Tank Filler Neck With Inhibit / From: FA000001 / To: JA502817 		$382.87 1
9032 LR116345
PIPE - FUEL FILLER
Fuel Tank Filler Neck With Inhibit / From: JA502818 		$362.67 1
9032 LR051672
PIPE - FUEL FILLER
Fuel Tank Filler Neck - Diesel / From: EA000001 		$225.06 1
9047 LR051676
HOSE - FILLER PIPE
From: EA000001 		$225.06 1
9049 LR053462
TUBE - FUEL VAPOUR
From: EA000001 		$70.86 1
9417 LR117476
GASKET
Cover, O-Ring / From: EA000001
IN STOCK 		$10.56 1
