Fuel Cooler Assembly (3.0L 24V Dohc V6 Tc Diesel, 3.0L 24V V6 Turbo Diesel Std Flow)

Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC] - Fuel Cooler Assembly (3.0L 24V DOHC V6 TC Diesel, 3.0L 24V V6 Turbo Diesel Std Flow)

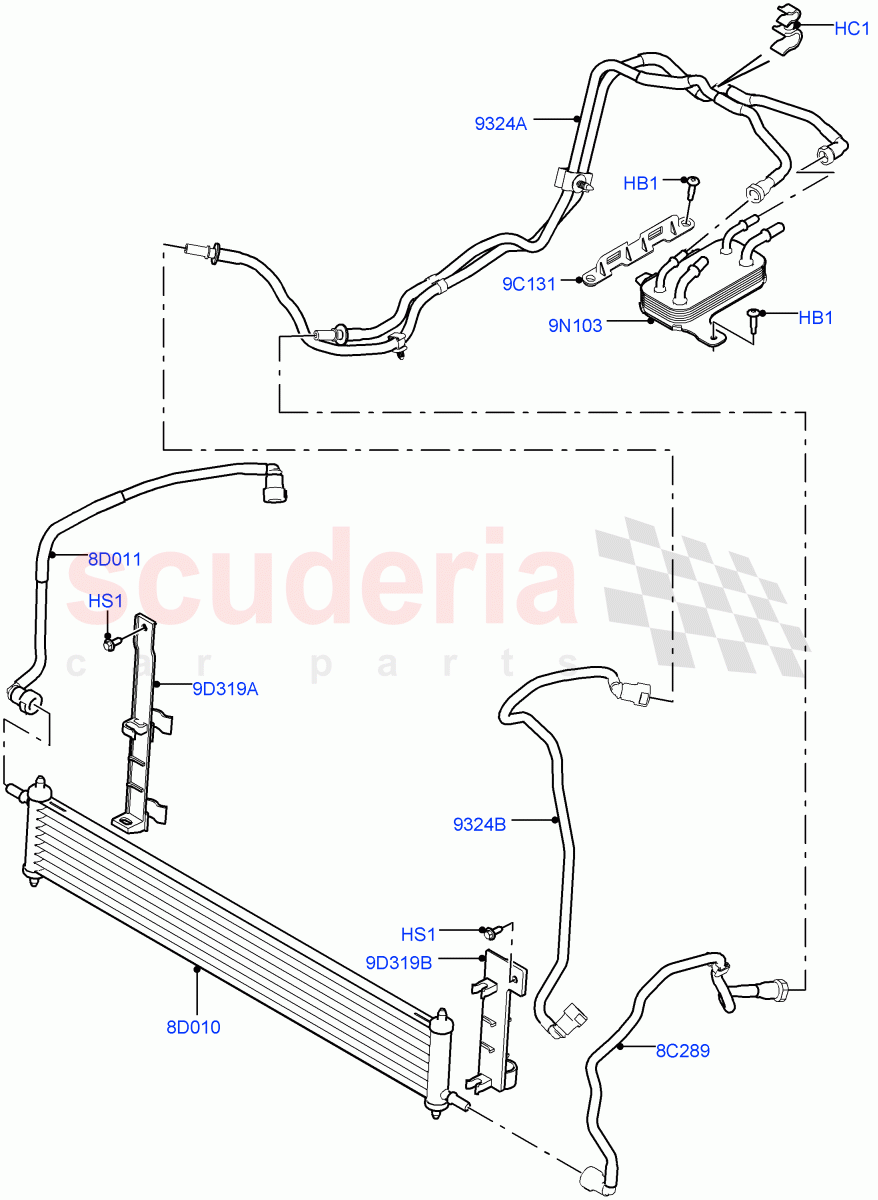

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR034354 BOLT - PAN - TORX $1.07 To Order
Photo Part No Description Price (each) Stock
LR024832 CLIP $1.04 To Order
Photo Part No Description Price (each) Stock
PYP500070 SCREW $0.80 To Order
Photo Part No Description Price (each) Stock
LR035628 HOSE - ENGINE COOLANT RETURN $37.86 To Order
Photo Part No Description Price (each) Stock
LR034575 RADIATOR - AUXILIARY $174.78 To Order
Photo Part No Description Price (each) Stock
LR035633 HOSE - FUEL COOLER INLET $40.64 To Order
Photo Part No Description Price (each) Stock
LR036520 HOSE - FUEL COOLER $42.08 To Order
Photo Part No Description Price (each) Stock
LR036521 HOSE - FUEL COOLER $14.13 To Order
Photo Part No Description Price (each) Stock
LR042509 BRACKET - FUEL COOLER $20.67 To Order
Photo Part No Description Price (each) Stock
LR038811 COOLER - FUEL $213.74 To Order
Photo Part No Description Price (each) Stock
LR034561 BRACKET - RADIATOR $10.69 To Order
LR126009 BRACKET $21.24 To Order
Photo Part No Description Price (each) Stock
LR034559 BRACKET - RADIATOR $10.69 To Order
LR126008 BRACKET - RADIATOR $21.90 To Order
View All
Fuel Cooler Assembly (3.0L 24V DOHC V6 TC Diesel, 3.0L 24V V6 Turbo Diesel Std Flow) of Land Rover Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR034354
BOLT - PAN - TORX
M6 x 19MM, Torx 		$1.07 3
HC1 LR024832
CLIP
6-6.5 + 9.5-10.5 Pipe Swivel Plastic, Double 		$1.04 1
HS1 PYP500070
SCREW
6 x 16MM, Hexagonal Head 		$0.80 2
8C289 LR035628
HOSE - ENGINE COOLANT RETURN
Fuel Coolant Cooler, Outlet 		$37.86 1
8D010 LR034575
RADIATOR - AUXILIARY
Fuel Coolant Cooler 		$174.78 1
8D011 LR035633
HOSE - FUEL COOLER INLET
Fuel Coolant Cooler, Inlet 		$40.64 1
9C131 LR042509
BRACKET - FUEL COOLER
For Fuel Cooler 		$20.67 1
9D319A LR034561
BRACKET - RADIATOR
RH, Radiator Mounting / To: KA548063 		$10.69 1
9D319A LR126009
BRACKET
RH, Radiator Mounting / From: KA548064 		$21.24 1
9D319B LR034559
BRACKET - RADIATOR
LH, Radiator Mounting / To: KA548063 		$10.69 1
9D319B LR126008
BRACKET - RADIATOR
LH, Radiator Mounting / From: KA548064 		$21.90 1
9N103 LR038811
COOLER - FUEL
Main 		$213.74 1
9324A LR036520
HOSE - FUEL COOLER
Fuel Cooler Inlet, Outlet, Set Of 2 Pieces 		$42.08 1
9324B LR036521
HOSE - FUEL COOLER 		$14.13 1
