Fuel Cooler Assembly (3.0 V6 D Gen2 Mono Turbo, 8 Speed Auto Trans Zf 8Hp70 4Wd, 3.0 V6 D Gen2 Twin...

Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC] - Fuel Cooler Assembly (3.0 V6 D Gen2 Mono Turbo, 8 Speed Auto Trans ZF 8HP70 4WD, 3.0 V6 D Gen2 Twin...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR034354 BOLT - PAN - TORX $1.07 To Order
Photo Part No Description Price (each) Stock
LR024832 CLIP $1.04 To Order
Photo Part No Description Price (each) Stock
PYP500070 SCREW $0.80 To Order
Photo Part No Description Price (each) Stock
LR062088 HOSE - WATER $49.74 To Order
Photo Part No Description Price (each) Stock
LR034575 RADIATOR - AUXILIARY $174.78 To Order
Photo Part No Description Price (each) Stock
LR062093 HOSE - FUEL COOLER INLET $68.91 To Order
Photo Part No Description Price (each) Stock
LR036521 HOSE - FUEL COOLER $14.13 To Order
Photo Part No Description Price (each) Stock
LR036520 HOSE - FUEL COOLER $42.08 To Order
Photo Part No Description Price (each) Stock
LR042509 BRACKET - FUEL COOLER $20.67 To Order
Photo Part No Description Price (each) Stock
LR038811 COOLER - FUEL $213.74 To Order
Photo Part No Description Price (each) Stock
LR062426 BRACKET - RADIATOR $11.66 To Order
LR077414 BRACKET - RADIATOR $39.30 To Order
Photo Part No Description Price (each) Stock
LR062428 BRACKET $8.92 To Order
LR077417 BRACKET - RADIATOR $45.69 To Order
View All

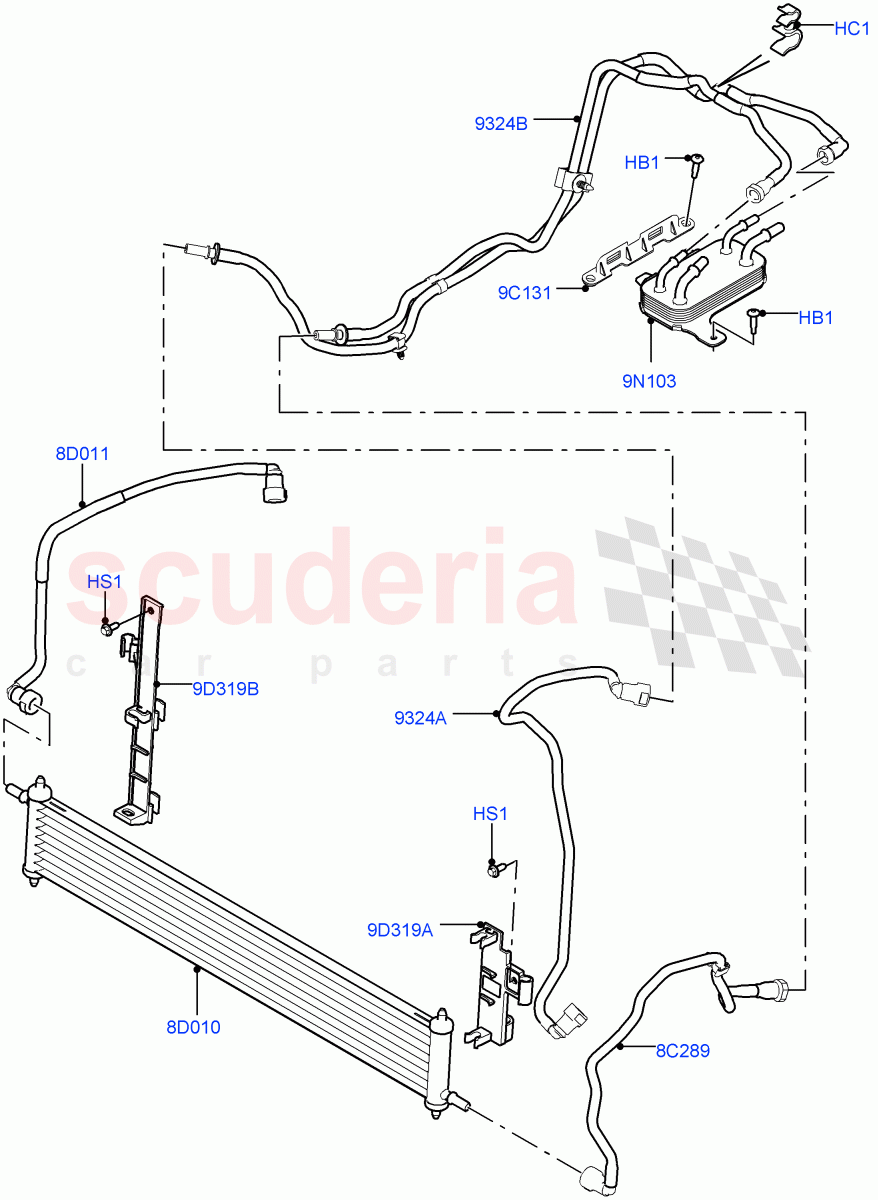

Fuel Cooler Assembly (3.0 V6 D Gen2 Mono Turbo, 8 Speed Auto Trans ZF 8HP70 4WD, 3.0 V6 D Gen2 Twin Turbo) ((V) FROMFA000001, (V) TOGA999999) of Land Rover Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR034354
BOLT - PAN - TORX
M6 x 19MM, Torx / From: FA000001 		$1.07 3
HC1 LR024832
CLIP
6-6.5 + 9.5-10.5 Pipe Swivel Plastic, Double / From: FA000001 		$1.04 1
HS1 PYP500070
SCREW
6 x 16MM, Hexagonal Head / From: FA000001 		$0.80 2
8C289 LR062088
HOSE - WATER
Fuel Coolant Cooler, Outlet / From: FA000001 		$49.74 1
8D010 LR034575
RADIATOR - AUXILIARY
Fuel Coolant Cooler / From: FA000001 		$174.78 1
8D011 LR062093
HOSE - FUEL COOLER INLET
Fuel Coolant Cooler, Inlet / From: FA000001 		$68.91 1
9C131 LR042509
BRACKET - FUEL COOLER
For Fuel Cooler / From: FA000001 		$20.67 1
9D319A LR062426
BRACKET - RADIATOR
LH, Radiator Mounting / From: FA000001 / To: FA999999 		$11.66 1
9D319A LR077414
BRACKET - RADIATOR
LH, Radiator Mounting / From: GA000001 		$39.30 1
9D319B LR062428
BRACKET
RH, Radiator Mounting / From: FA000001 / To: FA999999 		$8.92 1
9D319B LR077417
BRACKET - RADIATOR
RH, Radiator Mounting / From: GA000001 		$45.69 1
9N103 LR038811
COOLER - FUEL
Main / From: FA000001 		$213.74 1
9324A LR036521
HOSE - FUEL COOLER
From: FA000001 		$14.13 1
9324B LR036520
HOSE - FUEL COOLER
Fuel Cooler Inlet, Outlet, Set Of 2 Pieces / From: FA000001 / To: GA999999 		$42.08 1
