Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC] - Intercooler/Air Ducts And Hoses (Solihull Plant Build) (3.0 V6 D Gen2 Twin Turbo) ((V) FROMFA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS106126 BOLT $0.52 IN STOCK
Photo Part No Description Price (each) Stock
FS108166 BOLT $0.68 IN STOCK
Photo Part No Description Price (each) Stock
LR016628 CLAMP - TUBE $2.77 To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.46 IN STOCK
FN106046 NUT - HEX. $1.46 IN STOCK
Photo Part No Description Price (each) Stock
RYP500200 SCREW $0.94 To Order
Photo Part No Description Price (each) Stock
FS106166 SCREW $1.24 IN STOCK
Photo Part No Description Price (each) Stock
LR049174 BRACKET - SUPPORT $11.69 To Order
Photo Part No Description Price (each) Stock
LR067037 CONNECTOR - HOSE $33.65 To Order
Photo Part No Description Price (each) Stock
LR082425 BRACKET - COOLING HOSE $37.18 To Order
Photo Part No Description Price (each) Stock
LR072995 PIPE - TURBO BOOST $100.24 To Order
LR056321 PIPE - TURBO BOOST $77.56 To Order
LR084278 PIPE - TURBO BOOST $199.32 To Order
Photo Part No Description Price (each) Stock
LR056328 TUBE - OUTLET $130.75 To Order
LR094281 TUBE - AIR INLET $341.31 To Order
Photo Part No Description Price (each) Stock
LR062413 HOSE - COMPRESSED AIR $136.36 To Order
LR088290 HOSE - AIR $122.09 To Order
Photo Part No Description Price (each) Stock
LR036489 BRACKET - TUBE $11.07 To Order
Photo Part No Description Price (each) Stock
LR093666 HOSE - SYMPOSER $125.19 To Order
Photo Part No Description Price (each) Stock
LR014386 SENSOR - AIR CHARGE $115.68 To Order
Photo Part No Description Price (each) Stock
LR062410 HOSE - COMPRESSED AIR $310.63 To Order
Photo Part No Description Price (each) Stock
LR062408 HOSE - COMPRESSED AIR $82.39 To Order
LR084256 HOSE - COMPRESSED AIR $134.25 To Order
LR116344 HOSE - COMPRESSED AIR $145.29 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR062463 TUBE - OUTLET $215.14 To Order
Photo Part No Description Price (each) Stock
LR062031 TUBE - OUTLET $281.60 To Order
LR109964 TUBE - OUTLET $263.62 To Order
Photo Part No Description Price (each) Stock
LR062500 HOSE - COMPRESSED AIR $202.64 To Order
Photo Part No Description Price (each) Stock
LR036414 SEAL - H-PIECE - HP AIR DUCTS $35.28 To Order
View All

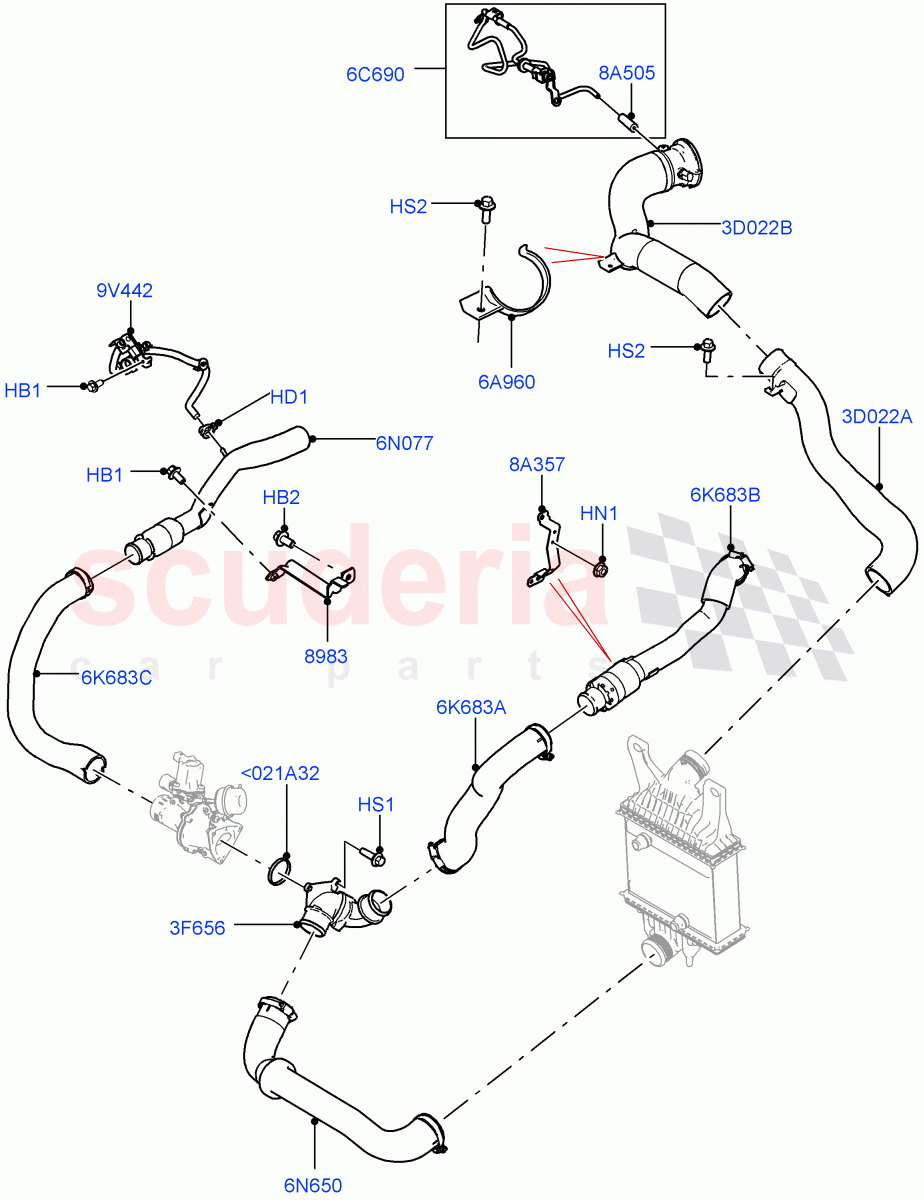

Intercooler/Air Ducts And Hoses (Solihull Plant Build) (3.0 V6 D Gen2 Twin Turbo) ((V) FROMFA000001) of Land Rover Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<021A32 LR036414
SEAL - H-PIECE - HP AIR DUCTS
T-Connector / From: FA000001 		$35.28 1
HB1 FS106126
BOLT
Hexagonal Head, M6 x 12MM / From: FA000001
IN STOCK 		$0.52 2
HB2 FS108166
BOLT
Hexagonal Head, M8 X 16MM / From: FA000001
IN STOCK 		$0.68 1
HD1 LR016628
CLAMP - TUBE
Hose Clamp / From: FA000001 		$2.77 1
HN1 FN106046
NUT - HEX.
Hexagonal Head, M6 / From: FA000001
IN STOCK 		$1.46 1
HN1 FN106046
NUT - HEX.
Bracket to frame, Hexagonal Head, M6 / From: EA000001
IN STOCK 		$1.46 3
HS1 RYP500200
SCREW
Hexagonal Head, M6 X 20MM / From: FA000001 		$0.94 3
HS2 FS106166
SCREW
Hexagonal Head, M6 X 16MM / From: FA000001
IN STOCK 		$1.24 2
3D022A LR062410
HOSE - COMPRESSED AIR
Intercooler Outlet, With Clamps / From: FA000001 		$310.63 1
3D022B LR062408
HOSE - COMPRESSED AIR
Intercooler To Throttle Body, With Clamps / From: FA000001 / To: GA571108 		$82.39 1
3D022B LR084256
HOSE - COMPRESSED AIR
Intercooler To Throttle Body, With Clamps / From: GA571109 / To: HA999999 		$134.25 1
3D022B LR116344
HOSE - COMPRESSED AIR
Intercooler To Throttle Body, With Clamps / From: JA000001 / To: JA999999 		$145.29 1
3D022B LR117083
HOSE - COMPRESSED AIR
Intercooler To Throttle Body, With Clamps / From: KA000001 		$150.37 1
3F656 LR067037
CONNECTOR - HOSE
T-Connector / From: FA000001 		$33.65 1
6A960 LR082425
BRACKET - COOLING HOSE
Air Intake Hose / From: FA000001 		$37.18 1
6C690 LR072995
PIPE - TURBO BOOST
From: FA000001 / To: GA305542 		$100.24 1
6C690 LR056321
PIPE - TURBO BOOST
From: GA305543 / To: GA308324 		$77.56 1
6C690 LR084278
PIPE - TURBO BOOST
From: GA308325 		$199.32 1
6K683A LR062463
TUBE - OUTLET
LH, Inlet, T-Connector, With Clamps / From: FA000001 		$215.14 1
6K683B LR062031
TUBE - OUTLET
LH, Turbocharger Outlet, With Clamps / From: FA000001 / To: HA355275 		$281.60 1
6K683B LR109964
TUBE - OUTLET
LH, Turbocharger Outlet, With Clamps / From: HA355276 		$263.62 1
6K683C LR062500
HOSE - COMPRESSED AIR
RH, Inlet, Shut Off Valve, With Clamps / From: FA000001 		$202.64 1
6N077 LR056328
TUBE - OUTLET
RH, Turbocharger Outlet, With Clamps / From: FA000001 / To: GA313183 		$130.75 1
6N077 LR094281
TUBE - AIR INLET
RH, Turbocharger Outlet, With Clamps / From: GA313184 		$341.31 1
6N650 LR062413
HOSE - COMPRESSED AIR
Bottom, Intercooler Inlet, With Clamps / From: FA000001 / To: GA999999 		$136.36 1
6N650 LR088290
HOSE - AIR
Bottom, Intercooler Inlet, With Clamps / From: HA000001 		$122.09 1
8A357 LR036489
BRACKET - TUBE
Turbocharger Outlet / From: FA000001 		$11.07 1
8A505 LR093666
HOSE - SYMPOSER
Boost Pipe / From: FA000001 		$125.19 1
9V442 LR014386
SENSOR - AIR CHARGE
Secondary Compressor Outlet Pressure Sensor / From: FA000001 		$115.68 1
8983 LR049174
BRACKET - SUPPORT
8 Speed Auto Trans ZF 8HP70 HEV 4WD / Tube, Turbocharger Outlet / From: FA000001 		$11.69 1
