Air Cleaner (3.0 V6 D Gen2 Mono Turbo, 3.0 V6 D Low Mt Row) ((V) Fromfa000001)

Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC] - Air Cleaner (3.0 V6 D Gen2 Mono Turbo, 3.0 V6 D Low MT ROW) ((V) FROMFA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.47 IN STOCK
Photo Part No Description Price (each) Stock
RYG500160 SCREW $0.63 To Order
Photo Part No Description Price (each) Stock
LR008793 SCREW $0.99 To Order
Photo Part No Description Price (each) Stock
LR062607 CLEANER - AIR $493.08 To Order
LR095546 CLEANER - AIR $443.29 To Order
Photo Part No Description Price (each) Stock
LR161843 FILTER - AIR CLEANER $59.57 IN STOCK
Photo Part No Description Price (each) Stock
LR062650 GUIDE - DIRTY AIR DUCT $24.81 To Order
Photo Part No Description Price (each) Stock
LR049314 MOULDING - SNOW INGRESS PROTECTOR $175.76 To Order
Photo Part No Description Price (each) Stock
LR036450 GRILLE - DIRTY AIR DUCT $11.54 To Order
LR057623 GRILLE - DIRTY AIR DUCT $16.48 To Order
LR113348 GRILLE - DIRTY AIR DUCT $11.54 To Order
Photo Part No Description Price (each) Stock
LR062057 TUBE - TURBOCHARGER INLET $150.41 To Order
LR084058 TUBE - TURBOCHARGER INLET $163.34 To Order
Photo Part No Description Price (each) Stock
LR000753 INSULATOR - AIR CLEANER HOUSING $4.95 IN STOCK
Photo Part No Description Price (each) Stock
LR071914 SENSOR - MASS AIR FLOW $421.60 To Order
Photo Part No Description Price (each) Stock
LR062830 DUCT - CLEAN AIR $163.67 To Order
Photo Part No Description Price (each) Stock
LR063053 DUCT - CLEAN AIR $194.66 To Order
LR078392 DUCT - CLEAN AIR $159.13 To Order
View All

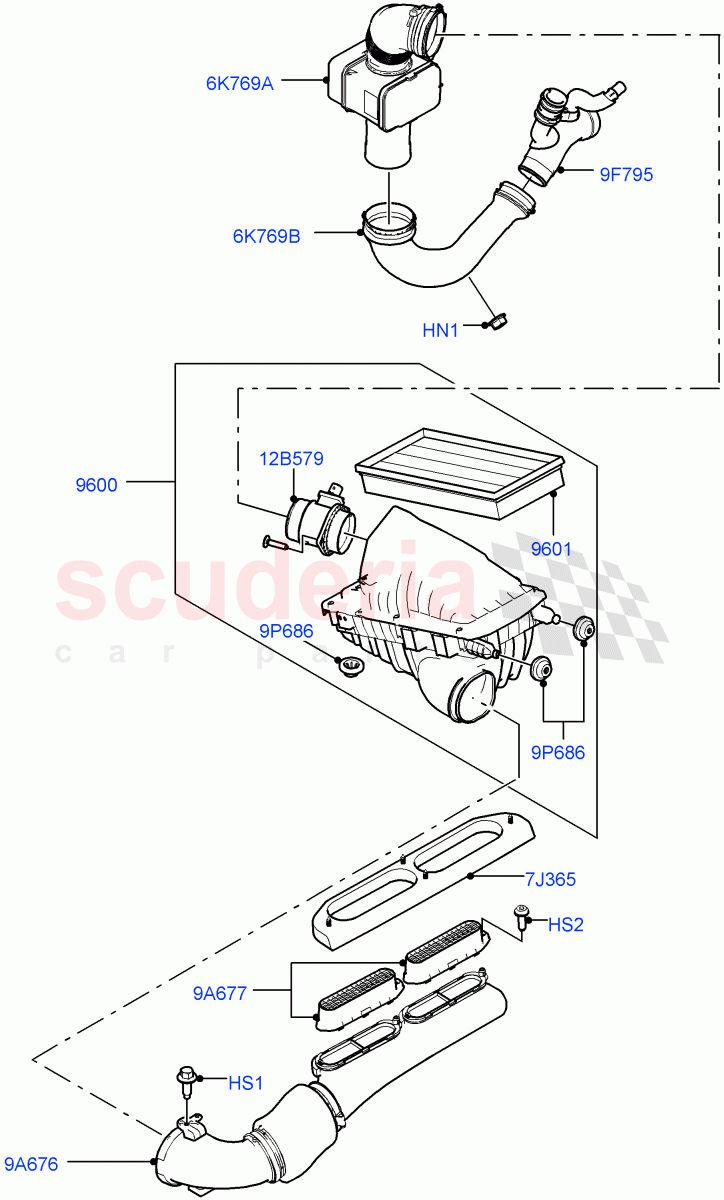

Air Cleaner (3.0 V6 D Gen2 Mono Turbo, 3.0 V6 D Low MT ROW) ((V) FROMFA000001) of Land Rover Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HN1 FN106046
NUT - HEX.
Hexagonal Head, M6 / From: FA000001
IN STOCK 		$1.47 1
HS1 RYG500160
SCREW
Hexagonal Head, M6 X 14MM / From: FA000001 		$0.63 2
HS2 LR008793
SCREW
M5 X 16MM, Torx / From: FA000001 		$0.99 2
6K769A LR062830
DUCT - CLEAN AIR
Air Cleaner Outlet, Upper / From: FA000001 		$163.67 1
6K769B LR063053
DUCT - CLEAN AIR
Middle, Turbocharger Inlet / From: FA000001 / To: GA286713 		$194.66 1
6K769B LR078392
DUCT - CLEAN AIR
Middle, Turbocharger Inlet / From: GA286714 		$159.13 1
7J365 LR062650
GUIDE - DIRTY AIR DUCT
Mounted To Hood / From: FA000001 		$24.81 2
9A676 LR049314
MOULDING - SNOW INGRESS PROTECTOR
LH / From: FA000001 		$175.76 1
9A677 LR036450
GRILLE - DIRTY AIR DUCT
LH Side Only, Open Type / From: FA000001 / To: HA999999 		$11.54 2
9A677 LR057623
GRILLE - DIRTY AIR DUCT
Blanked, RH Side Only / From: FA000001 		$16.48 2
9A677 LR113348
GRILLE - DIRTY AIR DUCT
LH Side Only, Open Type / From: JA000001 		$11.54 2
9F795 LR062057
TUBE - TURBOCHARGER INLET
Lower, Turbocharger Inlet / From: FA000001 / To: GA272671 		$150.41 1
9F795 LR084058
TUBE - TURBOCHARGER INLET
Lower, Turbocharger Inlet / From: GA272672 		$163.34 1
9P686 LR000753
INSULATOR - AIR CLEANER HOUSING
From: FA000001
IN STOCK 		$4.95 3
12B579 LR071914
SENSOR - MASS AIR FLOW
LH / From: FA000001 		$421.60 1
9600 LR062607
CLEANER - AIR
LH / From: FA000001 / To: HA347809 		$493.08 1
9600 LR095546
CLEANER - AIR
LH / From: HA347810 		$443.29 1
9601 LR161843
FILTER - AIR CLEANER
From: FA000001
IN STOCK 		$59.57 1
