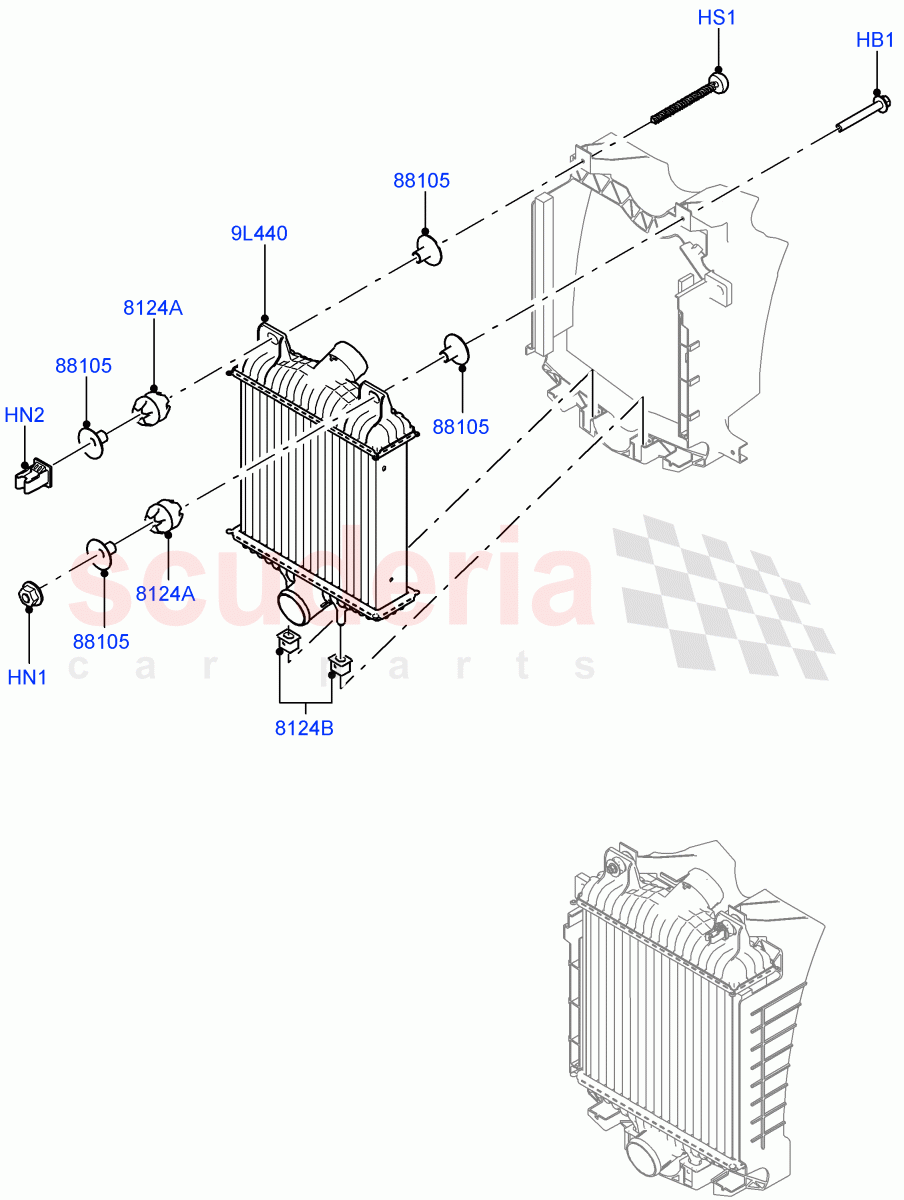

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FB106086	BOLT	$2.71	To Order

Photo	Part No	Description	Price (each)	Stock
	FX106046	NUT - FLANGED	$0.60	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR040752	NUT	$1.80	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044338	SCREW - PAN - TORX	$1.60	To Order

Photo	Part No	Description	Price (each)	Stock
	LR034552	INSULATOR - INTERCOOLER	$10.10	To Order

Photo	Part No	Description	Price (each)	Stock
	LR007399	INSULATOR - RUBBER	$1.67	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR038854	BUSH - INSULATING	$3.13	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036432	INTERCOOLER	$322.92	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	FB106086	BOLT	FB106086 BOLT HEX Flange, M6 X 40MM	$2.71	2
HN1	FX106046	NUT - FLANGED IN STOCK	FX106046 NUT - FLANGED HEX Flange, Hexagonal Head, M6 IN STOCK	$0.60	2
HN2	LR040752	NUT	LR040752 NUT Plastic	$1.80	2
HS1	LR044338	SCREW - PAN - TORX	LR044338 SCREW - PAN - TORX Torx	$1.60	2
9L440	LR036432	INTERCOOLER	LR036432 INTERCOOLER	$322.92	2
8124A	LR034552	INSULATOR - INTERCOOLER	LR034552 INSULATOR - INTERCOOLER Intercooler, Top	$10.10	4
8124B	LR007399	INSULATOR - RUBBER IN STOCK	LR007399 INSULATOR - RUBBER Bottom, Intercooler IN STOCK	$1.67	4
88105	LR038854	BUSH - INSULATING	LR038854 BUSH - INSULATING Intercooler, Top	$3.13	8
