Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol AJ200P] - Electrical Wiring - Engine And Dash (5.0L OHC SGDI NA V8 Petrol - AJ133)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FN108042 NUT $1.40 To Order
Photo Part No Description Price (each) Stock
LR011413 SCREW $1.09 To Order
Photo Part No Description Price (each) Stock
FS110206 BOLT - HEX.HEAD $0.76 To Order
Photo Part No Description Price (each) Stock
FA106126 SCREW $0.46 IN STOCK
Photo Part No Description Price (each) Stock
LR040551 WIRE - ALTERNATOR $284.00 To Order
LR049998 WIRE - ALTERNATOR $224.11 To Order
LR050001 WIRE - ALTERNATOR $145.83 To Order
...and 10 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR011980 HEAT SHIELD - CONNECTOR $9.83 To Order
Photo Part No Description Price (each) Stock
LR011500 HEAT SHIELD - CONNECTOR $106.87 To Order
Photo Part No Description Price (each) Stock
LR043370 WIRING - STARTER MOTOR $16.66 To Order
LR041197 WIRING - STARTER MOTOR $28.10 To Order
LR065955 CABLE - BATTERY TO STARTER MOTOR $71.03 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR011950 WIRE - KNOCK SENSOR $234.72 To Order
Photo Part No Description Price (each) Stock
LR042891 WIRING - ENGINE $1,996.23 To Order
LR051293 WIRING - ENGINE $1,996.23 To Order
LR061556 WIRING - ENGINE $2,642.44 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR016703 BRACKET - CABLE SUPPORT $17.81 To Order
Photo Part No Description Price (each) Stock
LR040624 WIRE - ENGINE EARTH $38.22 To Order
LR064070 WIRE - ENGINE EARTH $62.85 To Order
LR076898 WIRE - ENGINE EARTH $42.28 To Order
View All

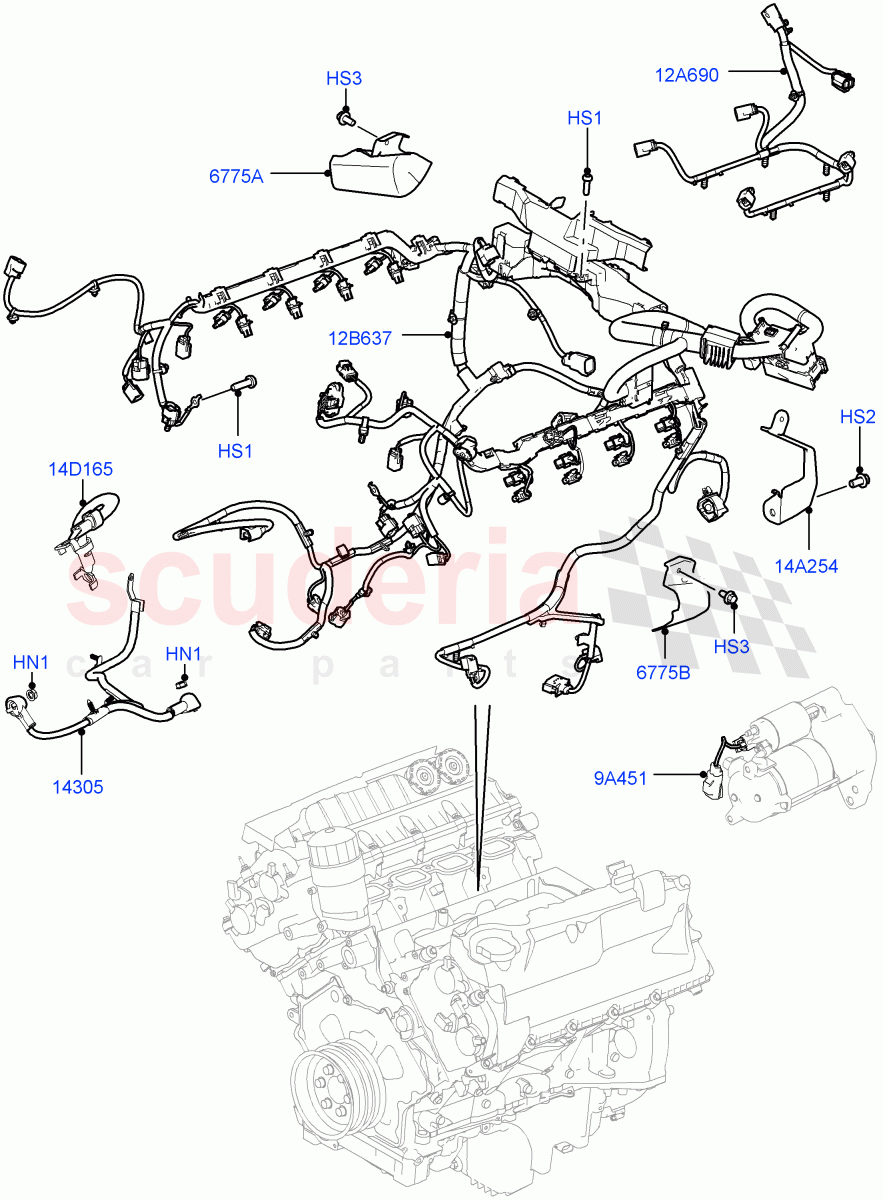

Electrical Wiring - Engine And Dash (5.0L OHC SGDI NA V8 Petrol - AJ133) of Land Rover Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HN1 FN108042
NUT
M8 		$1.40 2
HS1 LR011413
SCREW
M6 X 20MM 		$1.09 2
HS2 FS110206
BOLT - HEX.HEAD
Hexagonal Head, M10 X 20MM 		$0.76 1
HS3 FA106126
SCREW
Hexagonal Head, M6 x 12MM
IN STOCK 		$0.46 2
9A451 LR043370
WIRING - STARTER MOTOR
Standard Electric Starter Motor / Starter / From: EA000001 / To: NA468233 		$16.66 1
9A451 LR041197
WIRING - STARTER MOTOR
Starter - Stop/Start System / Starter / From: EA000001 / To: FA999999 		$28.10 1
9A451 LR065955
CABLE - BATTERY TO STARTER MOTOR
Starter - Stop/Start System / From: GA000001 		$71.03 1
9A451 LR163787
WIRING - STARTER MOTOR
Standard Electric Starter Motor / Starter / From: NA468234 / To: NA272637 		$17.48 1
9A451 LR173607
Wiring
Standard Electric Starter Motor / Starter / From: NA472638 		$16.59 1
12A690 LR011950
WIRE - KNOCK SENSOR
Anti-Knock Sensor 		$234.72 1
12B637 LR042891
WIRING - ENGINE
Engine / To: DA999999 		$1,996.23 1
12B637 LR051293
WIRING - ENGINE
Engine / From: EA000001 / To: EA177035 		$1,996.23 1
12B637 LR061556
WIRING - ENGINE
Engine / From: EA177036 / To: FA241005 		$2,642.44 1
12B637 LR067252
WIRING - ENGINE
Engine / From: FA241006 / To: GA285049 		$2,436.22 1
12B637 LR082637
WIRING - ENGINE
Engine / From: GA285050 		$2,063.89 1
14A254 LR016703
BRACKET - CABLE SUPPORT
LH, Engine Harness 		$17.81 1
14D165 LR040624
WIRE - ENGINE EARTH
Engine Earth / To: EA999999 		$38.22 1
14D165 LR064070
WIRE - ENGINE EARTH
Engine Earth / From: FA000001 / To: FA999999 		$62.85 1
14D165 LR076898
WIRE - ENGINE EARTH
Engine Earth / From: GA000001 		$42.28 1
6775A LR011980
HEAT SHIELD - CONNECTOR
RH 		$9.83 1
6775B LR011500
HEAT SHIELD - CONNECTOR
LH 		$106.87 1
14305 LR040551
WIRE - ALTERNATOR
To: DA999999 		$284.00 1
14305 LR049998
WIRE - ALTERNATOR
Standard Electric Starter Motor / From: EA000001 / To: EA133718 		$224.11 1
14305 LR050001
WIRE - ALTERNATOR
Starter - Stop/Start System / From: EA000001 / To: EA133718 		$145.83 1
14305 LR054590
WIRE - ALTERNATOR
Standard Electric Starter Motor / From: EA133719 / To: EA999999 		$194.23 1
14305 LR054591
WIRE - ALTERNATOR
Starter - Stop/Start System / From: EA133719 / To: EA999999 		$171.14 1
14305 LR063758
WIRE - ALTERNATOR
Standard Electric Starter Motor / From: FA000001 / To: FA999999 		$162.60 1
14305 LR063760
WIRE - ALTERNATOR
Starter - Stop/Start System / From: FA000001 / To: FA999999 		$152.73 1
14305 LR076001
WIRING - ALTERNATOR
Standard Electric Starter Motor / From: GA000001 / To: GA298514 		$113.07 1
14305 LR076003
WIRING - ALTERNATOR
Starter - Stop/Start System / From: GA000001 / To: GA298514 		$109.21 1
14305 LR090098
WIRING - ALTERNATOR
Standard Electric Starter Motor / From: GA298515 / To: GA999999 		$113.07 1
14305 LR090100
WIRING - ALTERNATOR
Starter - Stop/Start System / From: GA298515 / To: GA999999 		$109.21 1
14305 LR085673
WIRE - ALTERNATOR
Starter - Stop/Start System / From: HA000001 		$159.73 1
14305 LR085674
WIRE - ALTERNATOR
Standard Electric Starter Motor / From: HA000001 		$139.66 1
