Switches (Auxiliary Unit)

Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol AJ200P] - Switches (Auxiliary Unit)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR034901 SWITCH - GLOVE BOX OPENING $53.94 To Order
LR074278 SWITCH - INSTRUMENT PANEL $98.04 To Order
LR071936 SWITCH - GLOVE BOX OPENING $131.34 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR071267 MICROSWITCH - TOWING $46.32 To Order
LR071267 MICROSWITCH - TOWING $46.32 To Order
LR086361 MICROSWITCH $49.45 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR038676 SWITCH - TAILGATE $104.59 To Order
LR047121 SWITCH - TAILGATE $135.78 To Order
VPLWP0183 SWITCH - LIGHTING $134.73 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR060998 SWITCH - LIGHTING $100.22 To Order
LR060998 SWITCH - LIGHTING $100.22 To Order
LR120544 SWITCH $127.83 To Order
...and 4 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR061000 SWITCH - LIGHTING $129.07 To Order
LR120547 SWITCH $112.15 To Order
LR101851 SWITCH - LIGHTING $72.34 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR034854 SWITCH - POWER SEAT ADJUST $166.16 To Order
LR072030 SWITCH - POWER SEAT ADJUST $39.29 To Order
LR101441 SWITCH - POWER SEAT ADJUST $220.52 To Order
Photo Part No Description Price (each) Stock
LR101440 SWITCH - POWER SEAT ADJUST $167.73 To Order
Photo Part No Description Price (each) Stock
LR098357 SWITCH - SUSPENSION HEIGHT ADJUST. $173.69 To Order
LR098358 SWITCH - SUSPENSION HEIGHT ADJUST. $173.69 To Order
LR070369 SWITCH - POWER SEAT ADJUST $420.37 To Order
View All

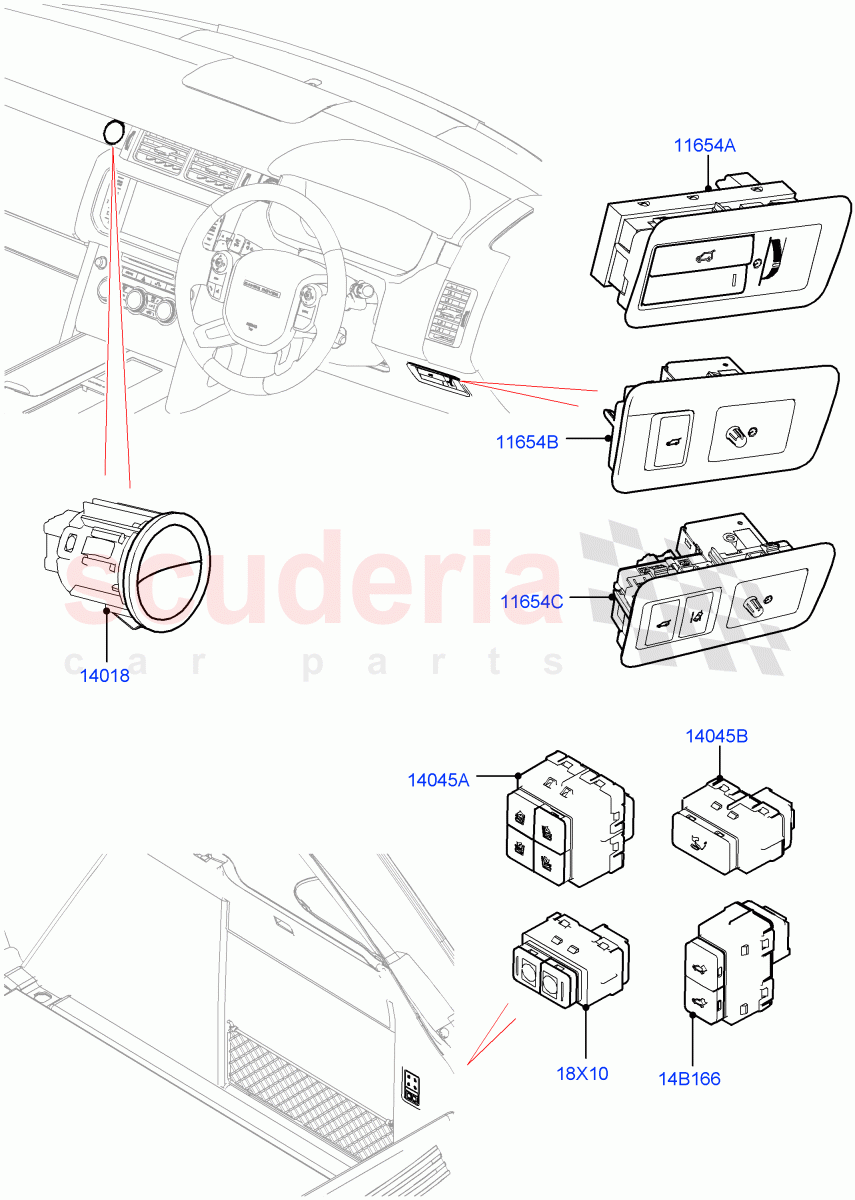

Switches (Auxiliary Unit) of Land Rover Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
14B166 LR098357
SWITCH - SUSPENSION HEIGHT ADJUST.
Less Trailer Towing Hitch / Suspension Height Adjust / From: JA000001 		$173.69 1
14B166 LR098358
SWITCH - SUSPENSION HEIGHT ADJUST.
Tow Hitch Elec Deployable Swan Neck / Suspension Height Adjust / From: JA000001 		$173.69 1
14B166 LR070369
SWITCH - POWER SEAT ADJUST
Driver/Pass Elec Fr Seat Adj/Memory, Drv Pwr Hd-Rest/Fore/Aft/Heat/Tilt, Less Articulated Squabs, Lumbr Massge-Adjustable Bolster Drv, Pass Pwr Hd-Rest/Fore/Aft/Heat/Tilt / LH / From: GA000001 / To: HA999999 		$420.37 1
18X10 LR071267
MICROSWITCH - TOWING
Tow Hitch Elec Deployable Swan Neck / Deploys Towing Hook, Located Inside Luggage Compartment, Soft Feel Paint / To: FA999999 		$46.32 1
18X10 LR071267
MICROSWITCH - TOWING
Tow Hitch Elec Deployable Swan Neck / Deploys Towing Hook, Hard Coat Ebony Paint, Located Inside Luggage Compartment / From: GA000001 / To: GA999999 		$46.32 1
18X10 LR086361
MICROSWITCH
Tow Hitch Elec Deployable Swan Neck / Deploys Towing Hook, Located Inside Luggage Compartment / From: HA000001 / To: HA330052 		$49.45 1
18X10 LR086361
MICROSWITCH
Tow Hitch Elec Deployable Swan Neck / Deploys Towing Hook, Located Inside Luggage Compartment / From: HA330053 / To: HA999999 		$49.45 1
11654A LR038676
SWITCH - TAILGATE
Less Lane Departure Warning System, Tailgate - Manual / Dash Panel, Not Compatible With Power Deployable Side Steps, Soft Feel Paint / From: EA000001 / To: FA999999 		$104.59 1
11654A LR047121
SWITCH - TAILGATE
Run Off Road Warning System, Tailgate - Power / Dash Panel, Not Compatible With Power Deployable Side Steps / From: EA000001 / To: FA999999 		$135.78 1
11654A VPLWP0183
SWITCH - LIGHTING
Run Off Road Warning System, Tailgate - Power / Compatible With Power Deployable Side Steps, Dash Panel / To: EA999999 		$134.73 1
11654A LR061654
SWITCH - LIGHTING
Run Off Road Warning System, Tailgate - Power / Compatible With Power Deployable Side Steps, Dash Panel / From: FA000001 		$109.63 1
11654A LR038676
SWITCH - TAILGATE
Tailgate - Power / Dash Panel, Not Compatible With Power Deployable Side Steps, Soft Feel Paint / To: DA999999 		$104.59 1
11654A LR116286
SWITCH - LIGHTING
Less Lane Departure Warning System, Tailgate - Power / Dash Panel, Hard Coat Ebony Paint, Not Compatible With Power Deployable Side Steps / To: FA999999 		$170.68 1
11654B LR060998
SWITCH - LIGHTING
Less Lane Departure Warning System / From: GA000001 / To: HA999999 		$100.22 1
11654B LR060998
SWITCH - LIGHTING
5.0L P AJ133 DOHC CDA S/C Enhanced / From: JA000001 / To: JA515760 		$100.22 1
11654B LR120544
SWITCH
Less Electric Engine Battery, RHD / From: KA533107 		$127.83 1
11654B LR060998
SWITCH - LIGHTING
LHD, Less Electric Engine Battery / From: KA533107 		$100.22 1
11654B LR060998
SWITCH - LIGHTING
Electric Engine Battery-MHEV / From: JA515761 / To: KA999999 		$100.22 1
11654B LR120544
SWITCH
Electric Engine Battery-MHEV, RHD / From: LA000001 		$127.83 1
11654B LR060998
SWITCH - LIGHTING
Electric Engine Battery-MHEV, LHD / From: LA000001 		$100.22 1
11654C LR061000
SWITCH - LIGHTING
Run Off Road Warning System / From: GA000001 / To: HA999999 		$129.07 1
11654C LR120547
SWITCH
Electric Engine Battery-PHEV, RHD / From: KA533107 		$112.15 1
11654C LR101851
SWITCH - LIGHTING
2.0L AJ200P Hi PHEV / From: JA000001 / To: KA533106 		$72.34 1
11654C LR101851
SWITCH - LIGHTING
Electric Engine Battery-PHEV, LHD / From: KA533107 		$72.34 1
14018 LR034901
SWITCH - GLOVE BOX OPENING
Glovebox Switch / To: FA999999 		$53.94 1
14018 LR074278
SWITCH - INSTRUMENT PANEL
Console Deployable Tables / Glovebox Switch / From: GA000001 / To: GA999999 		$98.04 1
14018 LR071936
SWITCH - GLOVE BOX OPENING
Less Console Deployable Tables / Glovebox Switch / From: GA000001 / To: GA999999 		$131.34 1
14018 LR071936
SWITCH - GLOVE BOX OPENING
Rotary Gearshift Knob - Leather / Glovebox Switch / From: HA000001 		$131.34 1
14018 LR091597
SWITCH - GLOVE BOX OPENING
Rotary Gearshift Knob - Red / Glovebox Switch / From: HA000001 		$121.99 1
14045A LR034854
SWITCH - POWER SEAT ADJUST
With 60/40 Power Fold Thru Rr Seat / Located Inside Luggage Compartment, Soft Feel Paint / To: HA999999 		$166.16 1
14045A LR072030
SWITCH - POWER SEAT ADJUST
With 60/40 Power Fold Thru Rr Seat / Hard Coat Ebony Paint, Located Inside Luggage Compartment / From: GA000001 / To: HA999999 		$39.29 1
14045A LR101441
SWITCH - POWER SEAT ADJUST
With 60/40 Power Fold Thru Rr Seat / Located Inside Luggage Compartment / From: JA000001 		$220.52 1
14045B LR101440
SWITCH - POWER SEAT ADJUST
40/20/40 Super Slouch Rear Seat / Located Inside Luggage Compartment / From: JA000001 		$167.73 1
