Electrical Wiring - Body And Rear (Towing)

Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol AJ200P] - Electrical Wiring - Body And Rear (Towing)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS108256 BOLT $3.57 IN STOCK
Photo Part No Description Price (each) Stock
LR044090 WIRING - TRAILER CONNECTION $216.23 To Order
Photo Part No Description Price (each) Stock
LR040540 WIRING - TRAILER COUPLING $57.20 To Order
LR045637 WIRING - TRAILER COUPLING $125.20 To Order
LR094165 WIRING - TRAILER COUPLING $258.03 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR040541 WIRING - TRAILER COUPLING $45.78 To Order
LR046791 WIRING - TRAILER COUPLING $208.50 To Order
LR094166 WIRING - TRAILER COUPLING $258.03 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR040542 WIRING - TRAILER COUPLING $45.06 To Order
LR046792 WIRING - TRAILER COUPLING $223.43 To Order
LR094167 WIRING - TRAILER COUPLING $258.03 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR041088 BRACKET - SOCKET SUPPORT $59.10 To Order
LR093343 BRACKET - SOCKET SUPPORT $36.16 To Order
Photo Part No Description Price (each) Stock
LR041089 BRACKET - SOCKET SUPPORT $59.10 To Order
LR093344 BRACKET - SOCKET SUPPORT $36.16 To Order
Photo Part No Description Price (each) Stock
LR041090 BRACKET - SOCKET SUPPORT $59.10 To Order
LR093345 BRACKET - SOCKET SUPPORT $35.16 To Order
LR121363 BRACKET - SOCKET SUPPORT $32.47 To Order
View All

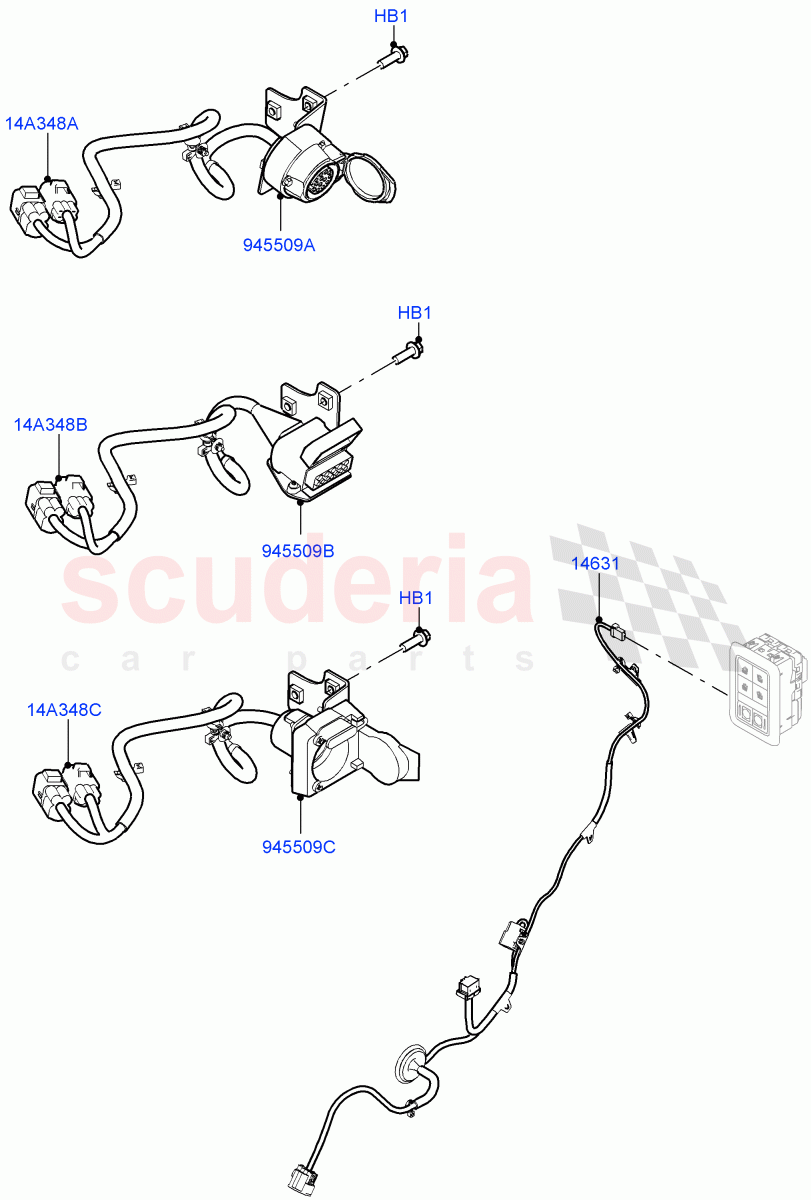

Electrical Wiring - Body And Rear (Towing) of Land Rover Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS108256
BOLT
Hexagonal Head, M8 X 25MM
IN STOCK 		$3.57 2
14A348A LR040540
WIRING - TRAILER COUPLING
Tow Hitch Multi Height Swan Neck / To: DA105107 		$57.20 1
14A348A LR045637
WIRING - TRAILER COUPLING
Tow Hitch Multi Height Swan Neck / From: DA105108 / To: GA999999 		$125.20 1
14A348A LR094165
WIRING - TRAILER COUPLING
Tow Hitch Elec Deployable Swan Neck / From: HA000001 / To: HA367572 		$258.03 1
14A348A LR102411
WIRING - TRAILER COUPLING
Tow Hitch Elec Deployable Swan Neck / From: JA000001 / To: JA999999 		$186.06 1
14A348A LR108261
WIRING - TRAILER COUPLING
Tow Hitch Elec Deployable Swan Neck / From: HA367573 / To: HA999999 		$191.12 1
14A348A LR120145
WIRING - TRAILER COUPLING
Tow Hitch Elec Deployable Swan Neck / From: KA000001 		$240.36 1
14A348B LR040541
WIRING - TRAILER COUPLING
Tow Hitch Receiver 12 Pin Elec / To: DA108046 		$45.78 1
14A348B LR046791
WIRING - TRAILER COUPLING
Tow Hitch Receiver 12 Pin Elec / From: DA108047 / To: GA999999 		$208.50 1
14A348B LR094166
WIRING - TRAILER COUPLING
Tow Hitch Receiver 12 Pin Elec / From: HA000001 / To: HA367572 		$258.03 1
14A348B LR102410
WIRING - TRAILER COUPLING
Tow Hitch Receiver 12 Pin Elec / From: JA000001 / To: JA999999 		$191.12 1
14A348B LR108262
WIRING - TRAILER COUPLING
Tow Hitch Receiver 12 Pin Elec / From: HA367573 / To: HA999999 		$191.12 1
14A348B LR120144
WIRING - TRAILER COUPLING
Tow Hitch Receiver 12 Pin Elec / From: KA000001 		$242.05 1
14A348C LR040542
WIRING - TRAILER COUPLING
Tow Hitch Receiver NAS / To: DA108046 		$45.06 1
14A348C LR046792
WIRING - TRAILER COUPLING
Tow Hitch Receiver NAS / From: DA108047 / To: GA999999 		$223.43 1
14A348C LR094167
WIRING - TRAILER COUPLING
Tow Hitch Receiver NAS / From: HA000001 / To: HA367572 		$258.03 1
14A348C LR102412
WIRING - TRAILER COUPLING
Tow Hitch Receiver NAS / From: JA000001 / To: JA999999 		$191.12 1
14A348C LR108263
WIRING - TRAILER COUPLING
Tow Hitch Receiver NAS / From: HA367573 / To: HA999999 		$258.03 1
14A348C LR120146
WIRING - TRAILER COUPLING
Tow Hitch Receiver NAS / From: KA000001 		$242.05 1
14631 LR044090
WIRING - TRAILER CONNECTION
Tow Hitch Elec Deployable Swan Neck 		$216.23 1
945509A LR041088
BRACKET - SOCKET SUPPORT
Tow Hitch Multi Height Swan Neck / To: GA999999 		$59.10 1
945509A LR093343
BRACKET - SOCKET SUPPORT
Tow Hitch Multi Height Swan Neck / From: HA000001 		$36.16 1
945509B LR041089
BRACKET - SOCKET SUPPORT
Tow Hitch Receiver 12 Pin Elec / To: GA999999 		$59.10 1
945509B LR093344
BRACKET - SOCKET SUPPORT
Tow Hitch Receiver 12 Pin Elec / From: HA000001 		$36.16 1
945509C LR041090
BRACKET - SOCKET SUPPORT
Tow Hitch Receiver NAS / To: GA999999 		$59.10 1
945509C LR093345
BRACKET - SOCKET SUPPORT
Tow Hitch Receiver NAS / From: HA000001 / To: HA999999 		$35.16 1
945509C LR121363
BRACKET - SOCKET SUPPORT
Tow Hitch Receiver NAS / From: JA000001 		$32.47 1
