Fuel Tank & Related Parts (2.0L Aj200P Hi Phev) ((V) Fromja000001)

Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol AJ200P] - Fuel Tank & Related Parts (2.0L AJ200P Hi PHEV) ((V) FROMJA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR093364 BOLT $2.81 To Order
Photo Part No Description Price (each) Stock
LR061655 CLAMP - FUEL SUPPLY TUBE $6.12 To Order
Photo Part No Description Price (each) Stock
FN106042 NUT $1.03 IN STOCK
Photo Part No Description Price (each) Stock
AYP500110 SCREW $0.96 IN STOCK
Photo Part No Description Price (each) Stock
LR106356 TANK - FUEL $2,261.93 To Order
LR117105 TANK - FUEL $2,442.89 To Order
Photo Part No Description Price (each) Stock
202123475 CAP - FUEL TANK FILLER $40.75 To Order
LR138720 CAP - FUEL TANK FILLER $39.30 To Order
Photo Part No Description Price (each) Stock
LR101055 PIPE - FUEL FILLER $176.52 To Order
Photo Part No Description Price (each) Stock
LR106358 SPACER - STRIKER $8.25 To Order
Photo Part No Description Price (each) Stock
LR106359 SPACER - STRIKER $8.04 To Order
Photo Part No Description Price (each) Stock
LR106357 TUBE - FUEL $308.26 To Order
LR117106 TUBE - FUEL $300.78 To Order
Photo Part No Description Price (each) Stock
LR102211 TUBE - VENTILATION $199.70 To Order
Photo Part No Description Price (each) Stock
LR101026 TUBE - VENTILATION $68.09 To Order
View All

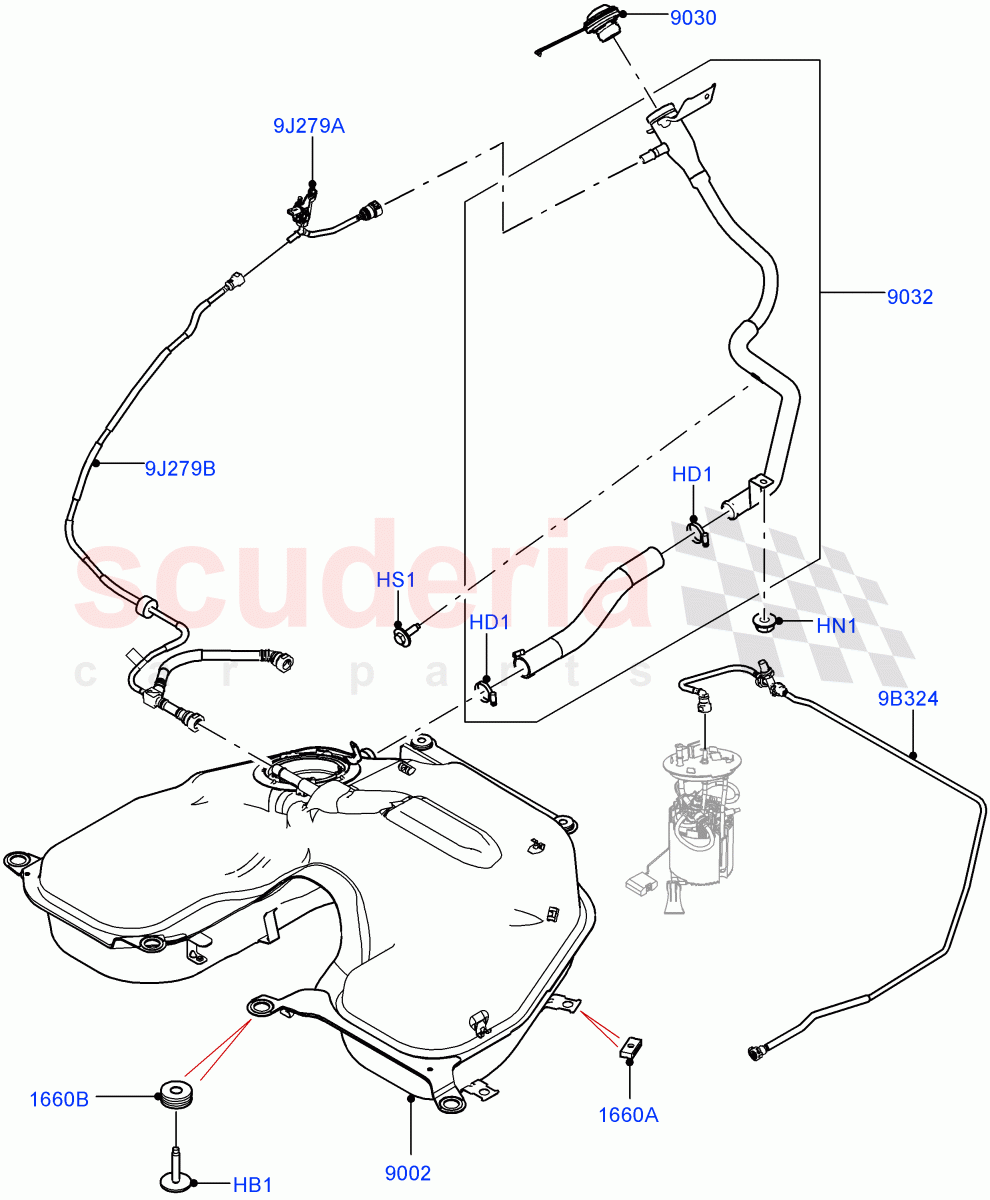

Fuel Tank & Related Parts (2.0L AJ200P Hi PHEV) ((V) FROMJA000001) of Land Rover Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR093364
BOLT
Hexagonal Head, M10 X 50MM / From: JA000001 		$2.81 4
HD1 LR061655
CLAMP - FUEL SUPPLY TUBE
35-50 x 9 / From: JA000001 		$6.12 2
HN1 FN106042
NUT
Filler Neck, Hexagonal Head, M6 / From: JA000001
IN STOCK 		$1.03 2
HS1 AYP500110
SCREW
Bolt And Washer, Hexagonal Head, M6 X 20MM / From: JA000001
IN STOCK 		$0.96 1
9B324 LR106357
TUBE - FUEL
Includes Fuel Pressure Sensor / From: JA000001 / To: JA398276 		$308.26 1
9B324 LR117106
TUBE - FUEL
Includes Fuel Pressure Sensor / From: JA398277 		$300.78 1
9J279A LR102211
TUBE - VENTILATION
Includes Fuel Pressure Sensor, Upper / From: JA000001 		$199.70 1
9J279B LR101026
TUBE - VENTILATION
Fuel Tank Ventilation Pipe, Lower / From: JA000001 		$68.09 1
1660A LR106358
SPACER - STRIKER
Aero Shield Isolator / From: JA000001 		$8.25 4
1660B LR106359
SPACER - STRIKER
From: JA000001 		$8.04 6
9002 LR106356
TANK - FUEL
From: JA000001 / To: JA398276 		$2,261.93 1
9002 LR117105
TANK - FUEL
From: JA398277 		$2,442.89 1
9030 202123475
CAP - FUEL TANK FILLER
From: JA000001 / To: MA419659 		$40.75 1
9030 LR138720
CAP - FUEL TANK FILLER
From: MA419660 		$39.30 1
9032 LR101055
PIPE - FUEL FILLER
From: JA000001 		$176.52 1
