Carbon Canister (2.0L Aj200P Hi Phev) ((V) Fromja000001)

Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol AJ200P] - Carbon Canister (2.0L AJ200P Hi PHEV) ((V) FROMJA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR009266 BOLT M6 X 24 $1.47 IN STOCK
Photo Part No Description Price (each) Stock
LR094032 CLIP - HOSE $4.41 To Order
Photo Part No Description Price (each) Stock
LR004596 CLIP $1.69 To Order
Photo Part No Description Price (each) Stock
RYH500310 NUT AND WASHER - HEX. $3.11 IN STOCK
Photo Part No Description Price (each) Stock
RYG500900 SCREW $4.21 To Order
Photo Part No Description Price (each) Stock
RYP501050 SCREW - PAN - TORX $1.47 To Order
Photo Part No Description Price (each) Stock
LR117394 VALVE - FUEL VAPOUR $261.26 To Order
Photo Part No Description Price (each) Stock
LR174757 VALVE - CONTROL $192.35 To Order
Photo Part No Description Price (each) Stock
LR068424 RESERVOIR - FUEL VAPOUR SYSTEM $382.26 To Order
LR155135 RESERVOIR - FUEL VAPOUR SYSTEM $373.26 To Order
Photo Part No Description Price (each) Stock
LR155089 BRACKET $11.02 To Order
Photo Part No Description Price (each) Stock
LR113590 TUBE - VENTILATION $96.00 To Order
Photo Part No Description Price (each) Stock
LR101028 TUBE - FUEL VAPOUR $51.42 To Order
LR173148 Tube - Fuel Vapour $49.17 To Order
Photo Part No Description Price (each) Stock
LR102055 MOUNTING - RUBBER $11.66 To Order
Photo Part No Description Price (each) Stock
LR060302 HOSE - FUEL $87.35 To Order
Photo Part No Description Price (each) Stock
LR037482 HOSE - FUEL VAPOUR $64.75 To Order
View All

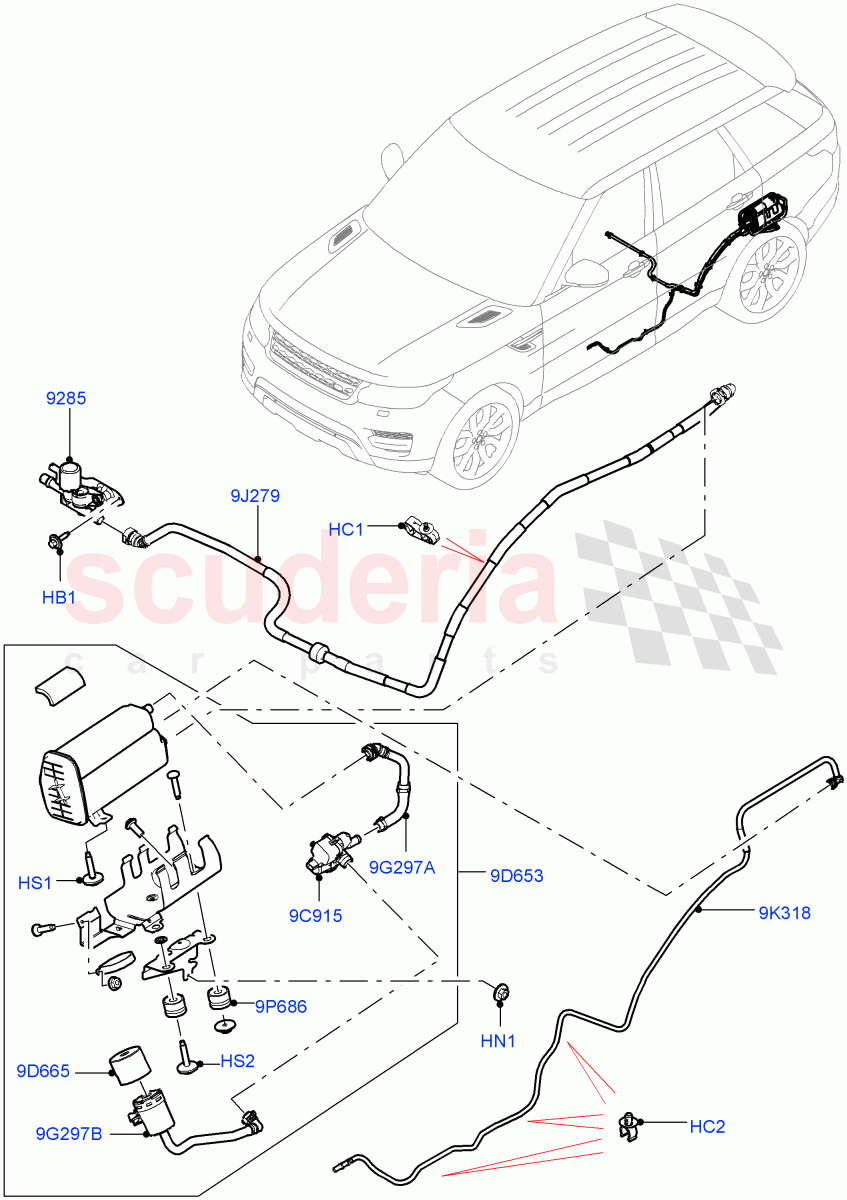

Carbon Canister (2.0L AJ200P Hi PHEV) ((V) FROMJA000001) of Land Rover Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR009266
BOLT M6 X 24
Bolt And Washer, Hexagonal Head, M6 X 24MM / From: JA000001
IN STOCK 		$1.47 2
HC1 LR094032
CLIP - HOSE
Plastic / From: JA000001 		$4.41 4
HC2 LR004596
CLIP
12 x 7.8X.8/4, Plastic / From: JA000001 		$1.69 3
HN1 RYH500310
NUT AND WASHER - HEX.
Hexagonal Head, M6, Nut And Washer / From: JA000001
IN STOCK 		$3.11 2
HS1 RYG500900
SCREW
Bolt And Washer, Hexagonal Head, M6X30, Screw And Washer / From: JA000001 		$4.21 1
HS2 RYP501050
SCREW - PAN - TORX
M6 X 25MM, Torx / From: JA000001 		$1.47 4
9C915 LR174757
VALVE - CONTROL
Pump - Diagnostic Monitoring Tank Leakage / From: JA000001 		$192.35 1
9D653 LR068424
RESERVOIR - FUEL VAPOUR SYSTEM
Charcoal Cannister, With Bracket / From: JA000001 / To: MA444815 		$382.26 1
9D653 LR155135
RESERVOIR - FUEL VAPOUR SYSTEM
Charcoal Cannister, With Bracket / From: MA444816 		$373.26 1
9D665 LR155089
BRACKET
From: MA444816 		$11.02 1
9G297A LR060302
HOSE - FUEL
Canister vent / From: JA000001 		$87.35 1
9G297B LR037482
HOSE - FUEL VAPOUR
Canister vent / From: JA000001 		$64.75 1
9J279 LR113590
TUBE - VENTILATION
From: JA000001 		$96.00 1
9K318 LR101028
TUBE - FUEL VAPOUR
Fuel Vapor Cannister Purge - Outlet / From: JA000001 / To: NA472637 		$51.42 1
9K318 LR173148
Tube - Fuel Vapour
Fuel Vapor Cannister Purge - Outlet / From: NA472638 		$49.17 1
9P686 LR102055
MOUNTING - RUBBER
From: JA000001 		$11.66 2
9285 LR117394
VALVE - FUEL VAPOUR
Assembly, Fuel Tank Isolation Valve / From: JA000001 		$261.26 1
