Fuel Lines (Front) (2.0L Aj200P Hi Phev, 2.0L I4 High Dohc Aj200 Petrol) ((V) Fromja000001)

Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol AJ200P] - Fuel Lines (Front) (2.0L AJ200P Hi PHEV, 2.0L I4 High DOHC AJ200 Petrol) ((V) FROMJA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR028253 BOLT $1.50 To Order
Photo Part No Description Price (each) Stock
LR071705 STUD $4.11 To Order
Photo Part No Description Price (each) Stock
LR040125 CLIP - FUEL PIPE SECURING $4.67 To Order
Photo Part No Description Price (each) Stock
LR086433 RETAINER - TUBE $6.54 To Order
Photo Part No Description Price (each) Stock
LR100585 PIPE - FUEL $306.14 To Order
Photo Part No Description Price (each) Stock
LR082760 BRACKET - FUEL TUBE SUPPORT $11.16 To Order
Photo Part No Description Price (each) Stock
LR101053 TUBE - FUEL SUPPLY AND VAPOUR $320.41 To Order
LR101054 TUBE - FUEL SUPPLY AND VAPOUR $294.72 To Order
Photo Part No Description Price (each) Stock
MTC7458 PAD - FOAM $35.57 To Order
Photo Part No Description Price (each) Stock
LR044464 PAD - FOAM $29.37 To Order
View All

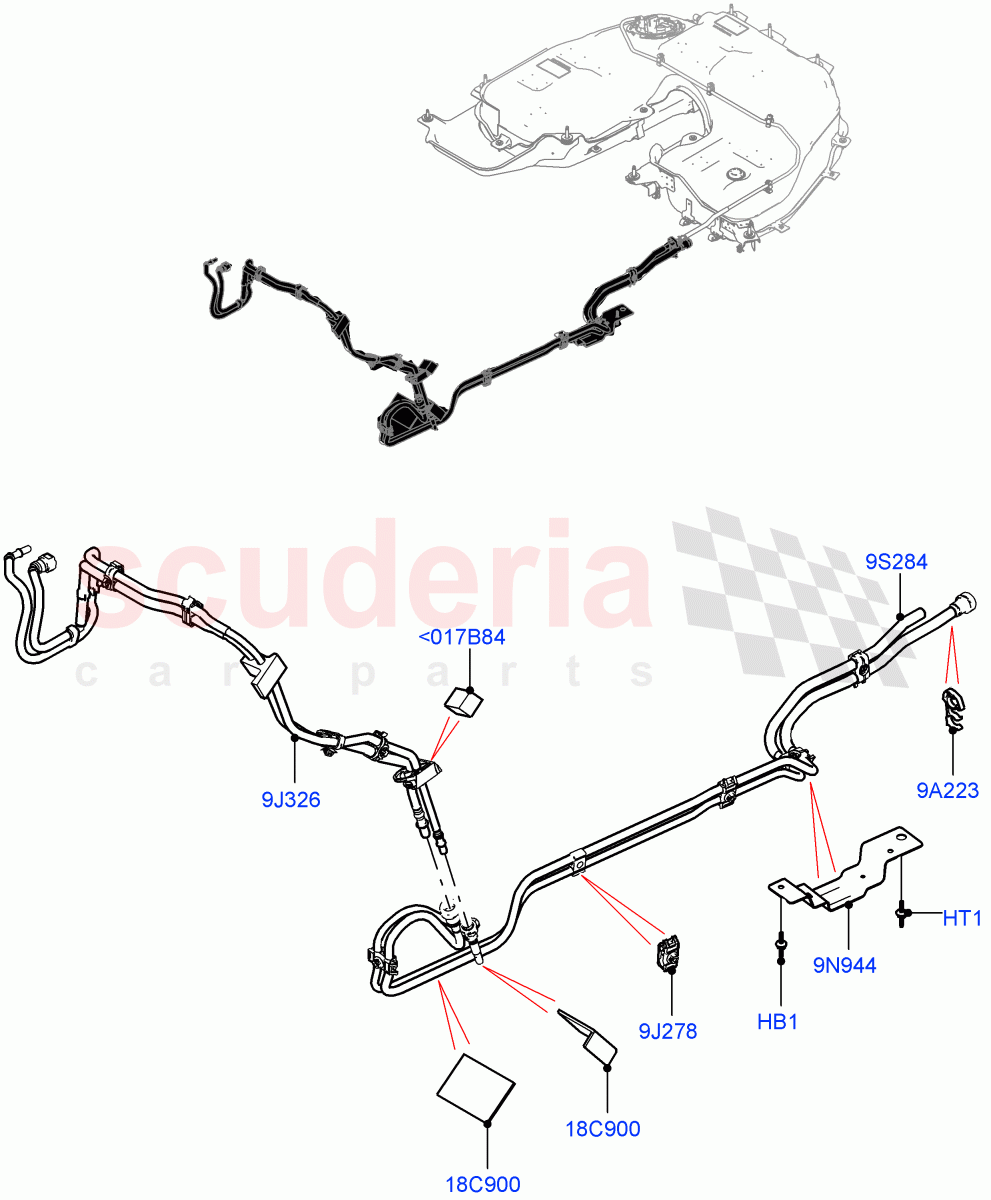

Fuel Lines (Front) (2.0L AJ200P Hi PHEV, 2.0L I4 High DOHC AJ200 Petrol) ((V) FROMJA000001) of Land Rover Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<017B84 LR044464
PAD - FOAM
From: JA000001 		$29.37 1
HB1 LR028253
BOLT
M6 X 16MM / From: JA000001 		$1.50 1
HT1 LR071705
STUD
M6 X 20 + M6 X 16 / From: JA000001 		$4.11 2
9A223 LR040125
CLIP - FUEL PIPE SECURING
From: JA000001 		$4.67 1
9J278 LR086433
RETAINER - TUBE
From: JA000001 		$6.54 5
9J326 LR100585
PIPE - FUEL
Front / From: JA000001 		$306.14 1
9N944 LR082760
BRACKET - FUEL TUBE SUPPORT
From: JA000001 		$11.16 1
9S284 LR101053
TUBE - FUEL SUPPLY AND VAPOUR
2.0L AJ200P Hi PHEV, Long Wheelbase / Centre / From: JA000001 		$320.41 1
9S284 LR101054
TUBE - FUEL SUPPLY AND VAPOUR
2.0L AJ200P Hi PHEV, Standard Wheelbase / Centre / From: JA000001 		$294.72 1
18C900 MTC7458
PAD - FOAM
From: JA000001 		$35.57 2
