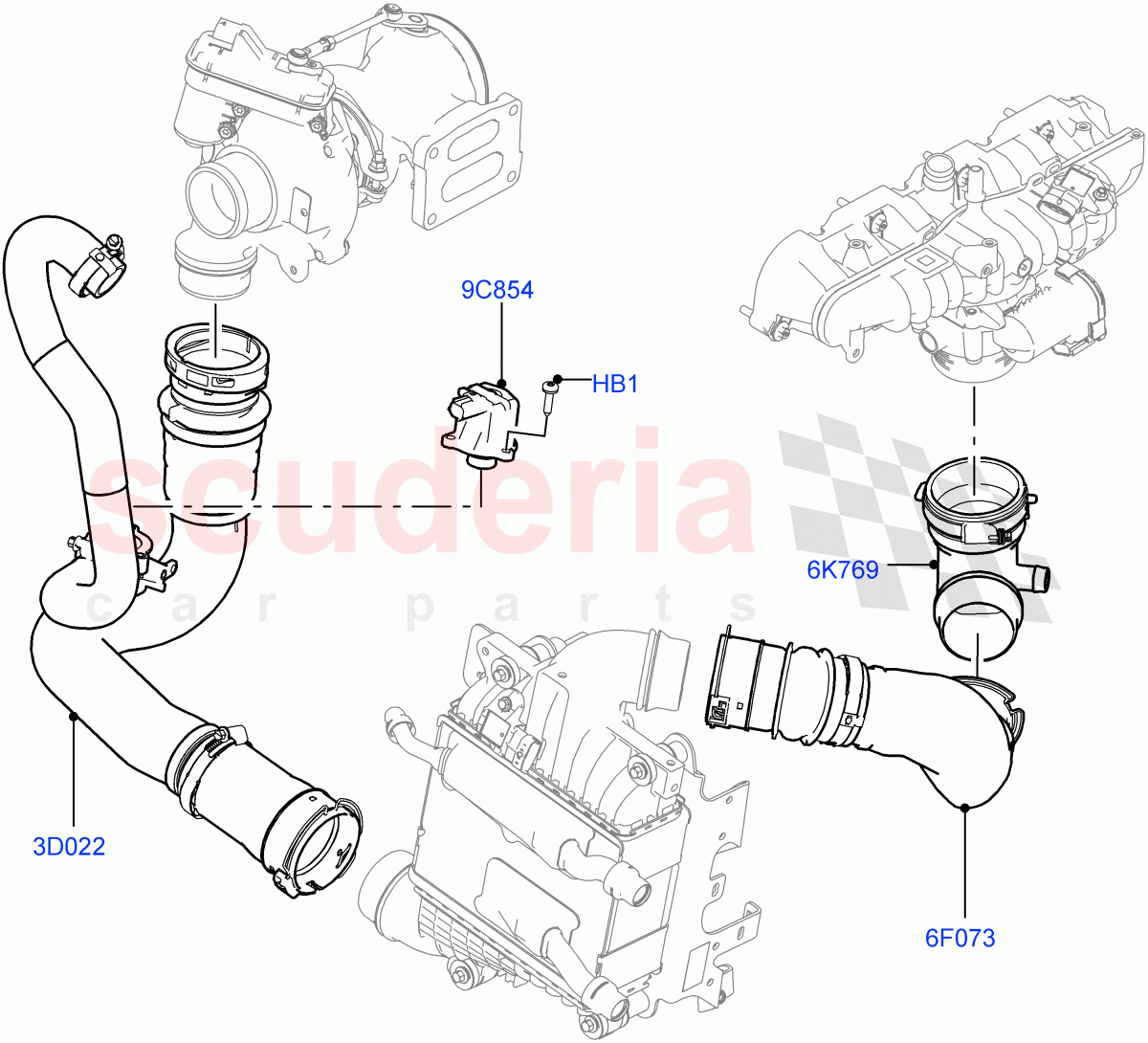

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR033002	BOLT AND WASHER - TORX HEAD	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092412	TUBE - OUTLET	$124.67	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093490	ACTUATOR - SUPERCHARGER BYPASS	$281.77	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR033002	BOLT AND WASHER - TORX HEAD	LR033002 BOLT AND WASHER - TORX HEAD M6 X 20.5, Torx / To: KA999999	$1.51	3
3D022	LR092417	TUBE - OUTLET	LR092417 TUBE - OUTLET To: JA732101	$231.17	1
3D022	LR110382	TUBE - OUTLET	LR110382 TUBE - OUTLET From: JA732102 / To: KA227497	$218.51	1
3D022	LR125133	TUBE - OUTLET	LR125133 TUBE - OUTLET From: KA227498 / To: KA999999	$209.93	1
6F073	LR092412	TUBE - OUTLET	LR092412 TUBE - OUTLET To: KA999999	$124.67	1
6K769	LR101172	TUBE - OUTLET	LR101172 TUBE - OUTLET To: JA764429	$101.55	1
6K769	LR116638	TUBE - OUTLET	LR116638 TUBE - OUTLET From: JA764430 / To: KA999999	$98.16	1
9C854	LR093490	ACTUATOR - SUPERCHARGER BYPASS	LR093490 ACTUATOR - SUPERCHARGER BYPASS To: KA999999	$281.77	1
