Name: Air Cleaner (2.0L I4 Mid DOHC AJ200 Petrol, 2.0L I4 High DOHC AJ200 Petrol) ((V) FROMLA000001, (V) TOLA999999)
Rating: 4.5 (1 reviews)

View All

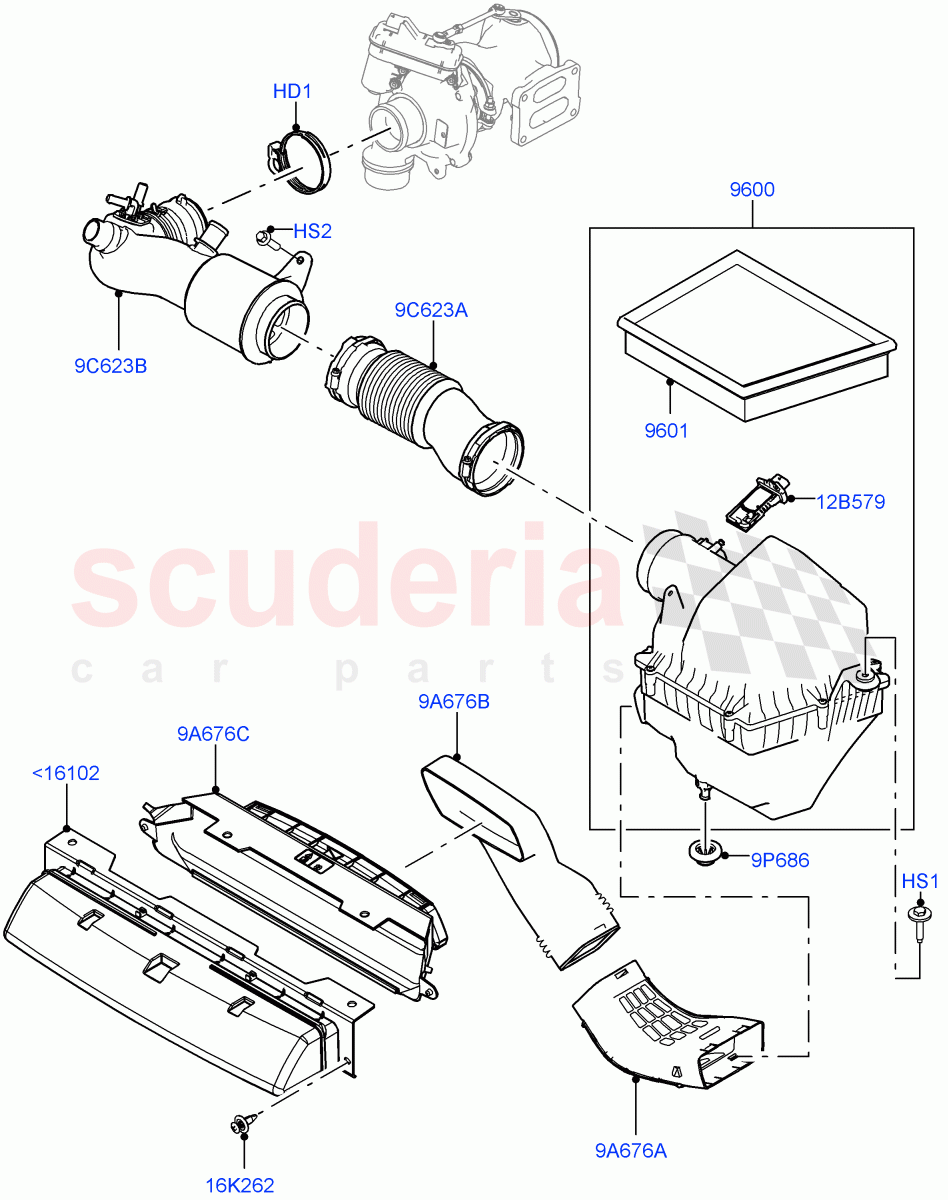

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR023503	CLAMP - HOSE	$21.90	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500900	SCREW	$4.20	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106256	SCREW	$0.43	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093972	CLEANER - AIR	$297.43	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092258	ELEMENT - AIR CLEANER	$60.11	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR000753	INSULATOR - AIR CLEANER HOUSING	$4.93	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR094005	DUCT - DIRTY AIR	$53.00	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093998	SENSOR - MASS AIR FLOW	$195.29	To Order

Photo	Part No	Description	Price (each)	Stock
	VPLGP0126	CLIP - SPECIAL	$2.95	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092336	DUCT - AIR INTAKE	$67.63	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092338	DUCT - AIR INTAKE	$50.85	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094006	DUCT - DIRTY AIR	$53.48	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092342	DUCT - AIR	$64.37	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126200	TUBE - OUTLET	$214.71	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<16102	LR094005	DUCT - DIRTY AIR	LR094005 DUCT - DIRTY AIR Dirty Air Duct / From: LA000001	$53.00	1
HD1	LR023503	CLAMP - HOSE	LR023503 CLAMP - HOSE 70MM / From: LA000001	$21.90	2
HS1	RYG500900	SCREW	RYG500900 SCREW Bolt And Washer, Hexagonal Head, M6X30 / From: LA000001	$4.20	1
HS2	FS106256	SCREW	FS106256 SCREW M6 x 25MM / From: LA000001	$0.43	1
9A676A	LR092336	DUCT - AIR INTAKE	LR092336 DUCT - AIR INTAKE Lower / From: LA000001	$67.63	1
9A676B	LR092338	DUCT - AIR INTAKE	LR092338 DUCT - AIR INTAKE LH Upper / From: LA000001	$50.85	1
9A676C	LR094006	DUCT - DIRTY AIR	LR094006 DUCT - DIRTY AIR Intake / From: LA000001	$53.48	1
9C623A	LR092342	DUCT - AIR	LR092342 DUCT - AIR Air Cleaner Outlet / From: LA000001	$64.37	1
9C623B	LR126200	TUBE - OUTLET	LR126200 TUBE - OUTLET Turbocharger Inlet / From: LA000001	$214.71	1
9P686	LR000753	INSULATOR - AIR CLEANER HOUSING IN STOCK	LR000753 INSULATOR - AIR CLEANER HOUSING Air Cleaner Box Holdown / From: LA000001 IN STOCK	$4.93	2
12B579	LR093998	SENSOR - MASS AIR FLOW	LR093998 SENSOR - MASS AIR FLOW Mass Air Flow Sensor / From: LA000001	$195.29	1
16K262	VPLGP0126	CLIP - SPECIAL	VPLGP0126 CLIP - SPECIAL From: LA000001	$2.95	2
9600	LR093972	CLEANER - AIR	LR093972 CLEANER - AIR From: LA000001	$297.43	1
9601	LR092258	ELEMENT - AIR CLEANER IN STOCK	LR092258 ELEMENT - AIR CLEANER From: LA000001 IN STOCK	$60.11	1

Air Cleaner (2.0L I4 Mid Dohc Aj200 Petrol, 2.0L I4 High Dohc Aj200 Petrol) ((V) Fromla000001, (V)...

Land Rover Range Rover Velar (2017+) [2.0 Turbo Petrol AJ200P]
