Exhaust Gas Recirculation (RH Side) (2.0L AJ21D4 Diesel Mid) ((V) FROMMA000001) of Land Rover Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel AJ21D4]

View All

Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel AJ21D4] - Exhaust Gas Recirculation (RH Side) (2.0L AJ21D4 Diesel Mid) ((V) FROMMA000001)

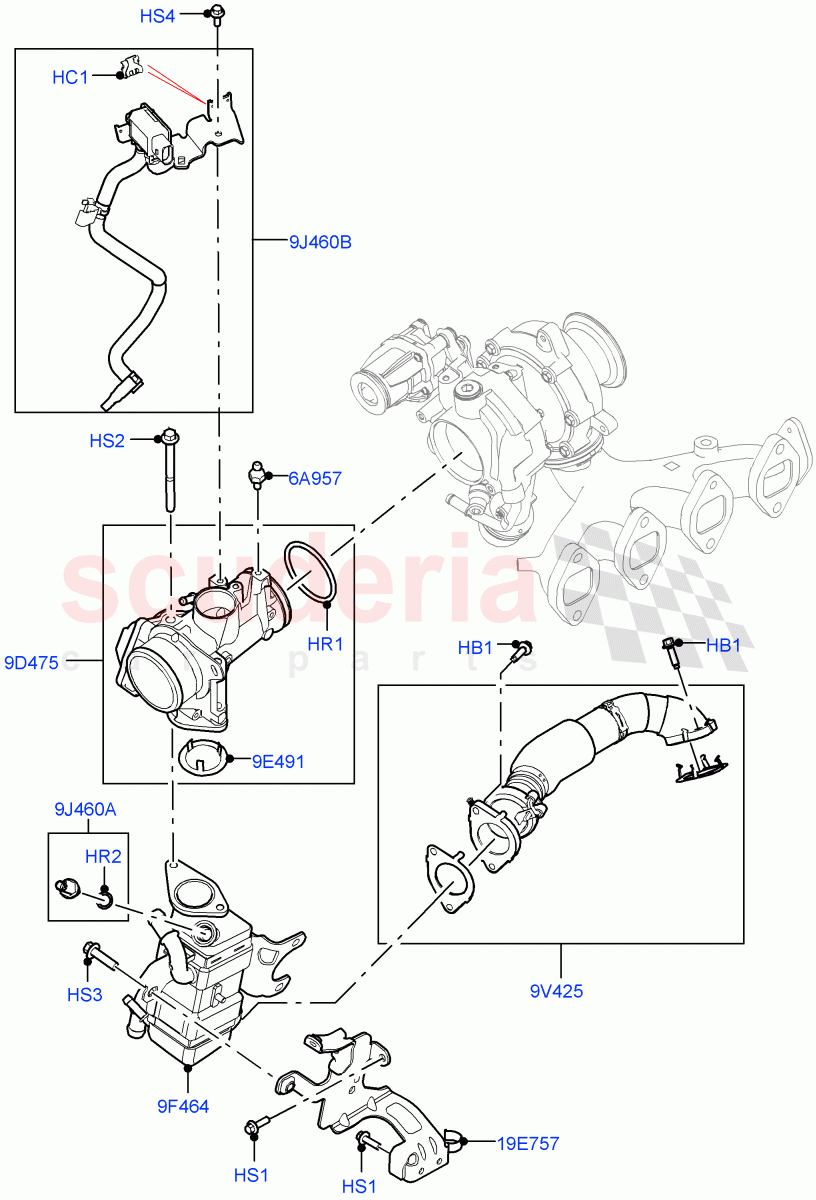

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR091557	BOLT	LR091557 BOLT EGR Tube, M6 X 25MM / From: MA000001	$3.02	4
HC1	LR126161	CLIP	LR126161 CLIP 8 X 2.75mm / From: MA000001	$1.42	2
HR1	LR083962	O-RING	LR083962 O-RING 60MM, EGR Valve / From: MA000001	$5.30	1
HR2	LR095785	O-RING IN STOCK	LR095785 O-RING 11.3 x 2.5MM, Temperature Sensor / From: MA000001 IN STOCK	$5.15	1
HS1	LR073655	SCREW IN STOCK	LR073655 SCREW Bracket, Hexagonal Head, M6 X 20MM / From: MA000001 IN STOCK	$1.58	3
HS2	LR073738	SCREW IN STOCK	LR073738 SCREW EGR Cooler To EGR Valve, M8 x 100MM / From: MA000001 IN STOCK	$3.81	2
HS3	LR073736	SCREW	LR073736 SCREW EGR Cooler, M8 X 30MM / From: MA000001	$1.70	1
HS4	LR073686	SCREW	LR073686 SCREW M6 X 16MM, Pressure Sensor / From: MA000001	$2.48	1
6A957	LR090553	STUD - SPECIAL	LR090553 STUD - SPECIAL Engine Cover / From: MA000001	$6.71	1
9D475	LR141349	THROTTLE BODY AND EGR VALVE	LR141349 THROTTLE BODY AND EGR VALVE From: MA000001	$538.31	1
9E491	LR139075	FILTER - EGR COOLER	LR139075 FILTER - EGR COOLER From: MA000001	$18.22	1
9F464	LR141334	COOLER - EGR	LR141334 COOLER - EGR EU6D - Final (Diesel) Emission / From: MA000001 / To: MA323781	$387.73	1
9F464	LR156344	COOLER - EGR	LR156344 COOLER - EGR Stage V Plus DPF / From: MA000001 / To: MA323781	$421.44	1
9F464	LR164408	COOLER - EGR	LR164408 COOLER - EGR EU6D - Final (Diesel) Emission / From: MA323782	$418.75	1
9F464	LR164413	COOLER - EGR	LR164413 COOLER - EGR Stage V Plus DPF / From: MA323782	$397.77	1
9J460A	LR075629	SENSOR - TEMPERATURE	LR075629 SENSOR - TEMPERATURE Temperature / From: MA000001	$47.78	1
9J460B	LR141448	SENSOR - EXHAUST GAS PRESSURE	LR141448 SENSOR - EXHAUST GAS PRESSURE Exhaust Gas Pressure / From: MA000001	$144.78	1
9V425	LR141166	TUBE - EGR COOLER	LR141166 TUBE - EGR COOLER EGR Cooler Inlet / From: MA000001	$136.43	1
19E757	LR141327	BRACKET - SUPPORT	LR141327 BRACKET - SUPPORT EGR Cooler / From: MA000001	$55.17	1
