Exhaust Gas Recirculation (Lh Side) (2.0L Aj21D4 Diesel Mid) ((V) Fromma000001)

Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel AJ21D4]

Find Your Part

Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel AJ21D4] - Exhaust Gas Recirculation (LH Side) (2.0L AJ21D4 Diesel Mid) ((V) FROMMA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR091557 BOLT $3.01 To Order
Photo Part No Description Price (each) Stock
LR095785 O-RING $5.12 IN STOCK
Photo Part No Description Price (each) Stock
LR073666 SCREW $1.42 To Order
Photo Part No Description Price (each) Stock
LR071774 SCREW $2.30 To Order
LR071774 SCREW $2.30 To Order
Photo Part No Description Price (each) Stock
LR073655 SCREW $1.60 IN STOCK
Photo Part No Description Price (each) Stock
LR141328 HOSE - VACUUM CONTROL HARNESS $160.54 To Order
Photo Part No Description Price (each) Stock
LR141331 EGR UNIT $1,134.48 To Order
LR156784 EGR UNIT $666.77 To Order
LR159416 EGR UNIT $853.14 To Order
Photo Part No Description Price (each) Stock
LR141335 TUBE - EXHAUST GAS RECIRCULATION $297.75 To Order
Photo Part No Description Price (each) Stock
LR148201 CONNECTOR - VACUUM TUBE $53.72 To Order
Photo Part No Description Price (each) Stock
LR075629 SENSOR - TEMPERATURE $48.04 To Order
Photo Part No Description Price (each) Stock
LR162966 SENSOR $80.32 To Order
View All

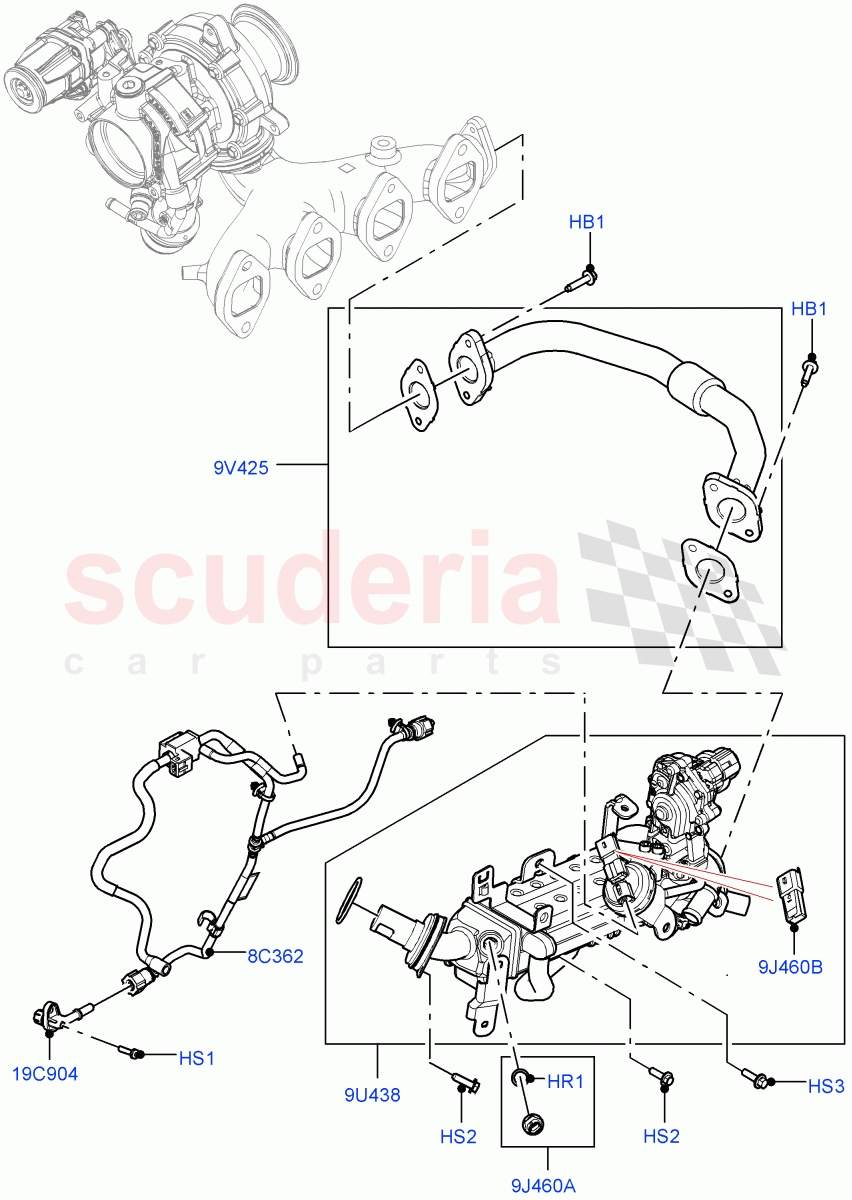

Exhaust Gas Recirculation (LH Side) (2.0L AJ21D4 Diesel Mid) ((V) FROMMA000001) of Land Rover Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel AJ21D4] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR091557
BOLT
Crossover, M6 X 25MM, Tube / From: MA000001 		$3.01 4
HR1 LR095785
O-RING
11.3 x 2.5MM, Temperature Sensor / From: MA000001
IN STOCK 		$5.12 1
HS1 LR073666
SCREW
M5 x 20MM, Vacuum Connector / From: MA000001 		$1.42 1
HS2 LR071774
SCREW
EGR Unit, Hexagonal Head, Lower, M6 X 20MM / From: MA000001 		$2.30 4
HS2 LR071774
SCREW
EGR Tube, Hexagonal Head, M6 X 20MM / From: MA000001 		$2.30 1
HS3 LR073655
SCREW
EGR Unit, Hexagonal Head, M6 X 20MM, Upper / From: MA000001
IN STOCK 		$1.60 1
8C362 LR141328
HOSE - VACUUM CONTROL HARNESS
Vacuum Control / From: MA000001 		$160.54 1
9J460A LR075629
SENSOR - TEMPERATURE
Temperature / From: MA000001 		$48.04 1
9J460B LR162966
SENSOR
EGR Unit / From: MA000001 		$80.32 1
9U438 LR141331
EGR UNIT
From: MA000001 / To: MA306621 		$1,134.48 1
9U438 LR156784
EGR UNIT
From: MA306622 / To: MA314921 		$666.77 1
9U438 LR159416
EGR UNIT
From: MA314922 		$853.14 1
9V425 LR141335
TUBE - EXHAUST GAS RECIRCULATION
Exhaust Manifold To EGR Cooler / From: MA000001 		$297.75 1
19C904 LR148201
CONNECTOR - VACUUM TUBE
Cylinder Block / From: MA000001 		$53.72 1
