Exhaust Fluid Injection System (Injector And Control Unit) (2.0L Aj21D4 Diesel Mid, With Diesel Exh...

Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel AJ21D4]

Find Your Part

Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel AJ21D4] - Exhaust Fluid Injection System (Injector and Control Unit) (2.0L AJ21D4 Diesel Mid, With Diesel Exh...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR067041 SCREW $1.24 To Order
Photo Part No Description Price (each) Stock
LR141230 CLIP $1.57 To Order
Photo Part No Description Price (each) Stock
LR108386 CLIP - PUSH ON STEEL $1.05 To Order
Photo Part No Description Price (each) Stock
LR036382 CLIP $0.59 To Order
Photo Part No Description Price (each) Stock
LR141100 CLAMP - TUBE $10.19 To Order
Photo Part No Description Price (each) Stock
LR067042 CLAMP - TUBE $3.69 To Order
Photo Part No Description Price (each) Stock
RYH500310 NUT AND WASHER - HEX. $3.10 IN STOCK
Photo Part No Description Price (each) Stock
FY106046 NUT - HEX. $0.68 IN STOCK
Photo Part No Description Price (each) Stock
LR139637 SCREW $1.96 To Order
Photo Part No Description Price (each) Stock
RYG500160 SCREW $0.63 To Order
Photo Part No Description Price (each) Stock
KYP500400 SCREW AND WASHER $0.61 To Order
Photo Part No Description Price (each) Stock
LR139668 CONTROL UNIT - AUXILIARY HEATER $136.70 To Order
Photo Part No Description Price (each) Stock
LR140905 HOSE - WATER $100.76 To Order
Photo Part No Description Price (each) Stock
LR149849 HOSE - WATER $118.03 To Order
LR158186 HOSE - WATER $101.50 To Order
LR165171 HOSE - WATER $113.37 To Order
Photo Part No Description Price (each) Stock
LR149839 HOSE - WATER $123.06 To Order
Photo Part No Description Price (each) Stock
LR141248 BRACKET - TUBE $44.48 To Order
Photo Part No Description Price (each) Stock
LR139412 BRACKET - MODULE $19.90 To Order
Photo Part No Description Price (each) Stock
LR141235 TUBE - DIESEL EXHAUST FLUID FEED $276.13 To Order
LR159951 TUBE - DIESEL EXHAUST FLUID FEED $268.60 To Order
Photo Part No Description Price (each) Stock
LR141233 TUBE - DIESEL EXHAUST FLUID FEED $134.96 To Order
Photo Part No Description Price (each) Stock
LR139640 INJECTOR - DIESEL EXHAUST FLUID $233.90 To Order
LR165903 INJECTOR - DIESEL EXHAUST FLUID $258.00 To Order
Photo Part No Description Price (each) Stock
LR141483 INJECTOR - DIESEL EXHAUST FLUID $233.90 To Order
View All

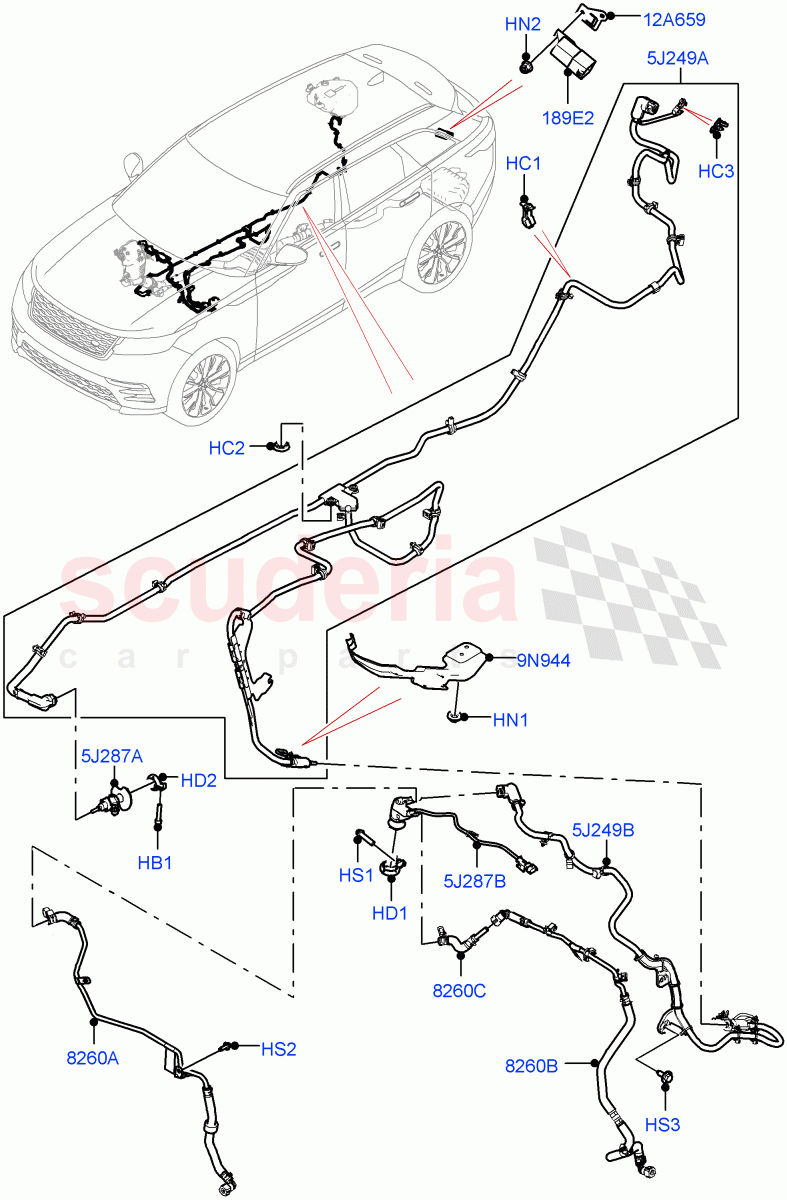

Exhaust Fluid Injection System (Injector and Control Unit) (2.0L AJ21D4 Diesel Mid, With Diesel Exh Fluid Emission Tank) ((V) FROMMA000001) of Land Rover Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel AJ21D4] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR067041
SCREW
Clamp, Lower, M5 x 25 / From: MA000001 		$1.24 1
HC1 LR141230
CLIP
To Body / From: MA000001 		$1.57 1
HC2 LR108386
CLIP - PUSH ON STEEL
M6, Y-shape Connector / From: MA000001 		$1.05 2
HC3 LR036382
CLIP
6.5 x 5MM, Wiring Connector / From: MA000001 		$0.59 1
HD1 LR141100
CLAMP - TUBE
Includes Screw, Injector, Upper / From: MA000001 		$10.19 1
HD2 LR067042
CLAMP - TUBE
Injector, Lower, 		$3.69 1
HN1 RYH500310
NUT AND WASHER - HEX.
Hexagonal Head, M6, Nut And Washer, Support Bracket / From: MA000001
IN STOCK 		$3.10 2
HN2 FY106046
NUT - HEX.
Hexagonal Head, M6 / From: MA000001
IN STOCK 		$0.68 1
HS1 LR139637
SCREW
Clamp, Upper / From: MA000001 		$1.96 1
HS2 RYG500160
SCREW
Hexagonal Head, Hose, Injector Cooling Feed, M6 X 14MM / From: MA000001 		$0.63 2
HS3 KYP500400
SCREW AND WASHER
Hexagonal Head, Hose, M6 X 16MM, To Transmission / From: MA000001 		$0.61 2
5J249A LR141235
TUBE - DIESEL EXHAUST FLUID FEED
Tank To Lower Injector / From: MA000001 / To: MA314921 		$276.13 1
5J249A LR159951
TUBE - DIESEL EXHAUST FLUID FEED
Tank To Lower Injector / From: MA314922 		$268.60 1
5J249B LR141233
TUBE - DIESEL EXHAUST FLUID FEED
To Upper Injector / From: MA000001 		$134.96 1
5J287A LR139640
INJECTOR - DIESEL EXHAUST FLUID
Lower / From: MA000001 / To: MA326595 		$233.90 1
5J287A LR165903
INJECTOR - DIESEL EXHAUST FLUID
Lower / From: MA326596 		$258.00 1
5J287B LR141483
INJECTOR - DIESEL EXHAUST FLUID
Upper, Water Cooled / From: MA000001 		$233.90 1
9N944 LR141248
BRACKET - TUBE
Tube Support / From: MA000001 		$44.48 1
12A659 LR139412
BRACKET - MODULE
From: MA000001 		$19.90 1
189E2 LR139668
CONTROL UNIT - AUXILIARY HEATER
Diesel Exhaust Fluid / From: MA000001 		$136.70 1
8260A LR140905
HOSE - WATER
Injector Cooling Feed / From: MA000001 		$100.76 1
8260B LR149849
HOSE - WATER
Injector Cooling Return / From: MA000001 / To: MA315690 		$118.03 1
8260B LR158186
HOSE - WATER
Injector Cooling Return / From: MA315691 / To: MA325168 		$101.50 1
8260B LR165171
HOSE - WATER
Injector Cooling Return / From: MA325169 		$113.37 1
8260C LR149839
HOSE - WATER
Connector, Injector Cooling Return / From: MA000001 		$123.06 1
