Front Suspension Struts And Springs ((V) Fromaa000001)

Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI SC V8 Petrol]

Find Your Part

Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI SC V8 Petrol] - Front Suspension Struts And Springs ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR014904 CLIP - WIRING ( NON HAZ) $2.40 To Order
Photo Part No Description Price (each) Stock
LR015001 CLIP $1.11 To Order
Photo Part No Description Price (each) Stock
FY114047 NUT (NON HAZ) $3.03 IN STOCK
Photo Part No Description Price (each) Stock
FY110056 NUT $4.27 IN STOCK
Photo Part No Description Price (each) Stock
RNS000041 PLATE (NON HAZ) $7.24 IN STOCK
RNS500040 WASHER - DAMPER LOCKING (NON HAZ) $7.56 To Order
Photo Part No Description Price (each) Stock
LR015002 WASHER (NON HAZ) $15.54 To Order
RNS500010 WASHER - DAMPER LOCKING (NON HAZ) $4.44 IN STOCK
Photo Part No Description Price (each) Stock
LR014955 SPACER $30.06 To Order
Photo Part No Description Price (each) Stock
LR018172 SPRING - SUSPENSION - FRONT (NON HAZ) $817.98 To Order
LR016421 SPRING - SUSPENSION - FRONT (NON HAZ) $797.82 To Order
LR016403 SPRING - SUSPENSION - FRONT (NON HAZ) $817.65 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR016412 KIT (NON HAZ) $34.25 IN STOCK
LR018171 KIT - DAMPER SEALS (NON HAZ) $41.09 To Order
Photo Part No Description Price (each) Stock
RBG500010 KIT - BOOT (NON HAZ) $155.98 IN STOCK
Photo Part No Description Price (each) Stock
RPC500080 DAMPER (NON HAZ) $34.97 To Order
Photo Part No Description Price (each) Stock
LR018192 KIT - ELECTRICAL PARTS ( NON HAZ) $134.76 To Order
Photo Part No Description Price (each) Stock
LR018190 SHOCK ABSORBER - FRONT $1,256.44 To Order
LR018191 SHOCK ABSORBER - FRONT $1,256.44 To Order
LR019993 SHOCK ABSORBER - FRONT ( NON HAZ) $1,356.97 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR016416 DAMPER (HAZ) $1,011.20 To Order
LR016414 DAMPER ( NON HAZ) $877.74 To Order
LR016415 SHOCK ABSORBER - FRONT (NON HAZ) $1,011.20 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR015408 DAMPER $1,079.96 To Order
LR018376 DAMPER $1,565.76 To Order
Photo Part No Description Price (each) Stock
LR016428 DAMPER (NON HAZ) $707.11 To Order
LR016427 DAMPER (NON HAZ) $748.25 To Order
LR016426 DAMPER (NON HAZ) $700.83 To Order
View All

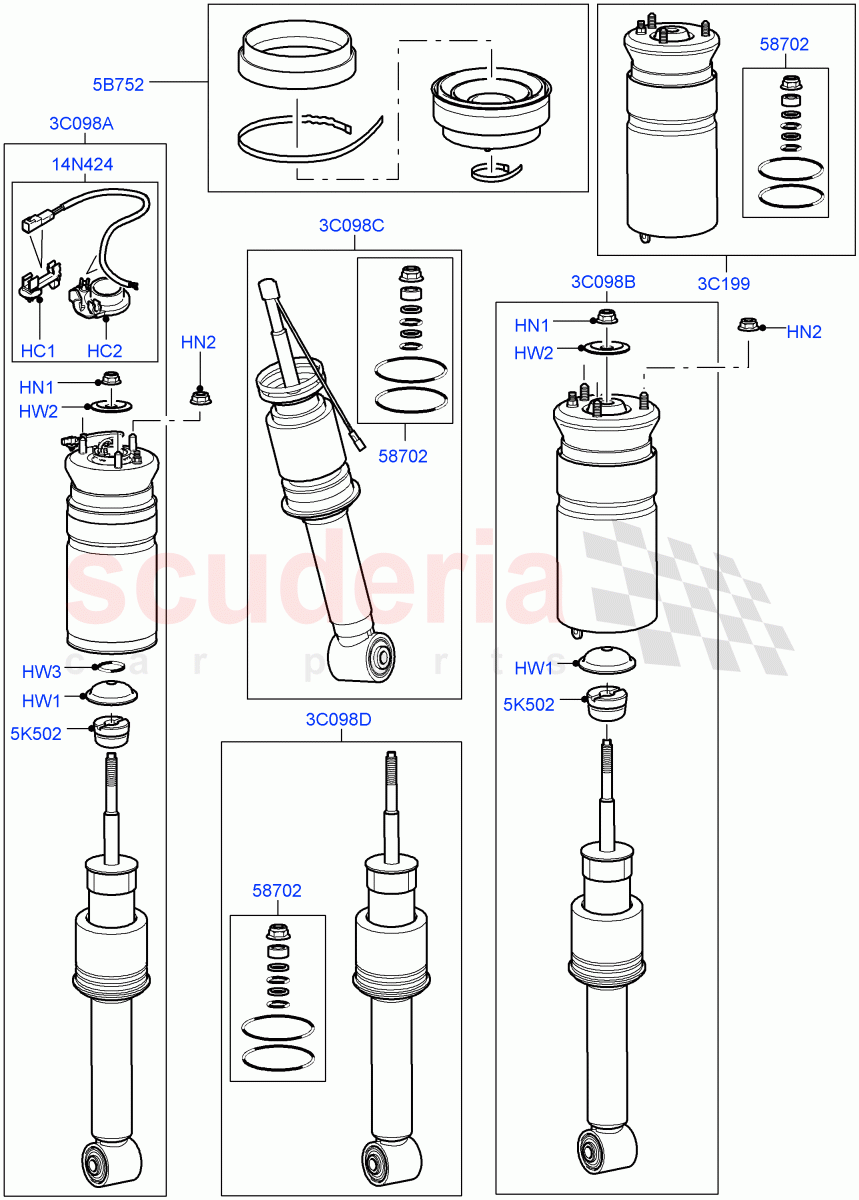

Front Suspension Struts And Springs ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI SC V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 LR014904
CLIP - WIRING ( NON HAZ)
With Continuous Variable Damping / Connector / From: AA000001 		$2.40 2
HC2 LR015001
CLIP
With Continuous Variable Damping / Shock Absorber / From: AA000001 		$1.11 2
HN1 FY114047
NUT (NON HAZ)
M14 / From: AA000001
IN STOCK 		$3.03 2
HN2 FY110056
NUT
M10 / From: AA000001
IN STOCK 		$4.27 6
HW1 RNS000041
PLATE (NON HAZ)
5.0L OHC SGDI SC V8 Petrol - AJ133 / Bump Washer / From: AA000001
IN STOCK 		$7.24 2
HW1 RNS500040
WASHER - DAMPER LOCKING (NON HAZ)
3.6L V8 32V DOHC EFi Diesel Lion / Bump Washer / From: AA000001 / To: AA999999 		$7.56 2
HW2 LR015002
WASHER (NON HAZ)
With Continuous Variable Damping / Shock Absorber / From: AA000001 		$15.54 2
HW2 RNS500010
WASHER - DAMPER LOCKING (NON HAZ)
Less Adaptive Damping /
IN STOCK 		$4.44 2
HW3 LR014955
SPACER
With Continuous Variable Damping / Shock Absorber / From: AA000001 		$30.06 2
3C098A LR018190
SHOCK ABSORBER - FRONT
5.0L OHC SGDI SC V8 Petrol - AJ133, With Continuous Variable Damping / Complete Assembly / From: AA000001 / To: AA216111 		$1,256.44 2
3C098A LR018191
SHOCK ABSORBER - FRONT
5.0L OHC SGDI NA V8 Petrol - AJ133, With Continuous Variable Damping / Complete Assembly / From: AA000001 / To: AA216111 		$1,256.44 2
3C098A LR019993
SHOCK ABSORBER - FRONT ( NON HAZ)
5.0L OHC SGDI SC V8 Petrol - AJ133, With Continuous Variable Damping / Complete Assembly / From: AA216112 / To: CA726369 		$1,356.97 2
3C098A LR019994
SHOCK ABSORBER - FRONT
5.0L OHC SGDI NA V8 Petrol - AJ133, With Continuous Variable Damping / Complete Assembly / From: AA216112 / To: CA726369 		$1,356.97 2
3C098A LR032647
SHOCK ABSORBER - FRONT (NON HAZ)
5.0L OHC SGDI SC V8 Petrol - AJ133, With Continuous Variable Damping / Complete Assembly / From: CA726370 / To: DA814271 		$1,272.99 2
3C098A LR032648
SHOCK ABSORBER - FRONT (NON HAZ)
3.0L 24V DOHC V6 TC Diesel, With Continuous Variable Damping / Complete Assembly / From: CA726370 / To: DA814271 		$1,356.97 2
3C098A LR052866
SHOCK ABSORBER - FRONT
5.0L OHC SGDI SC V8 Petrol - AJ133, With Continuous Variable Damping / Complete Assembly / From: DA814272 		$1,468.36 2
3C098A LR052867
SHOCK ABSORBER - FRONT
3.0L 24V DOHC V6 TC Diesel, With Continuous Variable Damping / From: DA814272 		$1,632.65 2
3C098B LR016416
DAMPER (HAZ)
3.6L V8 32V DOHC EFi Diesel Lion, Less Adaptive Damping, With ACE Suspension, With Roll Stability Control / Complete Assembly / From: AA000001 / To: AA999999 		$1,011.20 2
3C098B LR016414
DAMPER ( NON HAZ)
Less ACE Suspension, Less Adaptive Damping, Less Roll Stability Control / Complete Assembly / From: AA000001 / To: CA758725 		$877.74 2
3C098B LR016415
SHOCK ABSORBER - FRONT (NON HAZ)
3.0L 24V DOHC V6 TC Diesel, Less Adaptive Damping, With ACE Suspension, With Roll Stability Control / Complete Module Assy / From: AA000001 		$1,011.20 2
3C098B LR041108
MACPHERSON STRUT (NON HAZ)
Less ACE Suspension, Less Adaptive Damping, Less Roll Stability Control / Complete Assembly / From: CA758726 		$1,011.20 2
3C098C LR015408
DAMPER
3.6L V8 32V DOHC EFi Diesel Lion, With Continuous Variable Damping / Includes Seal, Service Kit / From: AA000001 		$1,079.96 2
3C098C LR018376
DAMPER
5.0L OHC SGDI SC V8 Petrol - AJ133, With Continuous Variable Damping / Includes Seal, Service Kit / From: AA000001 		$1,565.76 2
3C098D LR016428
DAMPER (NON HAZ)
3.6L V8 32V DOHC EFi Diesel Lion, Less Adaptive Damping, With ACE Suspension, With Roll Stability Control / Includes Seal, Service Kit / From: AA000001 / To: AA999999 		$707.11 2
3C098D LR016427
DAMPER (NON HAZ)
3.0L 24V DOHC V6 TC Diesel, Less Adaptive Damping, With ACE Suspension, With Roll Stability Control / Includes Seal, Service Kit / From: AA000001 		$748.25 2
3C098D LR016426
DAMPER (NON HAZ)
Less ACE Suspension, Less Adaptive Damping, Less Roll Stability Control / Includes Seal, Service Kit / From: AA000001 		$700.83 2
3C199 LR018172
SPRING - SUSPENSION - FRONT (NON HAZ)
5.0L OHC SGDI SC V8 Petrol - AJ133, With Continuous Variable Damping / Service Kit / From: AA000001 		$817.98 2
3C199 LR016421
SPRING - SUSPENSION - FRONT (NON HAZ)
3.6L V8 32V DOHC EFi Diesel Lion, Less Adaptive Damping / Service Kit / From: AA000001 / To: AA900001 		$797.82 2
3C199 LR016403
SPRING - SUSPENSION - FRONT (NON HAZ)
5.0L OHC SGDI NA V8 Petrol - AJ133 / Service Kit / From: AA000001 		$817.65 2
3C199 LR058043
SPRING - SUSPENSION - FRONT
3.6L V8 32V DOHC EFi Diesel Lion, Less Adaptive Damping / Service Kit / From: AA900002 / To: AA999999 		$819.01 2
5B752 RBG500010
KIT - BOOT (NON HAZ)
From: AA000001
IN STOCK 		$155.98 2
5K502 RPC500080
DAMPER (NON HAZ)
From: AA000001 		$34.97 2
14N424 LR018192
KIT - ELECTRICAL PARTS ( NON HAZ)
With Continuous Variable Damping / From: AA000001 		$134.76 2
58702 LR016412
KIT (NON HAZ)
Less Adaptive Damping / Includes O-Rings, Spacers And A Nut / From: AA000001
IN STOCK 		$34.25 2
58702 LR018171
KIT - DAMPER SEALS (NON HAZ)
With Continuous Variable Damping / Includes O-Rings, Spacers And A Nut / From: AA000001 		$41.09 2
