Name: Front Susp.Arms/Stabilizer/X-Member (Front Stabilizer Bar And Suspension Links) ((V) FROMAA000001)
Rating: 5.0 (1 reviews)

Front Susp.Arms/Stabilizer/X-Member (Front Stabilizer Bar And Suspension Links) ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI SC V8 Petrol]

View All

Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI SC V8 Petrol] - Front Susp.Arms/Stabilizer/X-Member (Front Stabilizer Bar And Suspension Links) ((V) FROMAA000001)

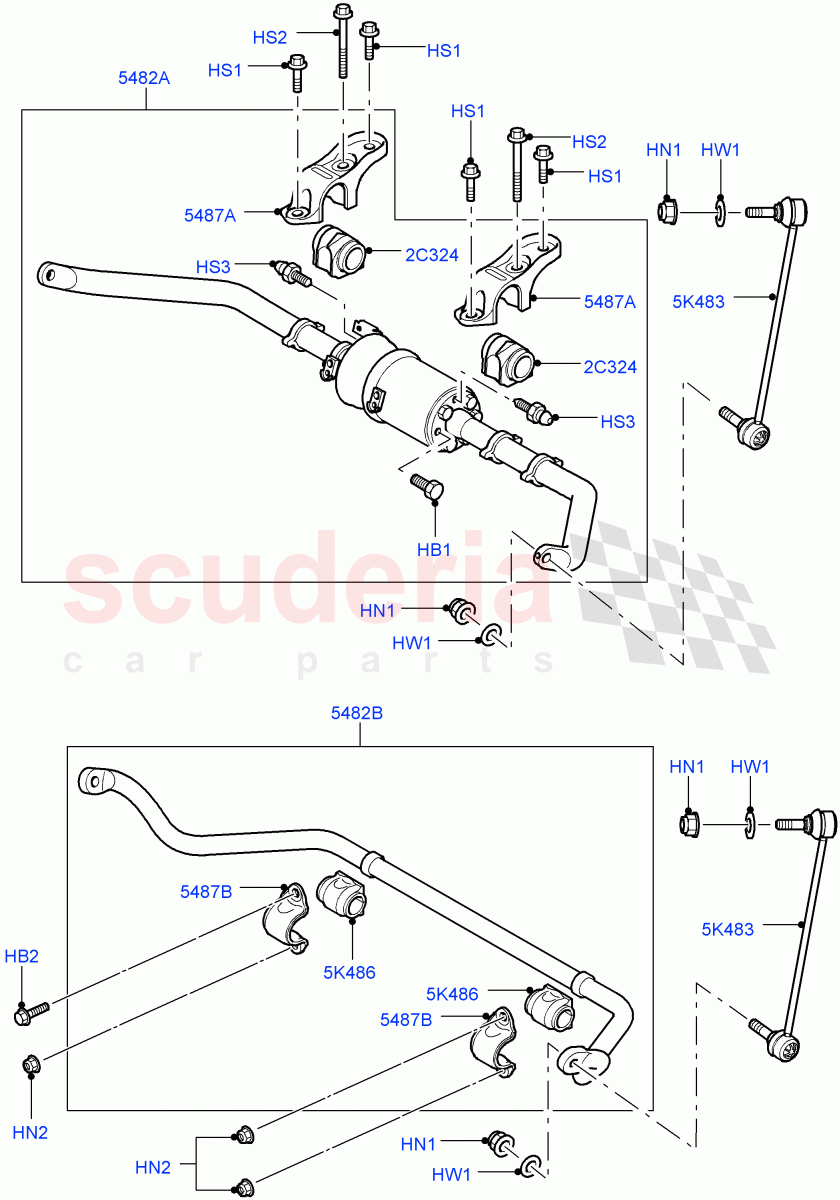

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYG500090	BOLT (NON HAZ)	$2.66	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP501080	BOLT	$1.41	To Order

Photo	Part No	Description	Price (each)	Stock
	FY114056	NUT - HEX.	$1.25	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FX112056	NUT - HEX.	$1.31	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP501120	SCREW	$6.21	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP501110	SCREW	$7.06	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP500030	SCREW (NON HAZ)	$3.53	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYF500120	WASHER	$1.74	To Order

Photo	Part No	Description	Price (each)	Stock
	RVU500011	BUSH - STABILIZER BAR LINK (NON HAZ)	$33.12	To Order

Photo	Part No	Description	Price (each)	Stock
	LR018378	ACTUATOR	$2,443.98	To Order
	LR019933	BAR - FRONT STABILIZER	$2,109.66	To Order
	LR020592	ACTUATOR	$2,689.31	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR017423	BAR - ROLL	$348.04	To Order

Photo	Part No	Description	Price (each)	Stock
	RBU500042	BRACKET - STABILIZER BAR	$39.31	To Order
	LR031369	BRACKET - STABILIZER BAR	$46.73	To Order

Photo	Part No	Description	Price (each)	Stock
	RBU500100	CLAMP - RUBBER BUSH	$56.64	To Order

Photo	Part No	Description	Price (each)	Stock
	RBM500150	LINK	$54.31	To Order
	RBM500140	LINK	$54.31	To Order

Photo	Part No	Description	Price (each)	Stock
	LR018347	SPACER	$19.74	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	RYG500090	BOLT (NON HAZ)	RYG500090 BOLT (NON HAZ) With ACE Suspension, With Roll Stability Control / HEX Flange, M12 / From: AA000001	$2.66	12
HB2	RYP501080	BOLT	RYP501080 BOLT Less ACE Suspension, Less Roll Stability Control / M12 x 25MM / From: AA000001	$1.41	1
HN1	FY114056	NUT - HEX. IN STOCK	FY114056 NUT - HEX. Hexagonal Head, M14 / From: AA000001 IN STOCK	$1.25	4
HN2	FX112056	NUT - HEX.	FX112056 NUT - HEX. HEX Flange, M12 / From: AA000001	$1.31	3
HS1	RYP501120	SCREW	RYP501120 SCREW With ACE Suspension, With Roll Stability Control / HEX Flange, M12 x 40MM / From: AA000001	$6.21	4
HS2	RYP501110	SCREW	RYP501110 SCREW With ACE Suspension, With Roll Stability Control / HEX Flange, M12 x 85MM / From: AA000001	$7.06	2
HS3	RYP500030	SCREW (NON HAZ) IN STOCK	RYP500030 SCREW (NON HAZ) With ACE Suspension, With Roll Stability Control / Bleeder Screw / From: AA000001 IN STOCK	$3.53	2
HW1	RYF500120	WASHER	RYF500120 WASHER 14.2 X 24 X 2.3 / From: AA000001	$1.74	4
2C324	RVU500011	BUSH - STABILIZER BAR LINK (NON HAZ)	RVU500011 BUSH - STABILIZER BAR LINK (NON HAZ) With ACE Suspension, With Roll Stability Control / Front stabilizer / From: AA000001	$33.12	2
5K483	RBM500150	LINK	RBM500150 LINK LH / From: AA000001	$54.31	1
5K483	RBM500140	LINK	RBM500140 LINK RH / From: AA000001	$54.31	1
5K486	LR018347	SPACER	LR018347 SPACER Less ACE Suspension, Less Roll Stability Control / From: AA000001	$19.74	2
5482A	LR018378	ACTUATOR	LR018378 ACTUATOR With ACE Suspension, With Roll Stability Control / New Part-Please Check For Reman Version / From: AA000001 / To: AA229469	$2,443.98	1
5482A	LR019933	BAR - FRONT STABILIZER	LR019933 BAR - FRONT STABILIZER With ACE Suspension, With Roll Stability Control / From: AA229470 / To: AA258697	$2,109.66	1
5482A	LR020592	ACTUATOR	LR020592 ACTUATOR With ACE Suspension, With Roll Stability Control / Remanufactured Part / From: AA000001 / To: AA229469	$2,689.31	1
5482A	LR024069	BAR - FRONT STABILIZER	LR024069 BAR - FRONT STABILIZER With ACE Suspension, With Roll Stability Control / From: AA258698 / To: CA731503	$3,061.31	1
5482A	LR032959	BAR - FRONT STABILIZER (NON HAZ)	LR032959 BAR - FRONT STABILIZER (NON HAZ) With ACE Suspension, With Roll Stability Control / From: CA731504	$2,912.39	1
5482B	LR017423	BAR - ROLL	LR017423 BAR - ROLL Less ACE Suspension, Less Roll Stability Control / From: AA000001	$348.04	1
5487A	RBU500042	BRACKET - STABILIZER BAR	RBU500042 BRACKET - STABILIZER BAR With ACE Suspension, With Roll Stability Control / From: AA000001 / To: AA999999	$39.31	2
5487A	LR031369	BRACKET - STABILIZER BAR	LR031369 BRACKET - STABILIZER BAR With ACE Suspension, With Roll Stability Control / From: BA000001	$46.73	2
5487B	RBU500100	CLAMP - RUBBER BUSH	RBU500100 CLAMP - RUBBER BUSH Less ACE Suspension, Less Roll Stability Control / Front stabilizer / From: AA000001	$56.64	2

Front Susp.arms/Stabilizer/X-Member (Front Stabilizer Bar And Suspension Links) ((V) Fromaa000001)
