Rear Axle ((V) Fromaa000001)

Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI NA V8 Petrol]

Find Your Part

Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI NA V8 Petrol] - Rear Axle ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
KYG000240 BOLT $10.05 To Order
Photo Part No Description Price (each) Stock
KYG500020 BOLT $5.35 To Order
Photo Part No Description Price (each) Stock
FY114056 NUT - HEX. $1.25 IN STOCK
Photo Part No Description Price (each) Stock
TYP500130 SCREW $2.68 To Order
Photo Part No Description Price (each) Stock
TYG500210 SCREW $4.90 To Order
Photo Part No Description Price (each) Stock
LR158113 SEAL - OIL $22.85 To Order
Photo Part No Description Price (each) Stock
LR017317 DIFFERENTIAL - REAR $2,380.64 To Order
LR017322 DIFFERENTIAL - REAR $4,166.07 To Order
LR017328 DIFFERENTIAL - REAR $2,547.92 To Order
...and 13 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
TYB500110 PLUG - OIL DRAIN $4.55 To Order
Photo Part No Description Price (each) Stock
LR032711 MOTOR - REAR DIFFERENTIAL $621.35 To Order
Photo Part No Description Price (each) Stock
LR016594 ABSORBER - AXLE $64.56 To Order
Photo Part No Description Price (each) Stock
TYB500060 PLUG - FILLER $3.53 To Order
Photo Part No Description Price (each) Stock
NSC500590 SENSOR - TRANS. FLUID TEMP. - TFT $66.65 IN STOCK
Photo Part No Description Price (each) Stock
KQB000133 INSULATOR - DIFFERENTIAL $133.73 To Order
Photo Part No Description Price (each) Stock
LR017424 BUSH $229.27 To Order
Photo Part No Description Price (each) Stock
LR174475 SEAL - OIL $21.71 To Order
Photo Part No Description Price (each) Stock
TVK500200 HOUSING - DIFF. LOCK SHIFT $1,635.15 To Order
LR011036 HOUSING - DIFF. LOCK SHIFT $436.87 To Order
Photo Part No Description Price (each) Stock
LR041063 HOUSING-DIFFERENTIAL LOCKING MOTOR $552.31 To Order
View All

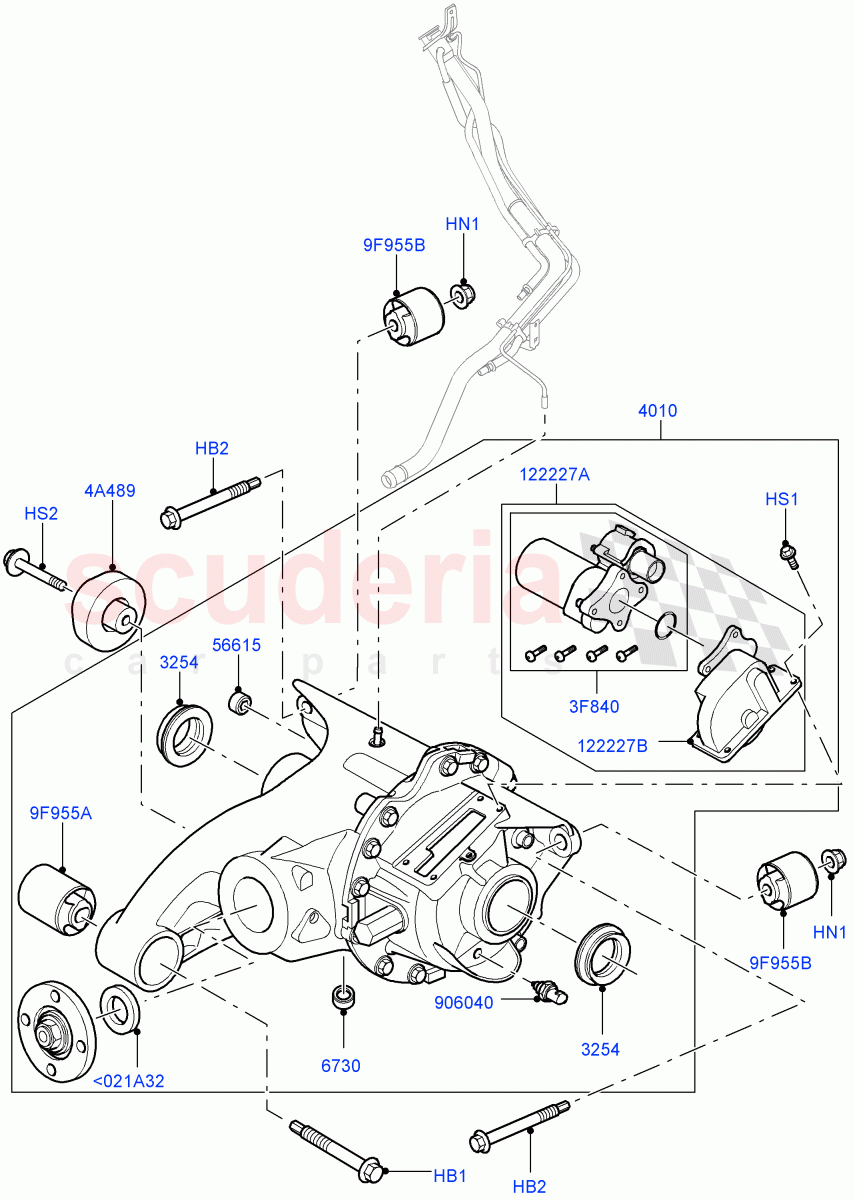

Rear Axle ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI NA V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<021A32 LR174475
SEAL - OIL
Pinion Seal kit, Please See Service Bulletin No. LTB00178 For Repair Procedure / From: AA000001 		$21.71 1
HB1 KYG000240
BOLT
M16 X 120MM / From: AA000001 		$10.05 1
HB2 KYG500020
BOLT
M14 x 120 / From: AA000001 		$5.35 2
HN1 FY114056
NUT - HEX.
Hexagonal Head, M14 / From: AA000001
IN STOCK 		$1.25 2
HS1 TYP500130
SCREW
M6 x 1.00 x 16.0 / From: AA000001 		$2.68 4
HS2 TYG500210
SCREW
3.0L 24V DOHC V6 TC Diesel / Damper, M12 x 90MM / From: AA000001 		$4.90 1
3F840 LR032711
MOTOR - REAR DIFFERENTIAL
Rear Axle Locking Differential / Service Kit - Motor, Fixing And O-ring / From: AA000001 		$621.35 1
4A489 LR016594
ABSORBER - AXLE
3.0L 24V DOHC V6 TC Diesel / Damper, Differential / From: AA000001 		$64.56 1
9F955A KQB000133
INSULATOR - DIFFERENTIAL
From: AA000001 		$133.73 1
9F955B LR017424
BUSH
Differential, Rear / From: AA000001 		$229.27 2
3254 LR158113
SEAL - OIL
Driveshaft / From: AA000001 		$22.85 2
4010 LR017317
DIFFERENTIAL - REAR
3.6L V8 32V DOHC EFi Diesel Lion, 6 Speed Auto ZF 6HP26 Steptronic, Rear Axle Open Style Differential / From: AA000001 / To: AA999999 		$2,380.64 1
4010 LR017322
DIFFERENTIAL - REAR
3.6L V8 32V DOHC EFi Diesel Lion, 6 Speed Auto ZF 6HP26 Steptronic, Rear Axle Locking Differential / New Part-Please Check For Reman Version / From: AA000001 / To: AA999999 		$4,166.07 1
4010 LR017328
DIFFERENTIAL - REAR
5.0L OHC SGDI SC V8 Petrol - AJ133, 6 Speed Auto Transmission ZF 6HP28, Rear Axle Locking Differential / Remanufactured Part / From: AA000001 / To: DA814631 		$2,547.92 1
4010 LR017317
DIFFERENTIAL - REAR
5.0L OHC SGDI SC V8 Petrol - AJ133, 6 Speed Auto Transmission ZF 6HP28, Rear Axle Open Style Differential / From: AA000001 / To: AA239657 		$2,380.64 1
4010 LR017322
DIFFERENTIAL - REAR
5.0L OHC SGDI SC V8 Petrol - AJ133, 6 Speed Auto Transmission ZF 6HP28, Rear Axle Locking Differential / New Part-Please Check For Reman Version / From: AA000001 / To: DA814631 		$4,166.07 1
4010 LR017328
DIFFERENTIAL - REAR
3.6L V8 32V DOHC EFi Diesel Lion, 6 Speed Auto ZF 6HP26 Steptronic, Rear Axle Locking Differential / Remanufactured Part / From: AA000001 / To: AA999999 		$2,547.92 1
4010 TVK500240
DIFFERENTIAL - REAR
5.0L OHC SGDI SC V8 Petrol - AJ133, 6 Speed Auto Transmission ZF 6HP28, Rear Axle Open Style Differential / New Part-Please Check For Reman Version / From: AA239658 / To: BA299272 		$2,380.64 1
4010 LR017317
DIFFERENTIAL - REAR
3.0L 24V DOHC V6 TC Diesel, 6 Speed Auto Transmission ZF 6HP28, Rear Axle Open Style Differential / From: AA000001 		$2,380.64 1
4010 LR017317
DIFFERENTIAL - REAR
5.0L OHC SGDI SC V8 Petrol - AJ133, 6 Speed Auto Transmission ZF 6HP28, Rear Axle Open Style Differential / From: BA299273 		$2,380.64 1
4010 LR029571
DIFFERENTIAL - REAR
3.0L 24V DOHC V6 TC Diesel, 8 Speed Auto Trans ZF 8HP70 4WD, Rear Axle Open Style Differential / From: CA000001 		$2,380.64 1
4010 LR029573
DIFFERENTIAL - REAR
3.0L 24V DOHC V6 TC Diesel, 8 Speed Auto Trans ZF 8HP70 4WD, Rear Axle Locking Differential / From: CA000001 / To: CA499999 		$4,162.69 1
4010 LR009439
DIFFERENTIAL - REAR
5.0L OHC SGDI SC V8 Petrol - AJ133, 6 Speed Auto Transmission ZF 6HP28, Rear Axle Open Style Differential / Remanufactured Part / From: AA239658 / To: BA299272 		$1,138.87 1
4010 LR059434
DIFFERENTIAL - REAR
3.0L 24V DOHC V6 TC Diesel, 8 Speed Auto Trans ZF 8HP70 4WD, Rear Axle Locking Differential / New Part-Please Check For Reman Version, TVK500200 Motor And Housing Not Included. Please Order Separately / From: CA500000 		$4,145.39 1
4010 LR059429
DIFFERENTIAL - REAR
5.0L OHC SGDI SC V8 Petrol - AJ133, 6 Speed Auto Transmission ZF 6HP28, Rear Axle Locking Differential / New Part-Please Check For Reman Version, TVK500200 Motor And Housing Not Included. Please Order Separately / From: DA814632 		$4,166.07 1
4010 LR059443
DIFFERENTIAL - REAR
5.0L OHC SGDI SC V8 Petrol - AJ133, 6 Speed Auto Transmission ZF 6HP28, Rear Axle Locking Differential / Remanufactured Part, TVK500200 Motor And Housing Not Included. Please Order Separately / From: DA814632 		$2,133.29 1
4010 LR059445
DIFFERENTIAL - REAR
3.0L 24V DOHC V6 TC Diesel, 8 Speed Auto Trans ZF 8HP70 4WD, Rear Axle Locking Differential / Remanufactured Part / From: CA000001 		$2,133.29 1
6730 TYB500110
PLUG - OIL DRAIN
Drain Plug, Plug - Oil Drain / From: AA000001 		$4.55 1
56615 TYB500060
PLUG - FILLER
Filler Plug / From: AA000001 		$3.53 1
122227A TVK500200
HOUSING - DIFF. LOCK SHIFT
Rear Axle Locking Differential / Includes Motor, New Part-Please Check For Reman Version / From: AA000001 		$1,635.15 1
122227A LR011036
HOUSING - DIFF. LOCK SHIFT
Rear Axle Locking Differential / Includes Motor, Remanufactured Part / From: AA000001 		$436.87 1
122227B LR041063
HOUSING-DIFFERENTIAL LOCKING MOTOR
Rear Axle Locking Differential / Less Motor / From: AA000001 		$552.31 1
906040 NSC500590
SENSOR - TRANS. FLUID TEMP. - TFT
Rear Axle Locking Differential / Sensor - Oil Temperature / From: AA000001
IN STOCK 		$66.65 1
