Air Suspension Compressor And Lines ('Amk' Compressor) ((V) Fromda768700)

Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI NA V8 Petrol]

Find Your Part

Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI NA V8 Petrol] - Air Suspension Compressor And Lines ('AMK' Compressor) ((V) FROMDA768700)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYP501100 BOLT $1.62 IN STOCK
Photo Part No Description Price (each) Stock
RYP500110 SCREW $5.03 To Order
Photo Part No Description Price (each) Stock
LR083229 SCREW $4.24 IN STOCK
Photo Part No Description Price (each) Stock
LR044016 COMPRESSOR - SUSPENSION LEVELLING $863.19 To Order
LR045444 COMPRESSOR - SUSPENSION LEVELLING $932.91 To Order
LR061888 COMPRESSOR - SUSPENSION LEVELLING $1,079.24 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR056050 TUBE - COMPRESSOR LINE $14.25 To Order
LR056050 TUBE - COMPRESSOR LINE $14.25 To Order
Photo Part No Description Price (each) Stock
LR060166 WIRING - REPAIR $72.83 To Order
LR078643 WIRING - REPAIR $40.66 To Order
Photo Part No Description Price (each) Stock
LR075760 VALVE - SOLENOID $33.81 To Order
Photo Part No Description Price (each) Stock
LR044034 BRACKET - COMPRESSOR $127.13 To Order
Photo Part No Description Price (each) Stock
LR044027 COVER - AIR SUSPENSION COMPRESSOR $134.68 To Order
Photo Part No Description Price (each) Stock
LR044026 COVER - AIR SUSPENSION COMPRESSOR $114.96 To Order
View All

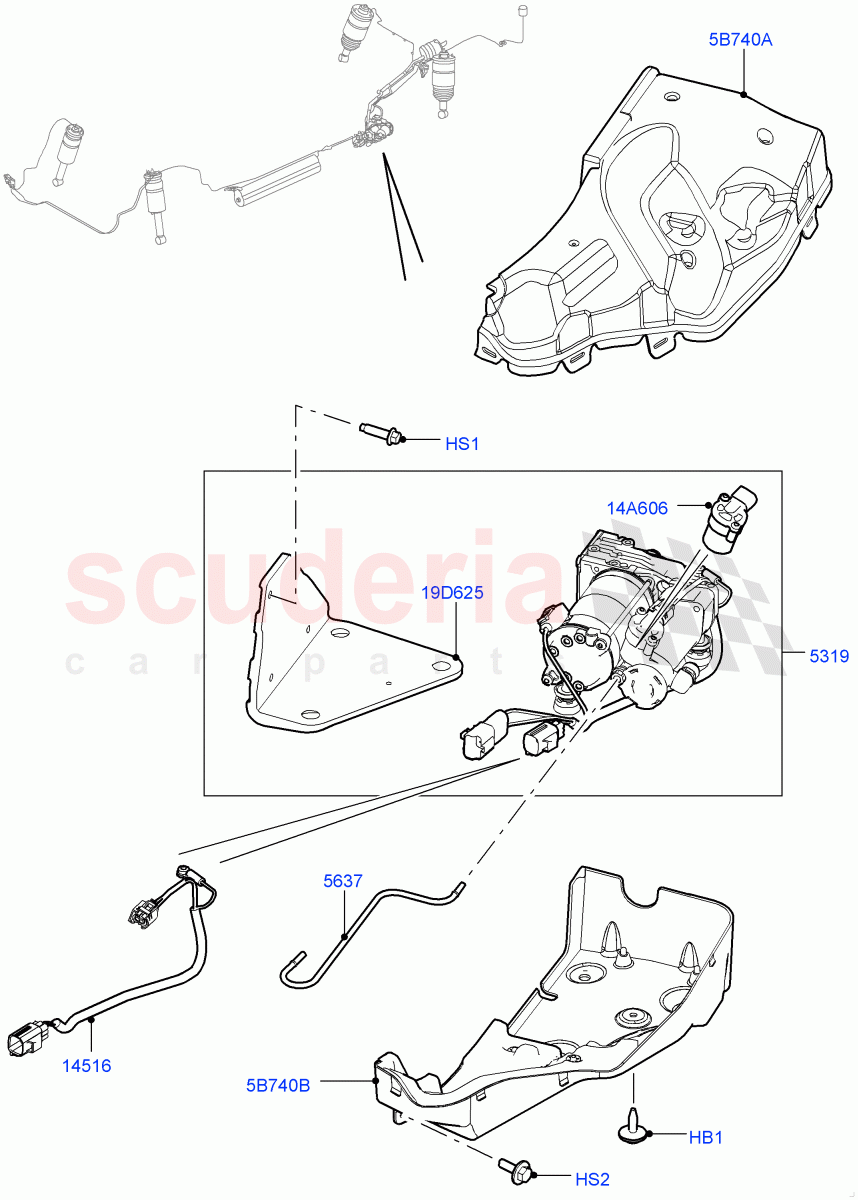

Air Suspension Compressor And Lines ('AMK' Compressor) ((V) FROMDA768700) of Land Rover Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI NA V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 RYP501100
BOLT
M6 X 23MM / From: DA768700
IN STOCK 		$1.62 1
HS1 RYP500110
SCREW
M8 X 25MM / From: DA768700 		$5.03 3
HS2 LR083229
SCREW
M6 x 18MM / From: DA768700
IN STOCK 		$4.24 2
5B740A LR044027
COVER - AIR SUSPENSION COMPRESSOR
Upper / From: DA768700 		$134.68 1
5B740B LR044026
COVER - AIR SUSPENSION COMPRESSOR
Lower / From: DA768700 		$114.96 1
14A606 LR075760
VALVE - SOLENOID
Solenoid - Air Suspension / From: DA800000 		$33.81 1
19D625 LR044034
BRACKET - COMPRESSOR
From: DA768700 		$127.13 1
5319 LR044016
COMPRESSOR - SUSPENSION LEVELLING
From: DA768700 / To: DA786425 		$863.19 1
5319 LR045444
COMPRESSOR - SUSPENSION LEVELLING
From: DA786426 / To: DA787425 		$932.91 1
5319 LR061888
COMPRESSOR - SUSPENSION LEVELLING
From: DA787426 / To: DA799999 		$1,079.24 1
5319 LR072539
COMPRESSOR - SUSPENSION LEVELLING
From: DA800000 / To: DA809999 		$1,124.44 1
5319 LR078650
COMPRESSOR - SUSPENSION LEVELING
From: DA810000 		$1,564.62 1
5637 LR056050
TUBE - COMPRESSOR LINE
High Pressure, Supply Unit To Reservoir Valve Block / From: DA768700 / To: DA813999 		$14.25 1
5637 LR056050
TUBE - COMPRESSOR LINE
High Pressure, Supply Unit To Reservoir Valve Block / From: DA814000 		$14.25 1
14516 LR060166
WIRING - REPAIR
Thermistor Harness Repair / From: DA768700 / To: DA778699 		$72.83 1
14516 LR078643
WIRING - REPAIR
Thermistor Harness Repair / From: DA778700 		$40.66 1
