Air Suspension Compressor And Lines (Service Only, Compressor Assy) ((V) Fromaa000001, (V)...

Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI NA V8 Petrol]

Find Your Part

Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI NA V8 Petrol] - Air Suspension Compressor And Lines (Service Only, Compressor Assy) ((V) FROMAA000001, (V)...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYP501100 BOLT $1.63 IN STOCK
Photo Part No Description Price (each) Stock
LR044836 CONNECTOR - VALVE BLOCK TO PIPE $24.72 IN STOCK
Photo Part No Description Price (each) Stock
RYP500110 SCREW $5.04 To Order
Photo Part No Description Price (each) Stock
LR083229 SCREW $4.25 IN STOCK
Photo Part No Description Price (each) Stock
LR037068 CONNECTOR - PIPE $14.47 To Order
Photo Part No Description Price (each) Stock
LR044016 COMPRESSOR - SUSPENSION LEVELLING $865.18 To Order
Photo Part No Description Price (each) Stock
LR060166 WIRING - REPAIR $73.00 To Order
Photo Part No Description Price (each) Stock
LR045251 KIT - COMPRESSOR $1,282.11 To Order
LR061663 KIT - COMPRESSOR $1,161.58 To Order
LR072537 KIT - COMPRESSOR $1,242.95 To Order
Photo Part No Description Price (each) Stock
LR056050 TUBE - COMPRESSOR LINE $14.28 To Order
Photo Part No Description Price (each) Stock
LR045253 TUBE - AIR COMPRESSOR $92.55 To Order
Photo Part No Description Price (each) Stock
LR045252 TUBE - AIR COMPRESSOR $94.10 To Order
Photo Part No Description Price (each) Stock
YWB500220 RELAY $22.55 To Order
Photo Part No Description Price (each) Stock
LR044027 COVER - AIR SUSPENSION COMPRESSOR $134.99 To Order
Photo Part No Description Price (each) Stock
LR044026 COVER - AIR SUSPENSION COMPRESSOR $115.22 To Order
View All

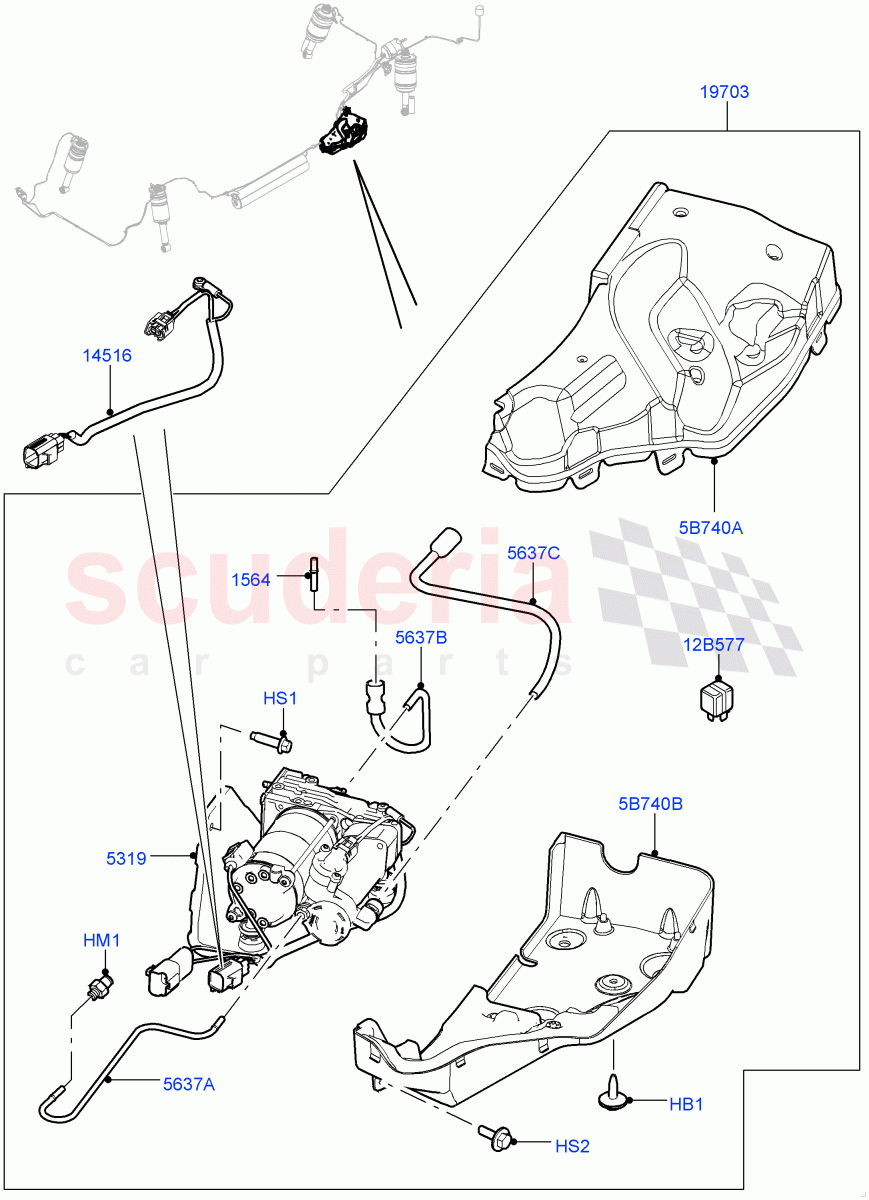

Air Suspension Compressor And Lines (Service Only, Compressor Assy) ((V) FROMAA000001, (V) TODA768550) of Land Rover Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI NA V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 RYP501100
BOLT
M6 X 23MM / From: AA000001
IN STOCK 		$1.63 1
HM1 LR044836
CONNECTOR - VALVE BLOCK TO PIPE
6MM, Connector / From: AA000001
IN STOCK 		$24.72 1
HS1 RYP500110
SCREW
M8 X 25MM / From: AA000001 		$5.04 3
HS2 LR083229
SCREW
M6 x 18MM / From: AA000001
IN STOCK 		$4.25 2
5B740A LR044027
COVER - AIR SUSPENSION COMPRESSOR
Upper / From: AA000001 		$134.99 1
5B740B LR044026
COVER - AIR SUSPENSION COMPRESSOR
Lower / From: AA000001 		$115.22 1
12B577 YWB500220
RELAY
4 Blade Terminal, 70 AMP, Grey, Mini, Power, Tyco / From: AA000001 		$22.55 1
1564 LR037068
CONNECTOR - PIPE
Air Suspension Lines / From: AA000001 		$14.47 1
5319 LR044016
COMPRESSOR - SUSPENSION LEVELLING
From: AA000001 		$865.18 1
5637A LR056050
TUBE - COMPRESSOR LINE
Air Compressor To Valve Block, High Pressure / From: AA000001 		$14.28 1
5637B LR045253
TUBE - AIR COMPRESSOR
Inlet / From: AA000001 		$92.55 1
5637C LR045252
TUBE - AIR COMPRESSOR
Exhaust / From: AA000001 		$94.10 1
14516 LR060166
WIRING - REPAIR
Thermistor Harness Repair / From: AA000001 		$73.00 1
19703 LR045251
KIT - COMPRESSOR
AMK Compressor Requires New Software Installed, Includes Mounting Bracket, Please Refer To Technical Service Bulletin LTB00420, With Pipes / From: AA000001 / To: DA700000 		$1,282.11 1
19703 LR061663
KIT - COMPRESSOR
Includes Mounting Bracket, With Pipes / From: DA700001 / To: DA750000 		$1,161.58 1
19703 LR072537
KIT - COMPRESSOR
Includes Mounting Bracket, With Pipes / From: DA750001 		$1,242.95 1
