Land Rover Range Rover Sport (2014+) [5.0 OHC SGDI SC V8 Petrol] - Fuel Tank & Related Parts (5.0L OHC SGDI SC V8 Petrol - AJ133, 5.0 Petrol AJ133 DOHC CDA, 5.0L P...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR034249 BOLT AND WASHER - HEX.HEAD $2.89 IN STOCK
Photo Part No Description Price (each) Stock
LR037935 BOLT AND WASHER - HEX.HEAD $2.39 IN STOCK
Photo Part No Description Price (each) Stock
LR044902 CLIP - HOSE $2.49 To Order
Photo Part No Description Price (each) Stock
LR094032 CLIP - HOSE $4.40 To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.46 IN STOCK
Photo Part No Description Price (each) Stock
AYP500110 SCREW $0.96 IN STOCK
Photo Part No Description Price (each) Stock
RYG500820 SCREW AND WASHER $0.66 To Order
Photo Part No Description Price (each) Stock
FS105166 SCREW $0.66 IN STOCK
Photo Part No Description Price (each) Stock
WJ110007L WASHER $0.70 IN STOCK
Photo Part No Description Price (each) Stock
LR036645 TANK - FUEL $1,362.33 To Order
LR079270 TANK - FUEL $1,362.33 To Order
LR058292 TANK-FUEL $1,362.33 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR181511 CAP - FUEL TANK FILLER $39.22 To Order
LR053665 CAP - FUEL TANK FILLER $34.78 To Order
LR062454 CAP - FUEL TANK FILLER $41.98 To Order
...and 4 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR051671 PIPE - FUEL FILLER $224.50 To Order
LR051674 PIPE - FUEL FILLER $222.50 To Order
LR062455 PIPE - FUEL FILLER $171.92 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR051676 HOSE - FILLER PIPE $224.50 To Order
LR051675 HOSE - FILLER PIPE $224.50 To Order
Photo Part No Description Price (each) Stock
LR037481 TUBE - FUEL VAPOUR $70.68 To Order
LR053462 TUBE - FUEL VAPOUR $70.68 To Order
Photo Part No Description Price (each) Stock
LR117476 GASKET $10.53 IN STOCK
Photo Part No Description Price (each) Stock
LR025789 FOAM PAD - ENERGY ABSORBING $23.31 To Order
Photo Part No Description Price (each) Stock
LR048891 COVER - FUEL SENDER $189.26 To Order
Photo Part No Description Price (each) Stock
LR048108 SHIELD - FUEL TANK $668.99 To Order
LR054812 SHIELD - FUEL TANK $673.95 To Order
Photo Part No Description Price (each) Stock
LR049224 TUBE - FUEL $287.63 To Order
LR086522 TUBE - FUEL $285.65 To Order
Photo Part No Description Price (each) Stock
LR041099 RING - RETAINING $30.17 To Order
LR079272 RING - RETAINING $93.25 To Order
LR087019 RING - RETAINING $31.46 To Order
Photo Part No Description Price (each) Stock
LR015356 SENSOR - FUEL INJECTOR PRESSURE $110.75 To Order
View All

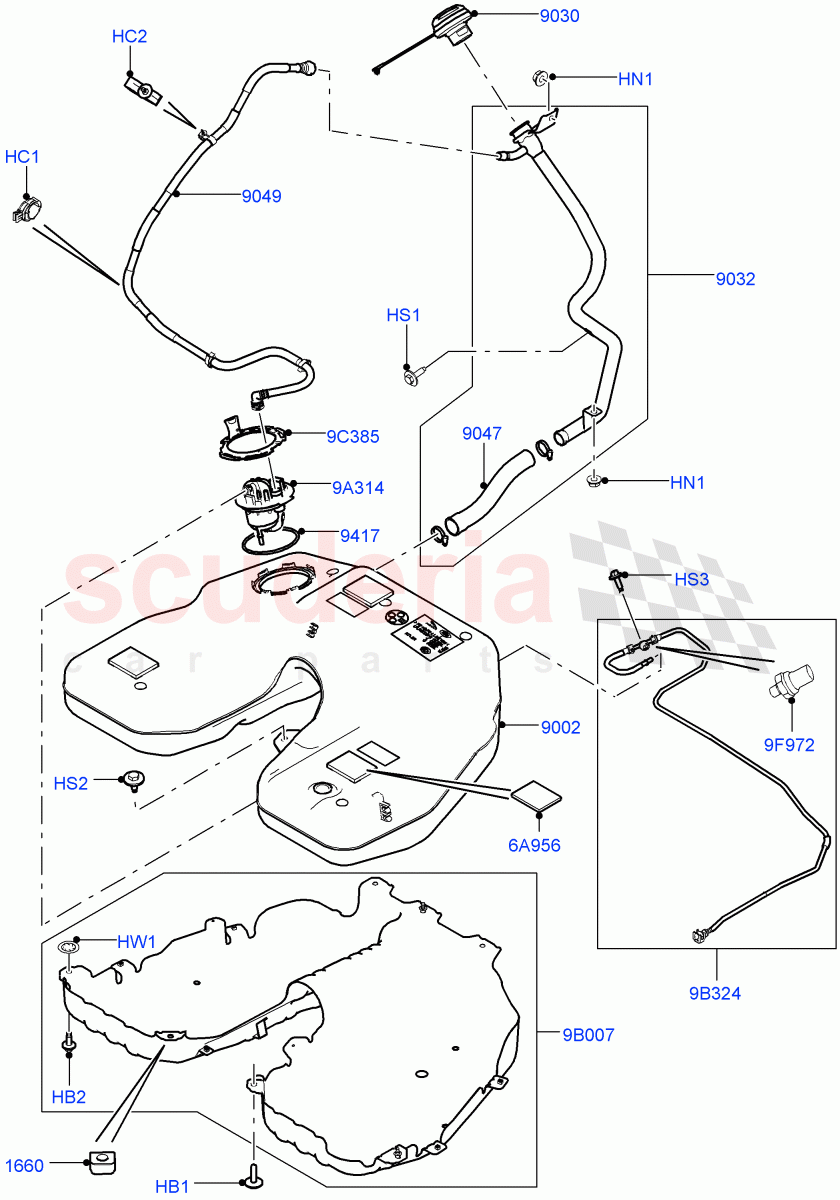

Fuel Tank & Related Parts (5.0L OHC SGDI SC V8 Petrol - AJ133, 5.0 Petrol AJ133 DOHC CDA, 5.0L P AJ133 DOHC CDA S/C Enhanced) of Land Rover Land Rover Range Rover Sport (2014+) [5.0 OHC SGDI SC V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR034249
BOLT AND WASHER - HEX.HEAD
Hexagonal Head, M10 x 37MM
IN STOCK 		$2.89 4
HB2 LR037935
BOLT AND WASHER - HEX.HEAD
Hexagonal Head, M10 X 25MM
IN STOCK 		$2.39 3
HC1 LR044902
CLIP - HOSE
10-25 X 1.5-3, Plastic 		$2.49 1
HC2 LR094032
CLIP - HOSE
Plastic, Upper 		$4.40 2
HN1 FN106046
NUT - HEX.
Hexagonal Head, M6
IN STOCK 		$1.46 2
HS1 AYP500110
SCREW
Bolt And Washer, Hexagonal Head, M6 X 20MM
IN STOCK 		$0.96 2
HS2 RYG500820
SCREW AND WASHER
Hexagonal Head, M6 X 16MM 		$0.66 2
HS3 FS105166
SCREW
HEX Flange, M5 X 16MM
IN STOCK 		$0.66 1
HW1 WJ110007L
WASHER
10MM, Fuel Tank, Shield
IN STOCK 		$0.70 3
6A956 LR025789
FOAM PAD - ENERGY ABSORBING
100mm x 80mm x 10mm 		$23.31 3
9A314 LR048891
COVER - FUEL SENDER
To: GA999999 		$189.26 1
9B007 LR048108
SHIELD - FUEL TANK
Protective / To: EA340169 		$668.99 1
9B007 LR054812
SHIELD - FUEL TANK
Protective / From: EA340170 		$673.95 1
9B324 LR049224
TUBE - FUEL
Feed / To: GA999999 		$287.63 1
9B324 LR086522
TUBE - FUEL
Feed / From: HA000001 		$285.65 1
9C385 LR041099
RING - RETAINING
Cover / To: FA999999 		$30.17 1
9C385 LR079272
RING - RETAINING
Cover / From: GA000001 / To: GA999999 		$93.25 1
9C385 LR087019
RING - RETAINING
Cover / From: HA000001 		$31.46 1
9F972 LR015356
SENSOR - FUEL INJECTOR PRESSURE 		$110.75 1
9002 LR036645
TANK - FUEL
To: EA340169 		$1,362.33 1
9002 LR079270
TANK - FUEL
From: FA541965 / To: GA999999 		$1,362.33 1
9002 LR058292
TANK-FUEL
From: EA340170 / To: EA503680 		$1,362.33 1
9002 LR069000
TANK - FUEL
From: EA503681 / To: FA541964 		$1,362.33 1
9002 LR086524
TANK - FUEL
From: HA000001 		$1,362.33 1
9030 LR181511
CAP - FUEL TANK FILLER
To: EA309009 		$39.22 1
9030 LR053665
CAP - FUEL TANK FILLER
Fuel Tank Filler Neck - Unleaded / From: EA309010 / To: MA758030 		$34.78 1
9030 LR062454
CAP - FUEL TANK FILLER
Fuel Tank Filler Neck - DMTL / From: FA000001 / To: GA101646 		$41.98 1
9030 202123475
CAP - FUEL TANK FILLER
Narrow Filler Neck - Unleaded / From: GA101647 / To: MA755911 		$40.65 1
9030 LR053664
CAP - FUEL TANK FILLER
(+)"KOR", Flex Fuel - E100 / From: EA314014 / To: EA999999 		$37.11 1
9030 LR138720
CAP - FUEL TANK FILLER
Narrow Filler Neck - Unleaded / From: MA755912 		$39.20 1
9030 LR138718
CAP - FUEL TANK FILLER
Fuel Tank Filler Neck - Unleaded / From: MA758031 		$39.20 1
9032 LR051671
PIPE - FUEL FILLER
Fuel Tank Filler Neck - Unleaded 		$224.50 1
9032 LR051674
PIPE - FUEL FILLER
Narrow Filler Neck - Unleaded / To: EA999999 		$222.50 1
9032 LR062455
PIPE - FUEL FILLER
Narrow Filler Neck - Unleaded / From: FA000001 / To: HA150268 		$171.92 1
9032 LR095804
PIPE - FUEL FILLER
Fuel Tank Filler Neck - DMTL / From: HA150269 		$337.57 1
9047 LR051676
HOSE - FILLER PIPE
Fuel Tank Filler Neck - Unleaded 		$224.50 1
9047 LR051675
HOSE - FILLER PIPE
Narrow Filler Neck - Unleaded 		$224.50 1
9049 LR037481
TUBE - FUEL VAPOUR
Fuel Tank Filler Neck - Unleaded / To: EA307068 		$70.68 1
9049 LR053462
TUBE - FUEL VAPOUR
Fuel Tank Filler Neck - Unleaded / From: EA307069 		$70.68 1
9417 LR117476
GASKET
Cover, O-Ring
IN STOCK 		$10.53 1
