Name: Fuel Lines (Rear) (5.0L OHC SGDI SC V8 Petrol - AJ133, Pet Tank W/O Leak Det - Std Filter, 5.0 Petrol AJ133 DOHC CDA, 5.0L P AJ133 DOHC CDA S/C Enhanced) ((V) FROMKA000001)
Rating: 4.4 (1 reviews)

Fuel Lines (Rear) (5.0L OHC SGDI SC V8 Petrol - AJ133, Pet Tank W/O Leak Det - Std Filter, 5.0 Petrol AJ133 DOHC CDA, 5.0L P AJ133 DOHC CDA S/C Enhanced) ((V) FROMKA000001) of Land Rover Land Rover Range Rover Sport (2014+) [5.0 OHC SGDI SC V8 Petrol]

View All

Land Rover Range Rover Sport (2014+) [5.0 OHC SGDI SC V8 Petrol] - Fuel Lines (Rear) (5.0L OHC SGDI SC V8 Petrol - AJ133, Pet Tank W/O Leak Det - Std Filter, 5.0...

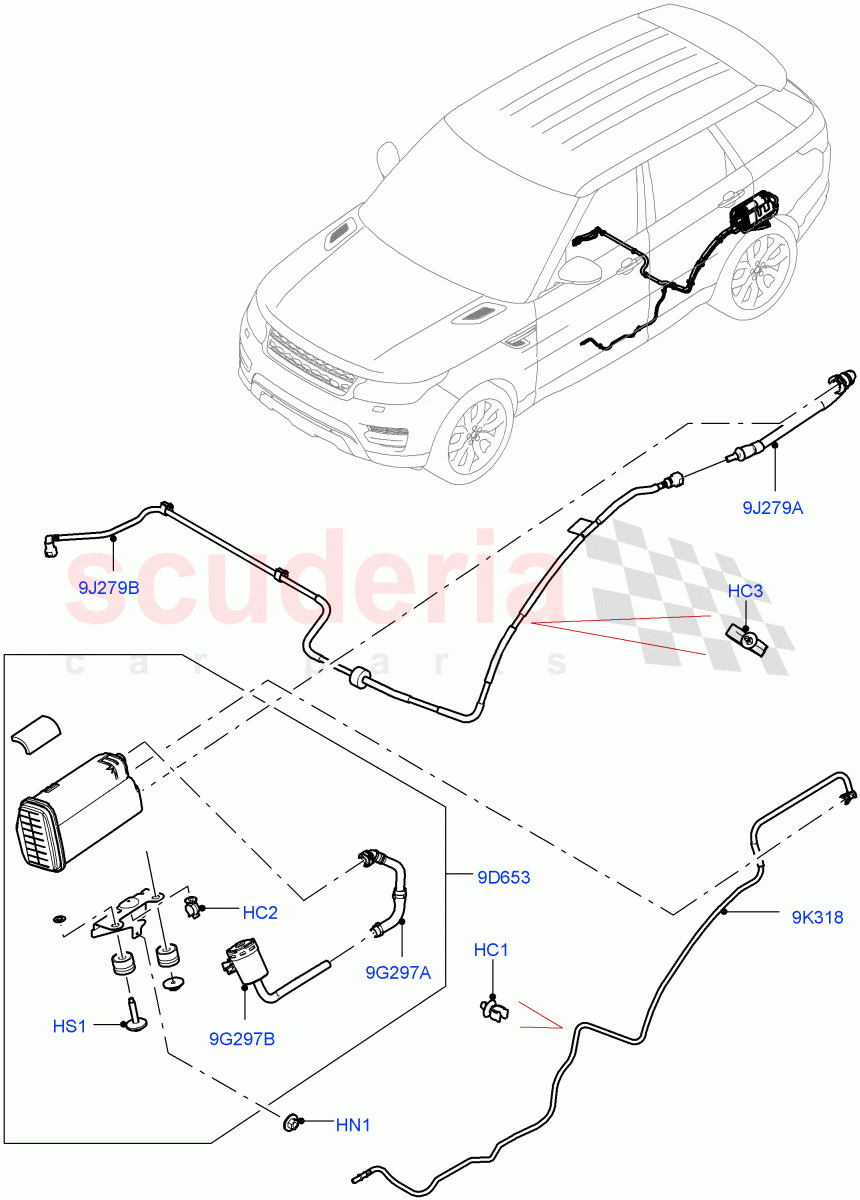

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR004596	CLIP	$1.69	To Order

Photo	Part No	Description	Price (each)	Stock
	PEK500120	CLIP - HOSE	$2.75	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094032	CLIP - HOSE	$4.40	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500310	NUT AND WASHER - HEX.	$3.10	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYP501050	SCREW - PAN - TORX	$1.46	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082334	RESERVOIR - FUEL VAPOUR SYSTEM	$595.80	To Order
	LR161594	RESERVOIR - FUEL VAPOUR SYSTEM	$556.45	To Order

Photo	Part No	Description	Price (each)	Stock
	LR061015	TUBE - FUEL VAPOUR	$37.00	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082335	HOSE - FUEL	$49.95	To Order

Photo	Part No	Description	Price (each)	Stock
	LR079268	HOSE - FUEL	$68.92	To Order

Photo	Part No	Description	Price (each)	Stock
	LR120590	TUBE - VENTILATION	$39.98	To Order

Photo	Part No	Description	Price (each)	Stock
	LR086516	TUBE - VENTILATION	$64.09	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HC1	LR004596	CLIP	LR004596 CLIP 12 x 7.8X.8/4, Plastic / From: KA000001	$1.69	3
HC2	PEK500120	CLIP - HOSE	PEK500120 CLIP - HOSE Tube Support / From: KA000001	$2.75	1
HC3	LR094032	CLIP - HOSE	LR094032 CLIP - HOSE Plastic / From: KA000001	$4.40	2
HN1	RYH500310	NUT AND WASHER - HEX. IN STOCK	RYH500310 NUT AND WASHER - HEX. Hexagonal Head, M6, Nut And Washer / From: KA000001 IN STOCK	$3.10	2
HS1	RYP501050	SCREW - PAN - TORX	RYP501050 SCREW - PAN - TORX M6 X 25MM, Torx / From: KA000001	$1.46	2
9D653	LR082334	RESERVOIR - FUEL VAPOUR SYSTEM	LR082334 RESERVOIR - FUEL VAPOUR SYSTEM Charcoal Cannister, With Bracket / From: KA000001 / To: NA798225	$595.80	1
9D653	LR161594	RESERVOIR - FUEL VAPOUR SYSTEM	LR161594 RESERVOIR - FUEL VAPOUR SYSTEM Charcoal Cannister, With Bracket / From: NA798226	$556.45	1
9G297A	LR082335	HOSE - FUEL	LR082335 HOSE - FUEL Canister vent / From: KA000001	$49.95	1
9G297B	LR079268	HOSE - FUEL	LR079268 HOSE - FUEL Canister vent / From: KA000001	$68.92	1
9J279A	LR120590	TUBE - VENTILATION	LR120590 TUBE - VENTILATION From: KA000001	$39.98	1
9J279B	LR086516	TUBE - VENTILATION	LR086516 TUBE - VENTILATION Inlet Tube, Purge Line From Fuel Tank To Charcoal Canister / From: KA000001	$64.09	1
9K318	LR061015	TUBE - FUEL VAPOUR	LR061015 TUBE - FUEL VAPOUR Fuel Vapor Cannister Purge - Outlet / From: KA000001	$37.00	1

Fuel Lines (Rear) (5.0L Ohc Sgdi Sc V8 Petrol - Aj133, Pet Tank W/O Leak Det - Std Filter, 5.0...

Land Rover Range Rover Sport (2014+) [5.0 OHC SGDI SC V8 Petrol]

Land Rover Range Rover Sport (2014+) [5.0 OHC SGDI SC V8 Petrol] - Fuel Lines (Rear) (5.0L OHC SGDI SC V8 Petrol - AJ133, Pet Tank W/O Leak Det - Std Filter, 5.0...

Add to Shopping Cart
