Name: Fuel Lines (5.0L P AJ133 DOHC CDA S/C Enhanced, Fuel Tank Filler Neck - DMTL, 5.0L OHC SGDI SC V8 Petrol - AJ133) ((V) FROMHA000001)
Rating: 4.7 (1 reviews)

Fuel Lines (5.0L P AJ133 DOHC CDA S/C Enhanced, Fuel Tank Filler Neck - DMTL, 5.0L OHC SGDI SC V8 Petrol - AJ133) ((V) FROMHA000001) of Land Rover Land Rover Range Rover Sport (2014+) [5.0 OHC SGDI SC V8 Petrol]

View All

Land Rover Range Rover Sport (2014+) [5.0 OHC SGDI SC V8 Petrol] - Fuel Lines (5.0L P AJ133 DOHC CDA S/C Enhanced, Fuel Tank Filler Neck - DMTL, 5.0L OHC SGDI SC V8...

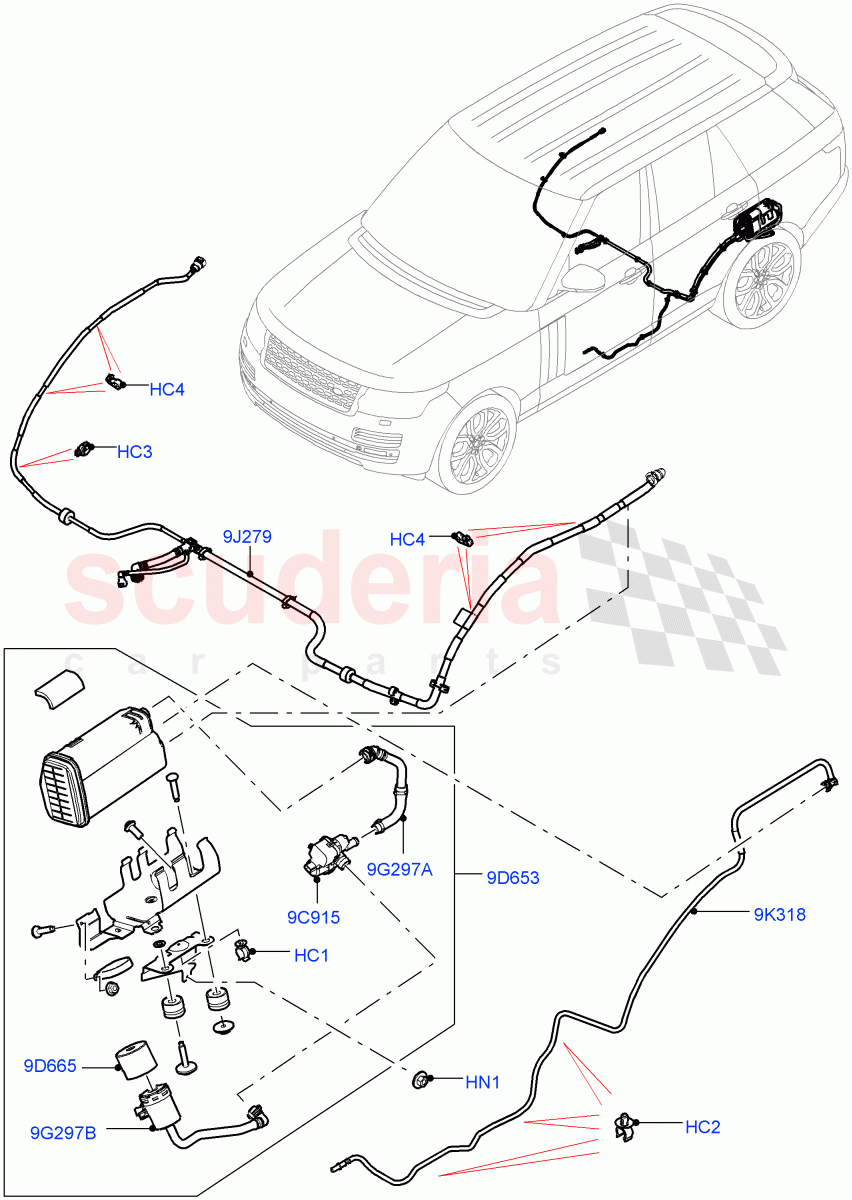

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	PEK500120	CLIP - HOSE	$2.75	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004596	CLIP	$1.69	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044902	CLIP - HOSE	$2.49	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094032	CLIP - HOSE	$4.40	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500310	NUT AND WASHER - HEX.	$3.10	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR174757	VALVE - CONTROL	$191.90	To Order

Photo	Part No	Description	Price (each)	Stock
	LR068424	RESERVOIR - FUEL VAPOUR SYSTEM	$381.36	To Order
	LR155135	RESERVOIR - FUEL VAPOUR SYSTEM	$372.38	To Order

Photo	Part No	Description	Price (each)	Stock
	LR155089	BRACKET	$11.00	To Order

Photo	Part No	Description	Price (each)	Stock
	LR086515	TUBE - VENTILATION	$64.99	To Order
	LR173147	TUBE - VENTILATION	$67.44	To Order

Photo	Part No	Description	Price (each)	Stock
	LR061015	TUBE - FUEL VAPOUR	$37.00	To Order

Photo	Part No	Description	Price (each)	Stock
	LR060302	HOSE - FUEL	$87.15	To Order

Photo	Part No	Description	Price (each)	Stock
	LR037482	HOSE - FUEL VAPOUR	$64.59	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HC1	PEK500120	CLIP - HOSE	PEK500120 CLIP - HOSE Tube Support / From: HA000001	$2.75	1
HC2	LR004596	CLIP	LR004596 CLIP 12 x 7.8X.8/4, Plastic / From: HA000001	$1.69	3
HC3	LR044902	CLIP - HOSE	LR044902 CLIP - HOSE 10-25 X 1.5-3, Plastic / From: HA000001	$2.49	1
HC4	LR094032	CLIP - HOSE	LR094032 CLIP - HOSE Plastic / From: HA000001	$4.40	4
HN1	RYH500310	NUT AND WASHER - HEX. IN STOCK	RYH500310 NUT AND WASHER - HEX. Hexagonal Head, M6, Nut And Washer / From: HA000001 IN STOCK	$3.10	2
9C915	LR174757	VALVE - CONTROL	LR174757 VALVE - CONTROL Pump - Diagnostic Monitoring Tank Leakage / From: HA000001	$191.90	1
9D653	LR068424	RESERVOIR - FUEL VAPOUR SYSTEM	LR068424 RESERVOIR - FUEL VAPOUR SYSTEM Charcoal Cannister, With Bracket / From: HA000001 / To: MA792919	$381.36	1
9D653	LR155135	RESERVOIR - FUEL VAPOUR SYSTEM	LR155135 RESERVOIR - FUEL VAPOUR SYSTEM Charcoal Cannister, With Bracket / From: MA792920	$372.38	1
9D665	LR155089	BRACKET	LR155089 BRACKET From: MA792920	$11.00	1
9G297A	LR060302	HOSE - FUEL	LR060302 HOSE - FUEL Canister vent / From: HA000001	$87.15	1
9G297B	LR037482	HOSE - FUEL VAPOUR	LR037482 HOSE - FUEL VAPOUR Canister vent / From: HA000001	$64.59	1
9J279	LR086515	TUBE - VENTILATION	LR086515 TUBE - VENTILATION Fuel Tank Ventilation Pipe, Purge Line From Fuel Tank To Charcoal Canister / From: HA000001 / To: NA223734	$64.99	1
9J279	LR173147	TUBE - VENTILATION	LR173147 TUBE - VENTILATION Fuel Tank Ventilation Pipe, Purge Line From Fuel Tank To Charcoal Canister / From: NA223735	$67.44	1
9K318	LR061015	TUBE - FUEL VAPOUR	LR061015 TUBE - FUEL VAPOUR Fuel Vapor Cannister Purge - Outlet / From: HA000001	$37.00	1
